10 SB-110-2 RUS
DL
SL
1/8''-27 NPTF
11
5
Ø22 (7/8'')
1/4''-18 NPTF
7
1/8''-27 NPTF
Ø17
100%
CR4
25%
CR3
50%
CR2
75%
CR1
1/8''-27 NPTF
2 (LP)
13 10 12 14 15
15
14 12
16
7/16''-20 UNF
13
1/8''-27 NPTF
3
4 ECO
Ø28 (1 1/8'')
[LI Ø10 3/8'']
1a (HP)
1/4''-18 NPTF
6
1/8''-27 NPTF
1 (HP)

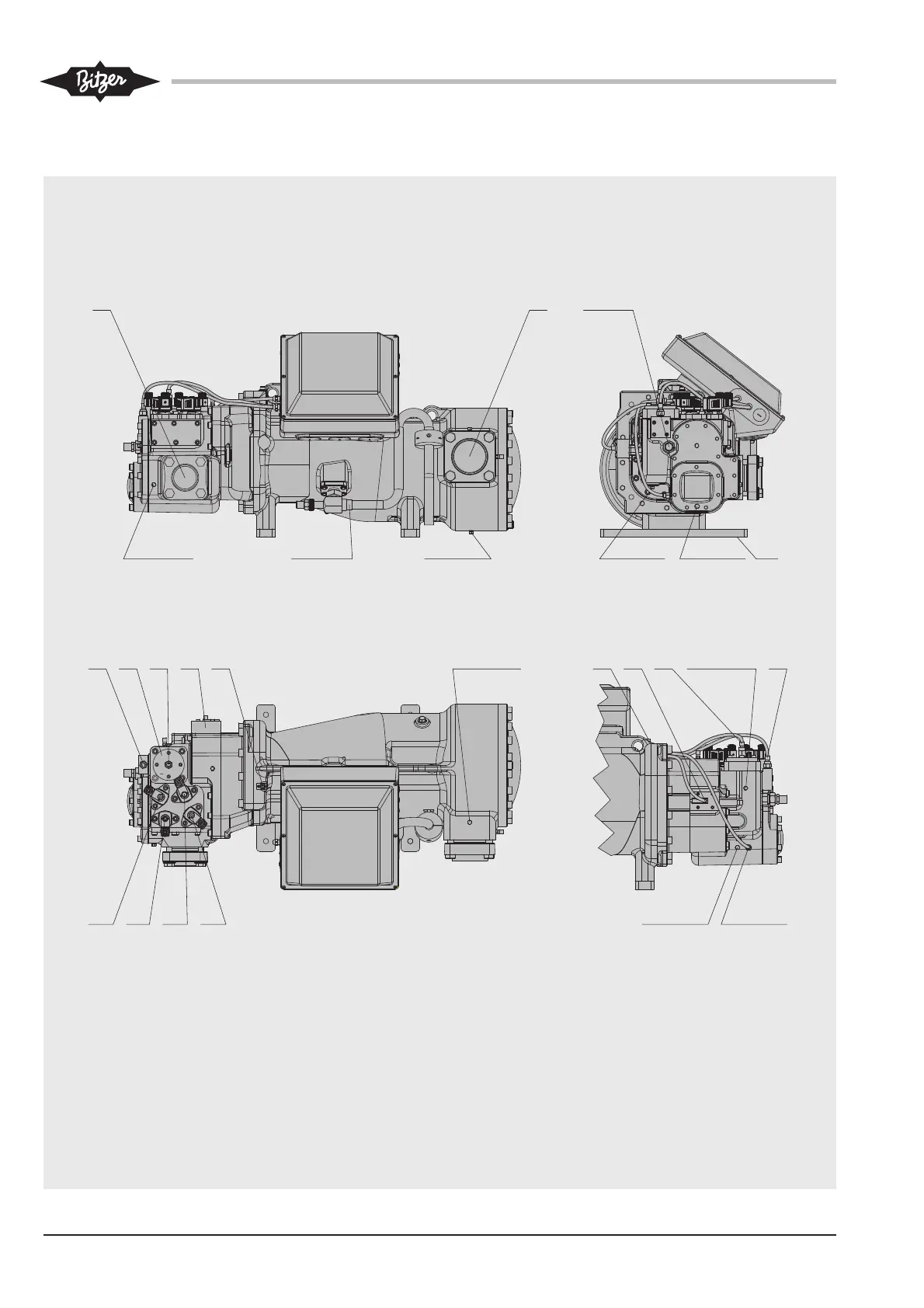

Anschlüsse Connections
Пpисоединения
HS.8551 .. HS.8571
