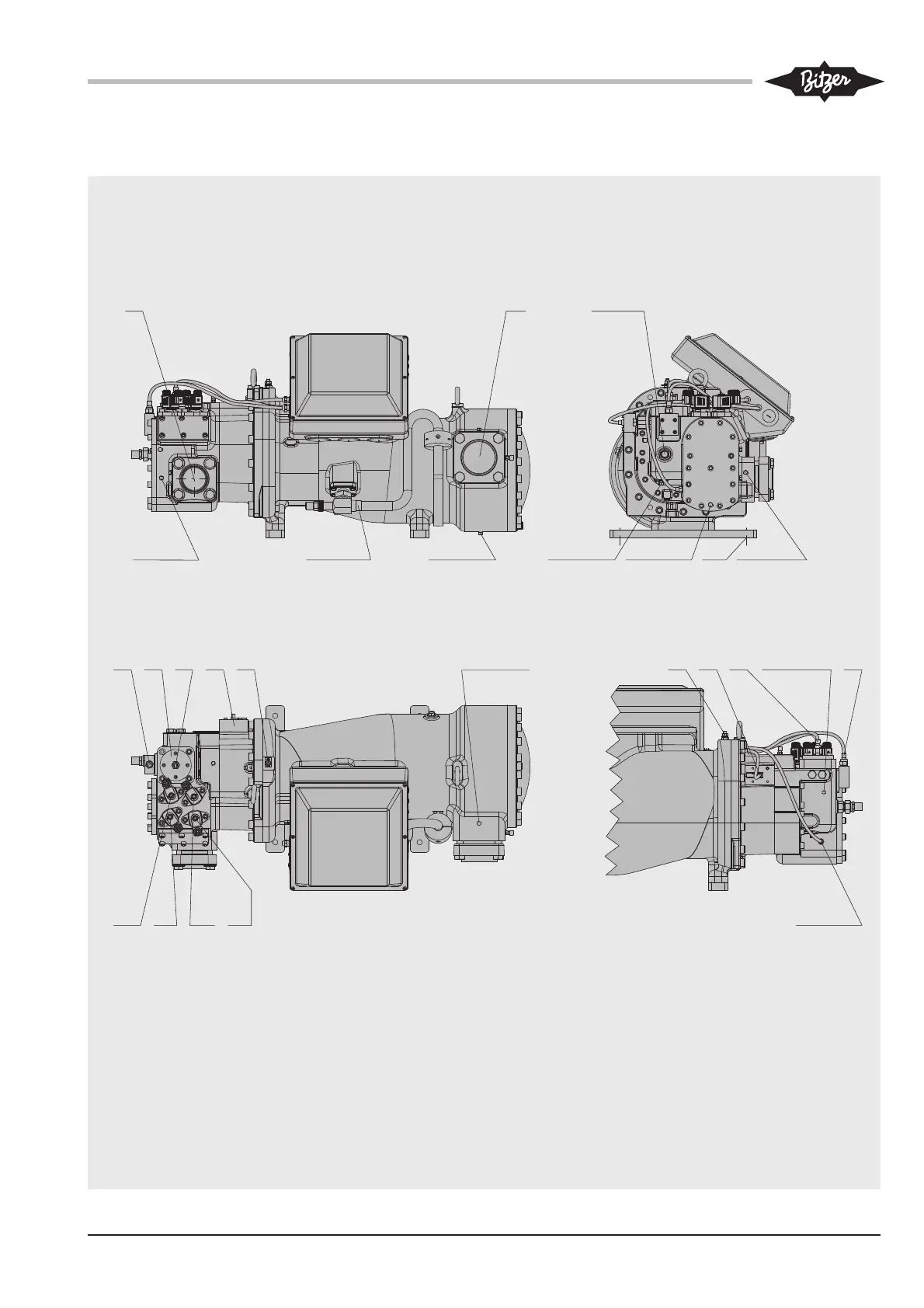

Anschlüsse (Forts.) Connections (cont.)
Пpисоединения (пpодолжение)
1/8''-27 NPTF
1a (HP)
1/4''-18 NPTF
6
1/4''-18 NPTF
7
DL
SL
4 ECO
1/8''-27 NPTF
11
5
Ø22 (7/8'')
Ø17
100%
CR4
25%
CR3
50%
CR2
75%
CR1
1/8''-27 NPTF
2 (LP)
13 10 12 14 15 15
14 12
16
7/16''-20 UNF
13
1/8''-27 NPTF
3
Ø28 (1 1/8'')
[LI Ø10 3/8'']
1/8''-27 NPTF
1 (HP)
HSN8591
