BIXOLON SPP-R200III Bluetooth Connection Manual

Rev. 1.00
- 8 -
SPP-R200III
5. Troubleshooting
5-1 Please follow the guide below if Bluetooth is not searched on iOS device.
1) Perform self test to check the printer is set as iOS mode.
2) Check whether printer is connected to other iOS device. Printer is not able to be
found on your iOS device if it is connected to other iOS device. If STATUS LED
blinks when you press Feed button, it means that printer is connected to other iOS
device.
You need to disconnect the connection to other iOS device, or turn on the printer
again while the paper cover is opened.
* Printer is automatically connected to last iOS device which was connected in iOS
mode. But it does not make a connection to any device, if user turns it on while the
paper cover of it is opened.

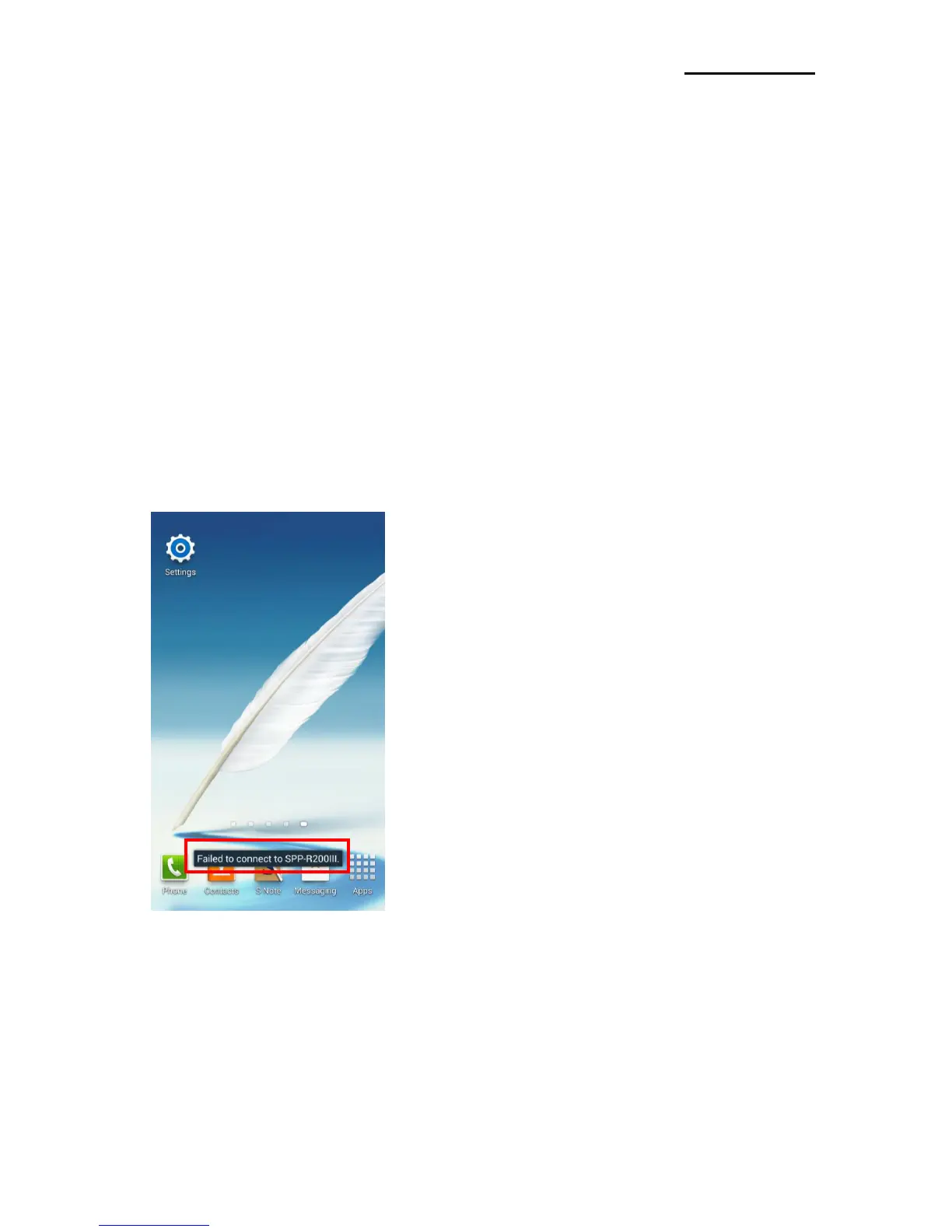

5-2 Refer to this, if you see the pop-up message as below.
1) “Failed to connect to SPP-R200III”.
2) The “Failed to connect” message might appear on a screen, since NFC Auto pairing
merely supports Bluetooth paring and does not allow device to device
communication. However, it operates properly.

BIXOLON SPP-R200III Specifications

General

Ethernet LAN	No
Bluetooth	Yes
Bluetooth version	3.0+HS
Serial ports quantity	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Connectivity technology	Wired
Type	Mobile printer
Print technology	Direct thermal
Maximum resolution	203 x 203 DPI
Product color	Black
Flash memory	32 MB
RAM capacity	0.064 GB
Built-in barcodes	1D, 2D, AZTECCODE, CODABAR (NW-7), Code 39, Code 93, Code-128 Codabar Library, Data Matrix, EAN13, EAN8, GS1 DataBar, ITF, MaxiCode, Micro QR Code, PDF417, QR Code, UPC-A, UPC-E
Media thickness	0.07 ± 0.005 mm
Maximum roll diameter	40 mm
Maximum printing width	48 mm
International Protection (IP) code	IP43
Battery voltage	7.4 V
Battery recharge time	2.5 h
Storage temperature (T-T)	30 - 70 °C
Operating temperature (T-T)	-15 - 50 °C
Operating relative humidity (H-H)	10 - 80 %
Mobile operating systems supported	Android, iOS

Weight and Dimensions

Depth	43.6 mm
Width	79.5 mm
Height	126.7 mm
Weight	228 g
