BIXOLON SRP-380 User Manual

Rev. 1.00
- 11 -
SRP-380/382

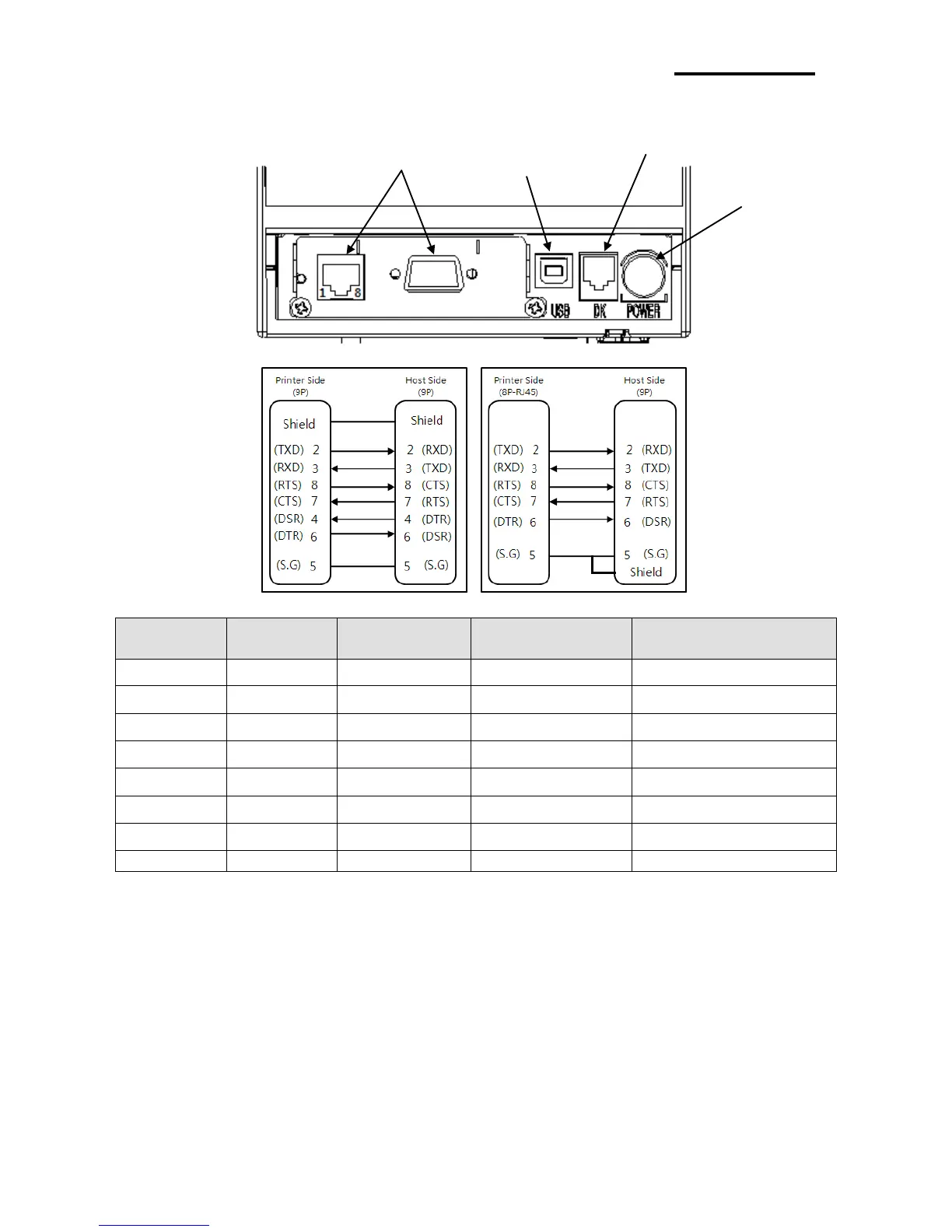

1-2-3-2 Dual Interface
DSUB 9pin
Pin No.
RJ45
Pin No.
Signal name
Direction
Function
FG
FG
-
Frame Ground
2
2
TxD
Output
Transmit Data
3
3
RxD
Input
Receive Data
4
8
RTS
Output
Ready To Send
5
7
CTS
Input
Clear To Send
6
-
DSR
Input
Data Set Ready
7
5
SG
-
Signal Ground
20
6
DTR
Output
Data Terminal Ready
Power
Connector
Serial Cable Connector
Drawer Kick-out
Connector
USB Connector
