BIXOLON SRP-380 User Manual

Rev. 1.00
- 9 -
SRP-380/382
1-2 Interface
Connect the printer to the host computer using the right interface cable that complies with
the specifications of the interface. The drawer to be used with the printer should meet the
specifications of the printer.
※ Caution
Before connecting any cables, make sure that both the printer and the host are
turned off.
1-2-1 USB Interface
Pin No.
Signal Name
Designation (Color)
Function
Shell
Shield
Drain Cable
Frame Ground
1
VBUS
RED
Host Power
2
D-
WHITE
Data Line (D-)
3
D+
GREEN
Data Line (D+)
4
GND
BLACK
Signal Ground
1-2-2 Ethernet Interface
Pin No.
Signal Name
Designation (Color)
Function
1
TD+
WHITE ORANGE
Transmit +
2
TD-
ORANGE
Transmit -
3
TCT
WHITE GREEN
Receive +
4
NC
BLUE
-
5
NC
WHITE BLUE
-
6
RCT
GREEN
Receive -
7
RD+
WHITE BROWN
-
8
RD-
BROWN
-
* IP and MAC information can be obtained from the self-test.
* Refer to the Ethernet User’s Manual that is available from the BIXOLON website for more
detailed information.

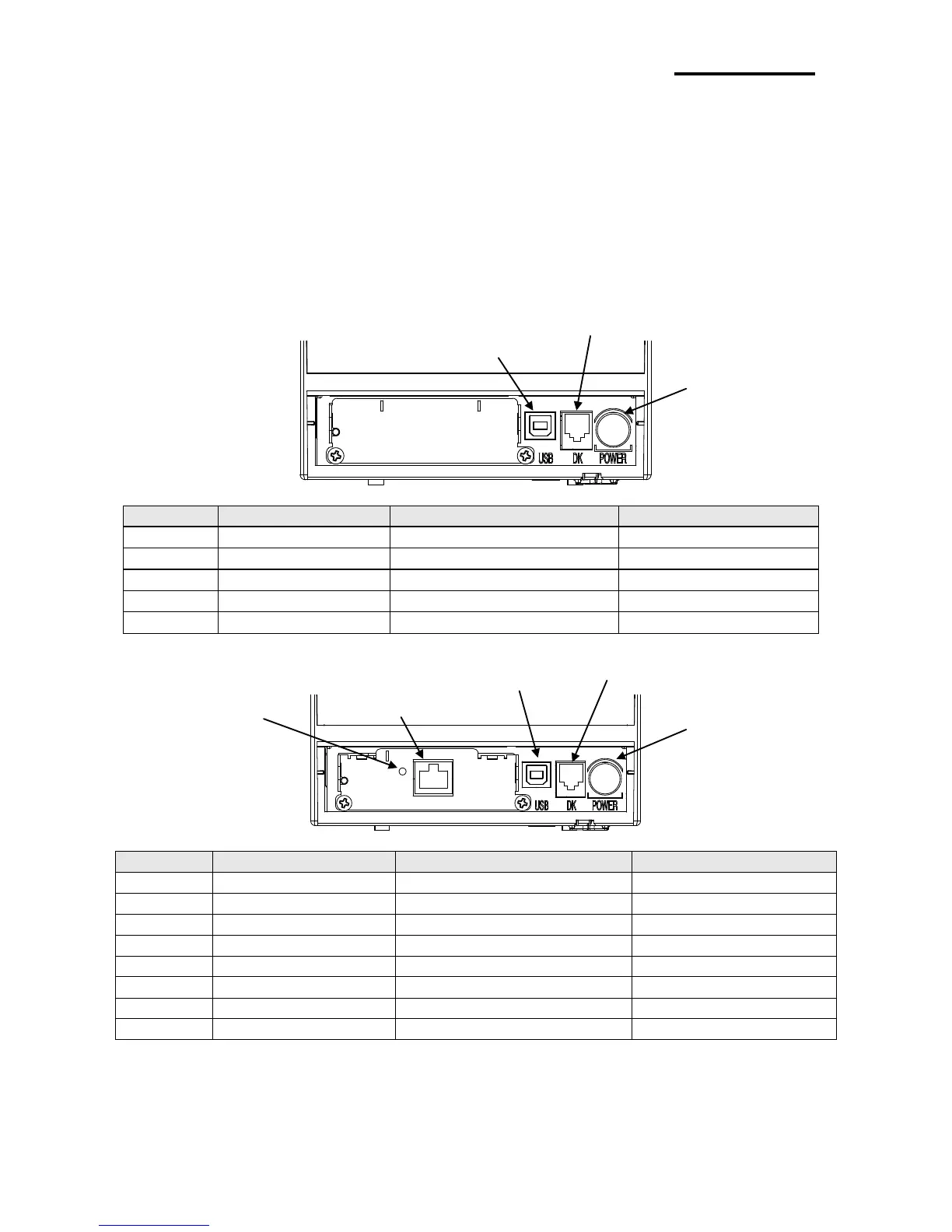

Power Connector
Drawer Kick-out
Connector
Drawer Kick-out
Connector
Power Connector
USB Connector
Ethernet Connector
USB Connector
Ethernet function key
