7
2.4 Data Log
The Data Log window can be used to view real-time or stored output voltage, current, and power data. Move left
and right along the graphed data by adjusting the “Move” slide bar. Zoom In/Out of the graph by adjusting the
“Zoom” slide bar.

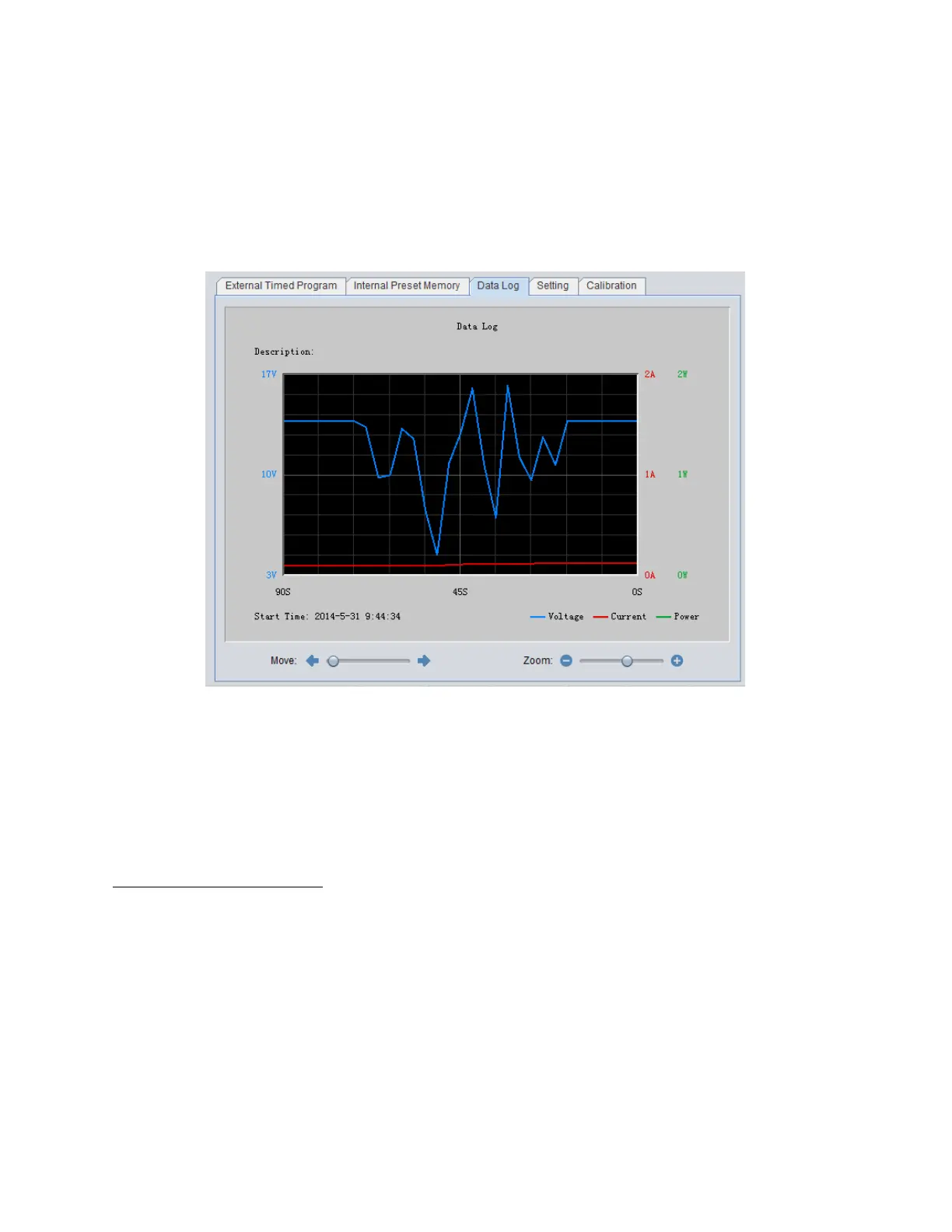

Figure 2.6 - Data Log Window
To save and export a data log to a ‘.csv’ file, enter Log Name in text box and click the “Save” icon.
The log can be retrieved or printed by clicking the “Load” and “Print” icons.
Time Frame Concept of Data Log
The data logging function always starts when the software begins to run.
0 seconds on the right hand side of the X-axis indicates real-time data with the length of time lapsed on the left
hand side.
The X-axis is adjustable using the “Move” and “Zoom” slide bars so that any time period of the log can be
displayed for analysis.
