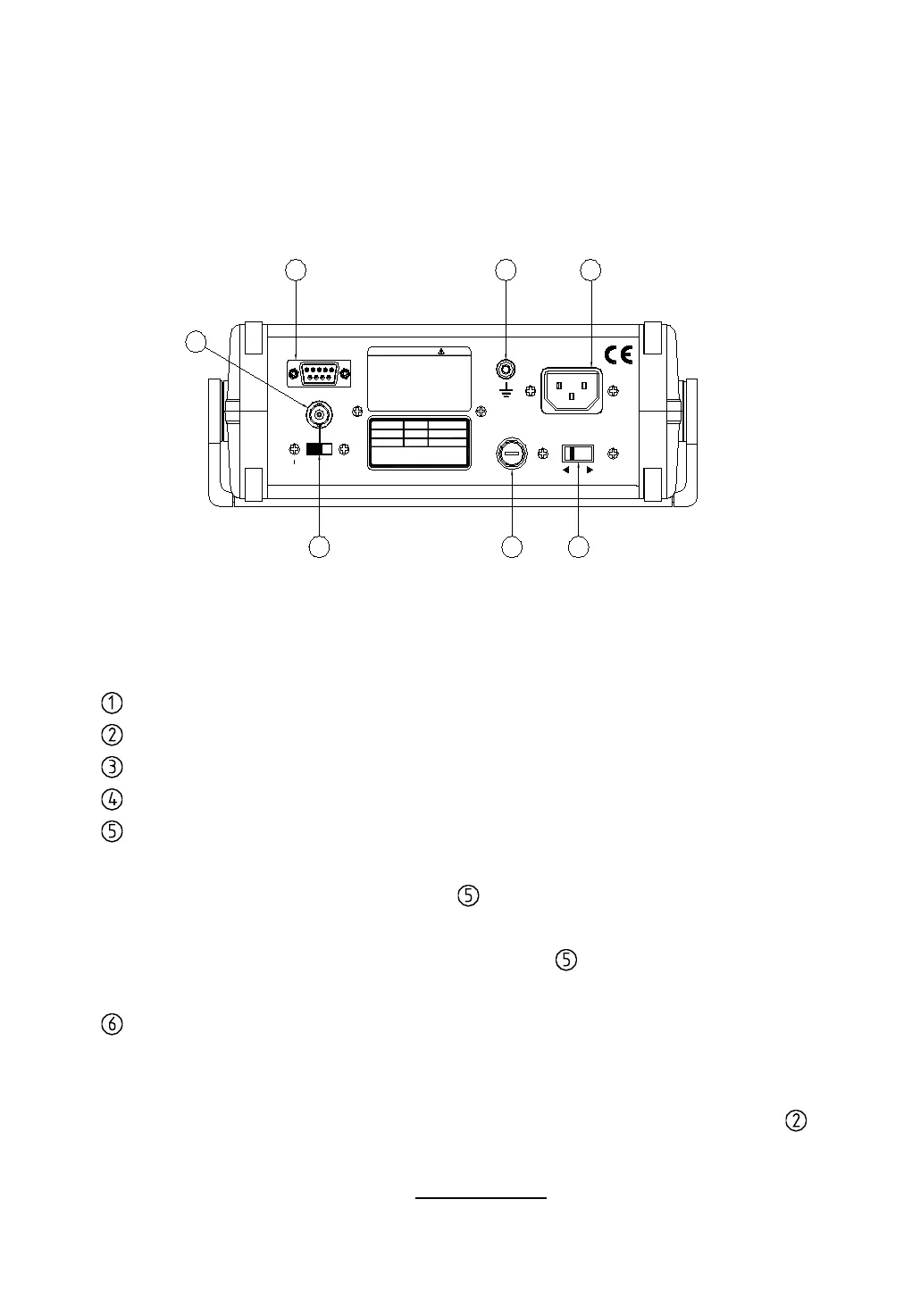

FIG (3) REAR PANEL
AC INLET: AC power input connector
VOLTAGE SELECTOR: Selects the AC Power (115 V or 230 V)
FUSE HOLDER: Replace fuse by unscrewing.
GROUND TERMINAL
INT/EXT TIME BASE SELECTOR:
Selects the source of the time base. EXT.STD. IN
sets up BNC
as a nominal 600 Ω input impedance
path for an external 10 MHz time base signal. INT.
STD. OUT sets up BNC
to monitor the internal
time base signal.
INT/EXT TIME BASE BNC:
Provides a connector through which the internal time
base signal can be monitored or through which an
external time base signal can be applied (see item
above). The external signal should have a voltage
range of 1.5 V~5 V rms.
Made in Korea
POWER MAX
230V ~
115V ~
VOLTAGE
S/N :
0.2A F
0.5A F
FUSE
15W
15W
