9
2.6 Power Supply Calibration
Note: Software calibration only available for firmware 3.1 or above.
B&K Precision recommends a calibration interval of one year to ensure that the power supply meets specifications.
This instrument features closed-case calibration. To perform the calibration, the following equipment is required:
Digital multimeter
DC electronic load
The following calibration instructions may be used by authorized technicians or calibration personnel
only. If you are not authorized, do not attempt to calibrate the instrument yourself, as it may damage the
instrument and void the warranty.

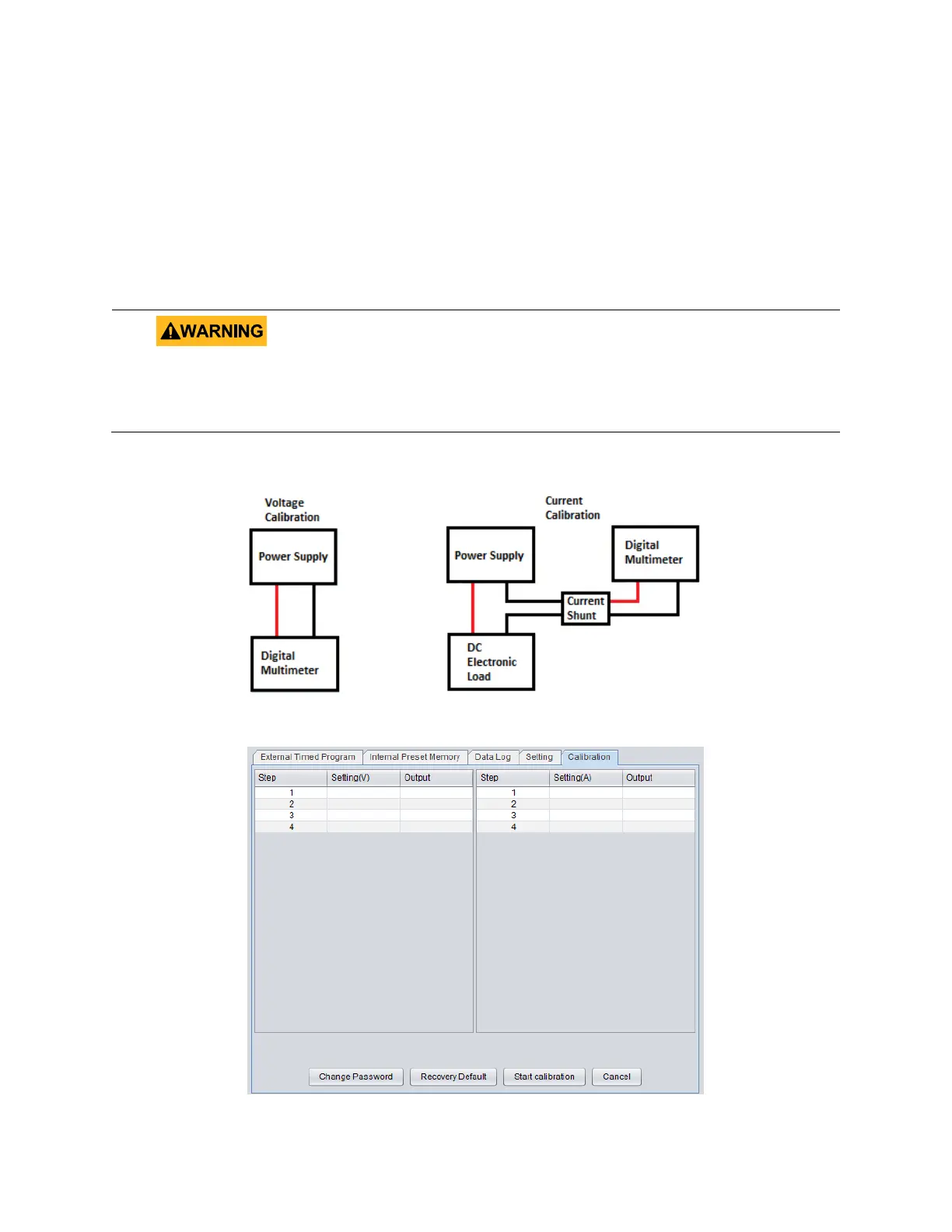

Please refer to the following figure to connect your power supply for Voltage and Current Calibration.
Figure 2.8 - Connection Setup for Calibration
Click on the Calibration tab.
Figure 2.9 - Calibration Screen
To Next Page
