Black & Decker CS1518 User Manual

6
SYMBOLS
The label on your tool may include the
following symbols. The symbols and their
definitions are as follows:
V ..................volts
A ..................amperes
Hz ................hertz
W .................watts
min ..............minutes
or AC ...... alternating current
or DC ...direct current
n
o ................no load speed
................Class I Construction
(grounded)
PREPARING YOUR CHAIN SAW
FOR USE
WARNING: Read and understand all
instructions. Failure to follow all instructions
listed below may result in electric shock, fire
and/or serious personal injury.
ASSEMBLY
INSTALLING THE GUIDE BAR AND SAW CHAIN
CAUTION: Sharp chain. Always wear
protective gloves when handling the
chain. The chain is sharp and can cut you
when it is not running.
WARNING: Sharp moving chain. To
prevent accidental operation, insure that
tool is unplugged before performing the
following operations. Failure to do this
could result in serious personal injury.
The saw chain (5) and guide bar (4) are
packed separately in the carton. The chain
has to be attached to the bar, and both must
be attached to the body of the tool.
• Place the saw on a firm surface.
• Rotate the bar adjust locking knob (7)
counterclockwise as shown in figure A to
remove sprocket cover (6).
................earthing terminal
................safety alert symbol
................Class II Construction
(double insulated)
.../min or rpm...revolutions or
reciprocation per minute
...............Read instruction manual
before use
................Use proper respiratory
protection
................ Use proper eye protection
................Use proper hearing
protection
• Turn the tool-free tension assembly (16)
(attached to the bar) counterclockwise
until it stops as shown in figure B.
• Wearing protective gloves, grasp the saw
chain (5) and wrap it around the guide
bar (4), ensuring the teeth are facing the
correct direction (see figure F)

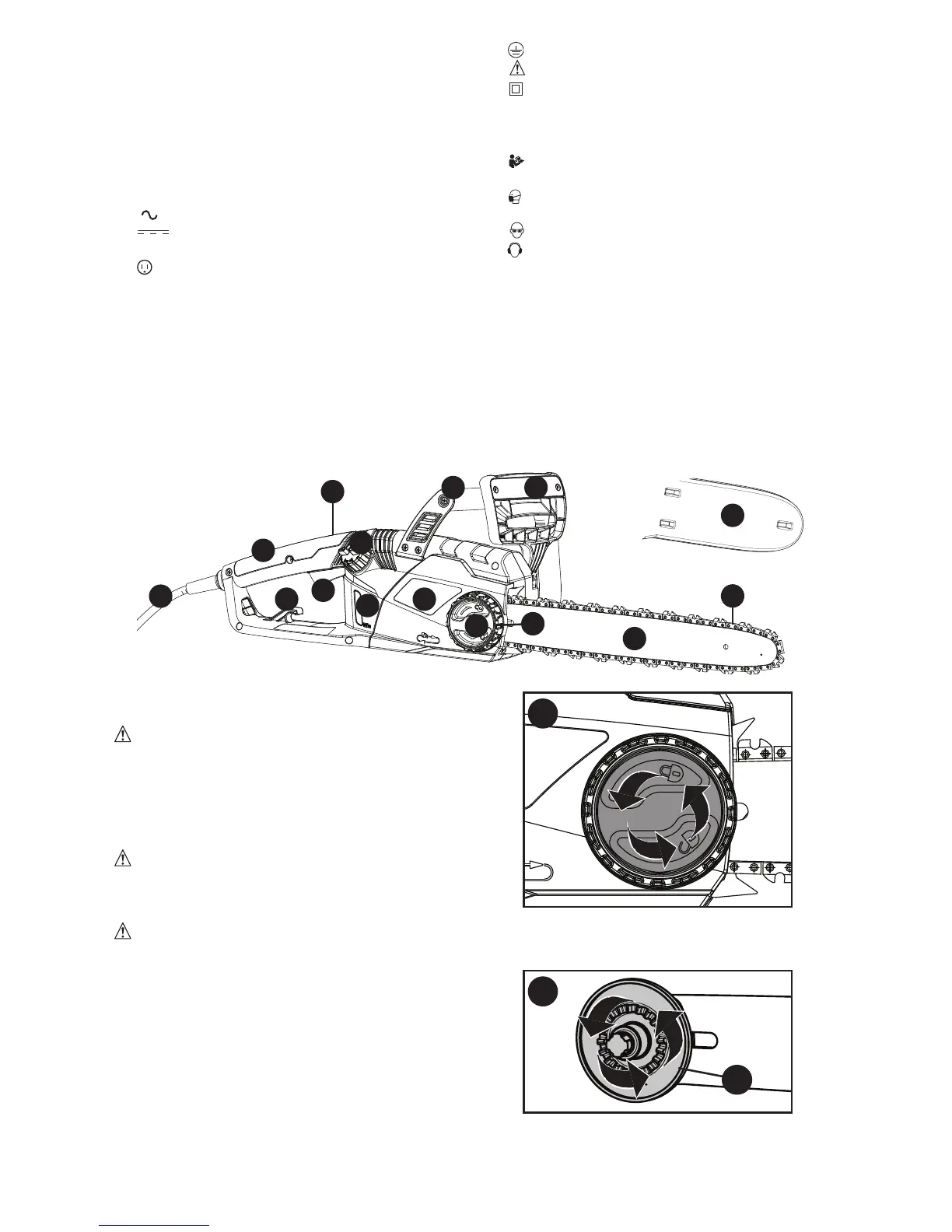

FUNCTIONAL DESCRIPTION
1. Trigger switch
2. Lock-off button (not shown)
3. Chain brake / front hand guard
4. Guide bar
5. Saw chain
6. Sprocket cover
7. Bar adjust locking knob
8. Chain tensioning wheel
9. Guide bar scabbard
10. Rear handle
11. Front handle
12. Cord
13. Extention cord retainer
14. Oil cap
15. Oil level indicator
A
1
3
6
7
4
2
5
9
11
10
12
13
14
8
15
B
16
