HOUSING
CAP7
‘IVE SCREWS
(UND
SYSTEM BUS
CONNECTOR
OURBtiS
CONNECTOR
BULLPIN

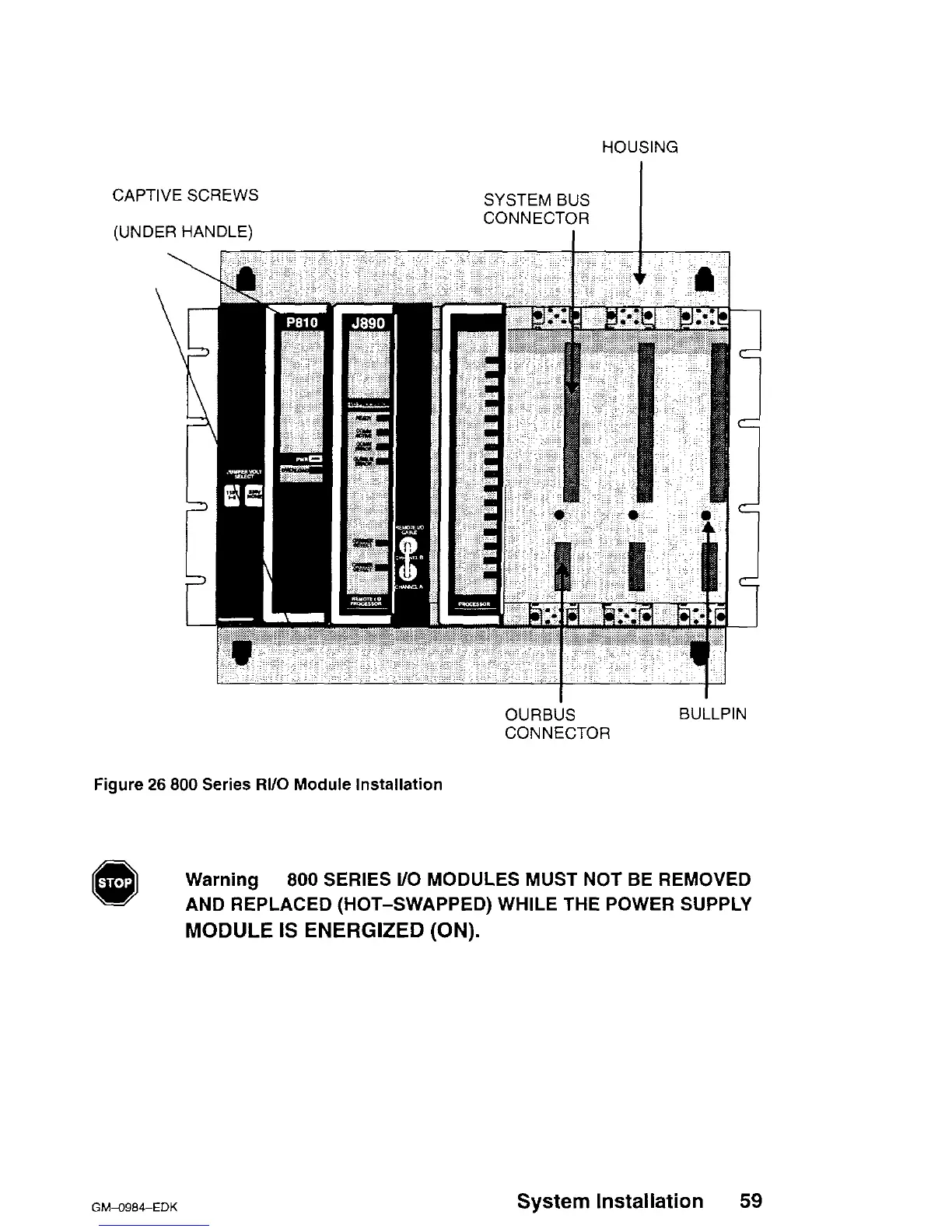

Figure 26 800 Series RI/O Module Installation
Warning
800 SERIES i/O MODULES MUST NOT BE REMOVED
AND REPLACED (HOT-SWAPPED) WHILE THE POWER SUPPLY
MODULE IS ENERGIZED (ON).
GMa984-EDK
System Installation 59
