To reduce your exposure to these
chemicals, wear approved safety equipment
such as dust masks that are specially
designed to filter out microscopic particles.
SYMBOLS
The label on your tool may include the
following symbols. The symbols and their
definitions are as follows:
V .....................volts
A ....................amperes
Hz ................... hertz
W....................watts
min ................. minutes
or AC ......... alternating current
or DC ......direct current
n
o ................... no load speed
..................Class I Construction (grounded)
...................earthing terminal
.................safety alert symbol
..................Class II Construction
(double insulated)
.../min or rpm...revolutions or reciprocation
per minute
...................Use proper respiratory protection
...............Read instruction manual before use
..................Use proper eye protection
...................Use proper hearing protection
IMPORTANT SAFETY
INSTRUCTIONS FOR
BATTERY CHARGERS
SAVE THESE INSTRUCTIONS: T
his manual
contains important safety instructions for
battery chargers.
• Before using charger, read all instructions
and cautionary markings on charger, battery
pack, and product using battery pack.
WARNING: Shock hazard. Do not
allow any liquid to get inside charger.
CAUTION: Burn hazard. To reduce
the risk of injury, charge only designated
BLACK+DECKER batteries. Other types of
batteries may burst causing personal injury
and damage.
CAUTION: Under certain conditions, with
the charger plugged in to the power supply,
the charger can be shorted by foreign material.
Foreign materials of a conductive nature such
as, but not limited to, steel wool, aluminum foil,
or any buildup of metallic particles should be
kept away from charger cavities. Always
unplug the charger from the power supply
when there is no battery pack in the cavity.
Unplug charger before attempting to clean.
WARNING: DO NOT attempt to
charge the battery pack with any
chargers other than the ones in this
manual. The charger and battery pack are
specifically designed to work together.
4
1
2
34
6
7
5

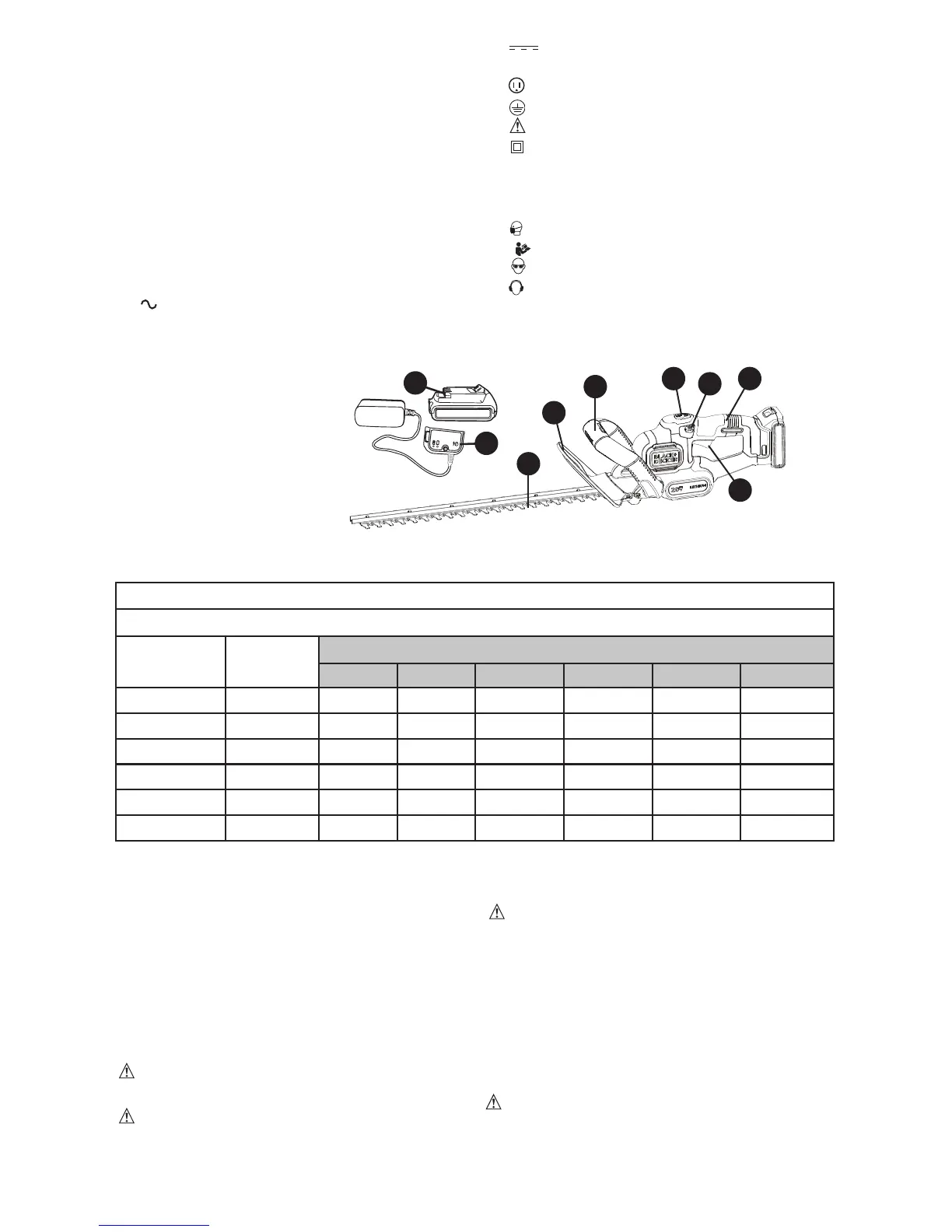

FUNCTIONAL DESCRIPTION
1. Trigger Switch
2. Lock-off Button
3. Switch Handle
4. POWERCUT
TM
Button
5. Blade Guard
6. Bail Handle
7. Blade
8. Battery
9. Charger
8
9
BLACK+DECKER Battery and Charger Systems
Chargers/Charge Time** (Hours) (0% to 100% charge)
20V MAX*
Batteries
Watt
Hours
20V MAX* Chargers
LCS200 LCS1620 LCS201 LCS202 L2AFC L2AFCBST
LBX20 26 6.5 3.25 1.3 0.65 0.65 0.65
LBXR20 30 7.5 3.75 1.5 0.75 0.75 0.75
LBXR2020 40 10 5 2 1 1 1
LBXR2520 50 12.5 6.25 2.5 1.25 1.25 1.25
LB2X3020 60 15 7.5 3 1.5 1.5 1.5
LB2X4020 80 20 10 4 2 2 2
**All charge times are approximate. Actual charge time may vary.
