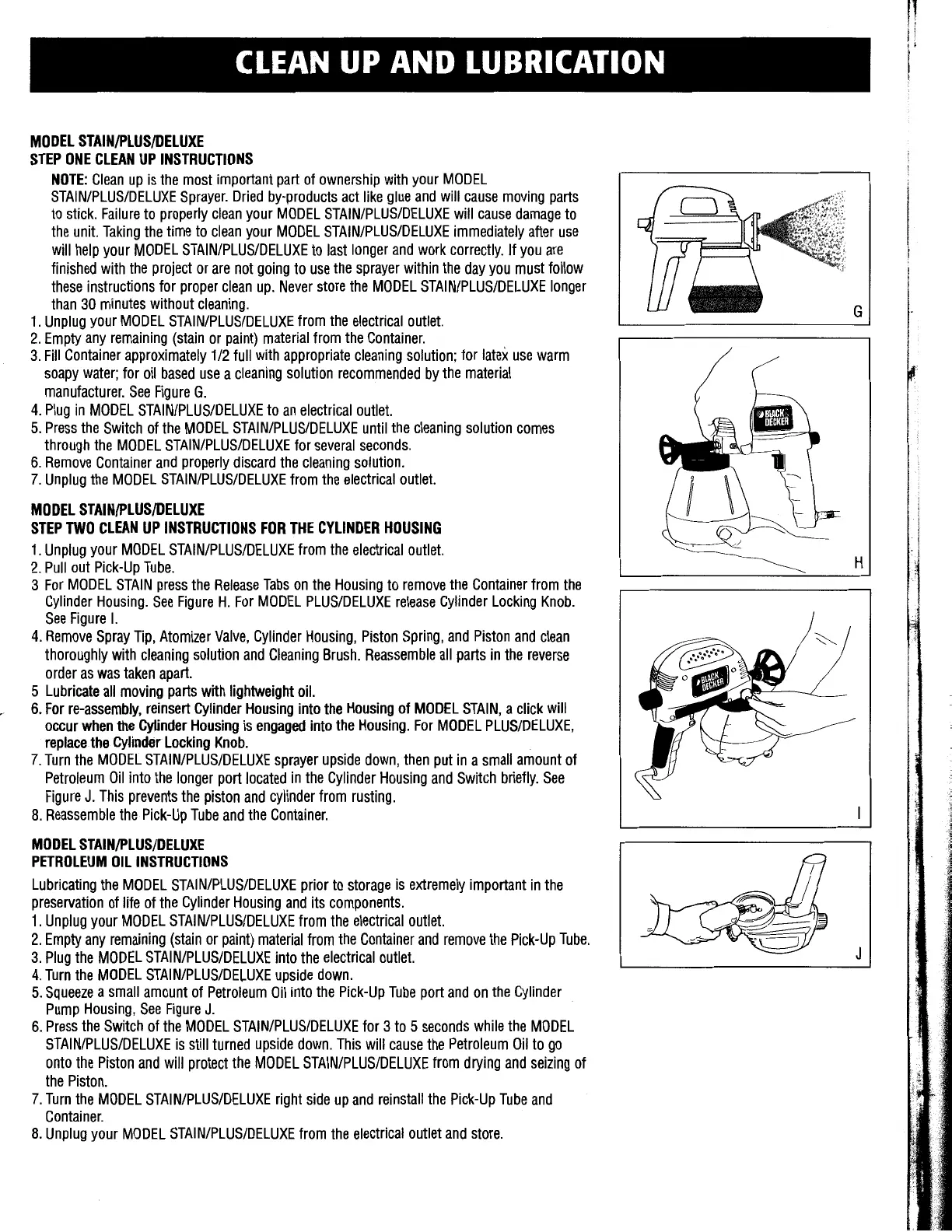

CLEAN UP AND LUBRICATION
MODEL STAIN/PLUS/DELUXE
STEP ONE CLEAN UP INSTRUCTIONS
NOTE: Clean up is the most important part of ownership with your MODEL
STAIN/PLUS/DELUXE Sprayer. Dried by-products act like glue and will cause moving parts
to stick. Failure to properly clean your MODEL STAIN/PLUS/DELUXE will cause damage to
the unit. Taking the time to clean your MODEL STAIN/PLUS/DELUXE immediately after use
will help your MODEL STAIN/PLUS/DELUXE to last longer and work correctly. If you are
finished with the project or are not going to use the sprayer within the day you must follow
these instructions for proper clean up. Never store the MODEL STAIN/PLUS/DELUXE longer
than 30 minutes without cleaning.
1. Unplug your MODEL STAIN/PLUS/DELUXE from the electrical outlet.
2. Empty any remaining (stain or paint) material from the Container.
3. Fill Container approximately 1/2 full with appropriate cleaning solution; for latex use warm
soapy water; for oil based use a cleaning solution recommended by the material
manufacturer. See Figure G.
4. Plug in MODEL STAIN/PLUS/DELUXE to an electrical outlet.
5. Press the Switch of the MODEL STAIN/PLUS/DELUXE until the cleaning solution comes
through the MODEL STAIN/PLUS/DELUXE for several seconds.
6. Remove Container and properly discard the cleaning solution.
7. Unplug the MODEL STAIN/PLUS/DELUXE from the electrical outlet.
MODEL STAIN/PLUS/DELUXE
STEP TWO CLEAN UP INSTRUCTIONS FOR THE CYLINDER HOUSING
1. Unplug your MODEL STAIN/PLUS/DELUXE from the electrical outlet.
2. Pull out Pick-Up Tube.
3 For MODEL STAIN press the Release Tabs on the Housing to remove the Container from the
Cylinder Housing. See Figure H. For MODEL PLUS/DELUXE release Cylinder Locking Knob.
See Figure I.
4. Remove Spray Tip, Atomizer Valve, Cylinder Housing, Piston Spring, and Piston and clean
thoroughly with cleaning solution and Cleaning Brush. Reassemble all parts in the reverse
order as was taken apart.
5 Lubricate all moving parts with lightweight oil.
6. For re-assembly, reinsert Cylinder Housing into the Housing of MODEL STAIN, a click will
occur when the Cylinder Housing is engaged into the Housing. For MODEL PLUS/DELUXE,
replace the Cylinder Locking Knob.
7. Turn the MODEL STAIN/PLUS/DELUXE sprayer upside down, then put in a small amount of
Petroleum Oil into the longer port located in the Cylinder Housing and Switch briefly. See
Figure J. This prevents the piston and cylinder from rusting.
8. Reassemble the Pick-Up Tube and the Container.
MODEL STAIN/PLUS/DELUXE
PETROLEUM OIL INSTRUCTIONS
Lubricating the MODEL STAIN/PLUS/DELUXE prior to storage is extremely important in the
preservation of life of the Cylinder Housing and its components.
1. Unplug your MODEL STAIN/PLUS/DELUXE from the electrical outlet.
2. Empty any remaining (stain or paint) material from the Container and remove the Pick-Up Tube.
3. Plug the MODEL STAIN/PLUS/DELUXE into the electrical outlet.
4. Turn the MODEL STAIN/PLUS/DELUXE upside down.
5. Squeeze a small amount of Petroleum Oil into the Pick-Up Tube port and on the Cylinder
Pump Housing, See Figure J.
6. Press the Switch of the MODEL STAIN/PLUS/DELUXE for 3 to 5 seconds while the MODEL
STAIN/PLUS/DELUXE is still turned upside down. This will cause the Petroleum Oil to go
onto the Piston and will protect the MODEL STAIN/PLUS/DELUXE from drying and seizing of
the Piston.
7. Turn the MODEL STAIN/PLUS/DELUXE right side up and reinstall the Pick-Up Tube and
Container.
8. Unplug your MODEL STAIN/PLUS/DELUXE from the electrical outlet and store.
