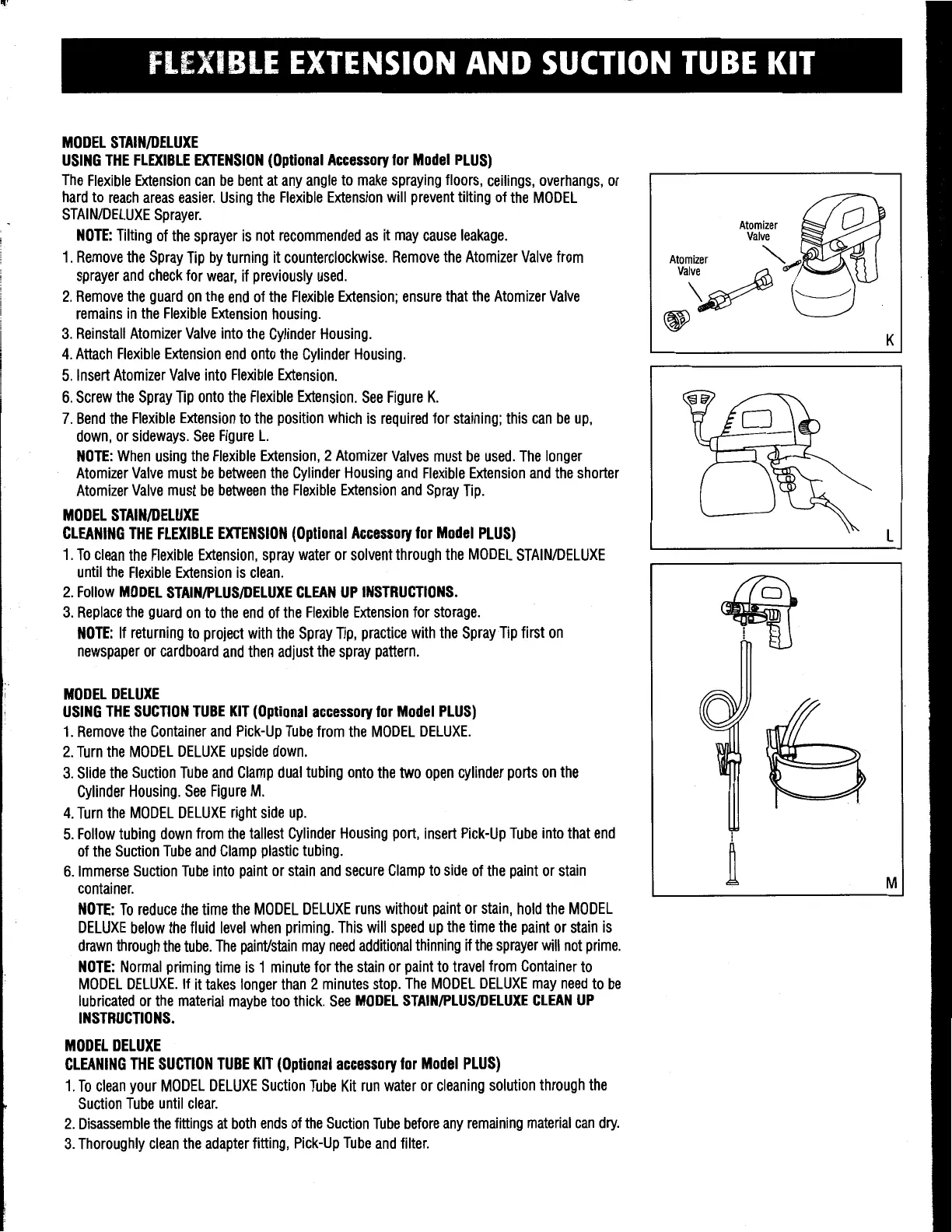

Black & Decker PLUS - Flexible Extension and Suction Tube Kit

FLEXIBLE EXTENSION AND SUCTION TUBE KIT
MODEL STAIN/DELUXE
USING THE FLEXIBLE EXTENSION (Optional Accessory for Model PLUS)
The Flexible Extension can be bent at any angle to make spraying floors, ceilings, overhangs, or
hard to reach areas easier. Using the Flexible Extension will prevent tilting of the MODEL
STAIN/DELUXE Sprayer.
NOTE: Tilting of the sprayer is not recommended as it may cause leakage.
1. Remove the Spray Tip by turning it counterclockwise. Remove the Atomizer Valve from
sprayer and check for wear, if previously used.
2. Remove the guard on the end of the Flexible Extension; ensure that the Atomizer Valve
remains in the Flexible Extension housing.
3. Reinstall Atomizer Valve into the Cylinder Housing.
4. Attach Flexible Extension end onto the Cylinder Housing.
5. Insert Atomizer Valve into Flexible Extension.
6. Screw the Spray Tip onto the Flexible Extension. See Figure K.
7. Bend the Flexible Extension to the position which is required for staining; this can be up,
down, or sideways. See Figure L.
NOTE: When using the Flexible Extension, 2 Atomizer Valves must be used. The longer
Atomizer Valve must be between the Cylinder Housing and Flexible Extension and the shorter
Atomizer Valve must be between the Flexible Extension and Spray Tip.
MODEL STAIN/DELUXE
CLEANING THE FLEXIBLE EXTENSION (Optional Accessory for Model PLUS)
1. To clean the Flexible Extension, spray water or solvent through the MODEL STAIN/DELUXE
until the Flexible Extension is clean.
2. Follow MODEL STAIN/PLUS/DELUXE CLEAN UP INSTRUCTIONS.
3. Replace the guard on to the end of the Flexible Extension for storage.
NOTE: If returning to project with the Spray Tip, practice with the Spray Tip first on
newspaper or cardboard and then adjust the spray pattern.
MODEL DELUXE
USING THE SUCTION TUBE KIT (Optional accessory for Model PLUS)
1. Remove the Container and Pick-Up Tube from the MODEL DELUXE.
2. Turn the MODEL DELUXE upside down.
3. Slide the Suction Tube and Clamp dual tubing onto the two open cylinder ports on the
Cylinder Housing. See Figure M.
4. Turn the MODEL DELUXE right side up.
5. Follow tubing down from the tallest Cylinder Housing port, insert Pick-Up Tube into that end
of the Suction Tube and Clamp plastic tubing.
6. Immerse Suction Tube into paint or stain and secure Clamp to side of the paint or stain
container.
NOTE: To reduce the time the MODEL DELUXE runs without paint or stain, hold the MODEL
DELUXE below the fluid level when priming. This will speed up the time the paint or stain is
drawn through the tube. The paint/stain may need additional thinning if the sprayer will not prime.
NOTE: Normal priming time is 1 minute for the stain or paint to travel from Container to
MODEL DELUXE. If it takes longer than 2 minutes stop. The MODEL DELUXE may need to be
lubricated or the material maybe too thick. See MODEL STAIN/PLUS/DELUXE CLEAN UP
INSTRUCTIONS.
MODEL DELUXE
CLEANING THE SUCTION TUBE KIT (Optional accessory for Model PLUS)
1. To clean your MODEL DELUXE Suction Tube Kit run water or cleaning solution through the
Suction Tube until clear.
2. Disassemble the fittings at both ends of the Suction Tube before any remaining material can dry.
3. Thoroughly clean the adapter fitting, Pick-Up Tube and filter.
Atomizer
Valve
Atomizer ~
Va~·~
~
K
L
M
