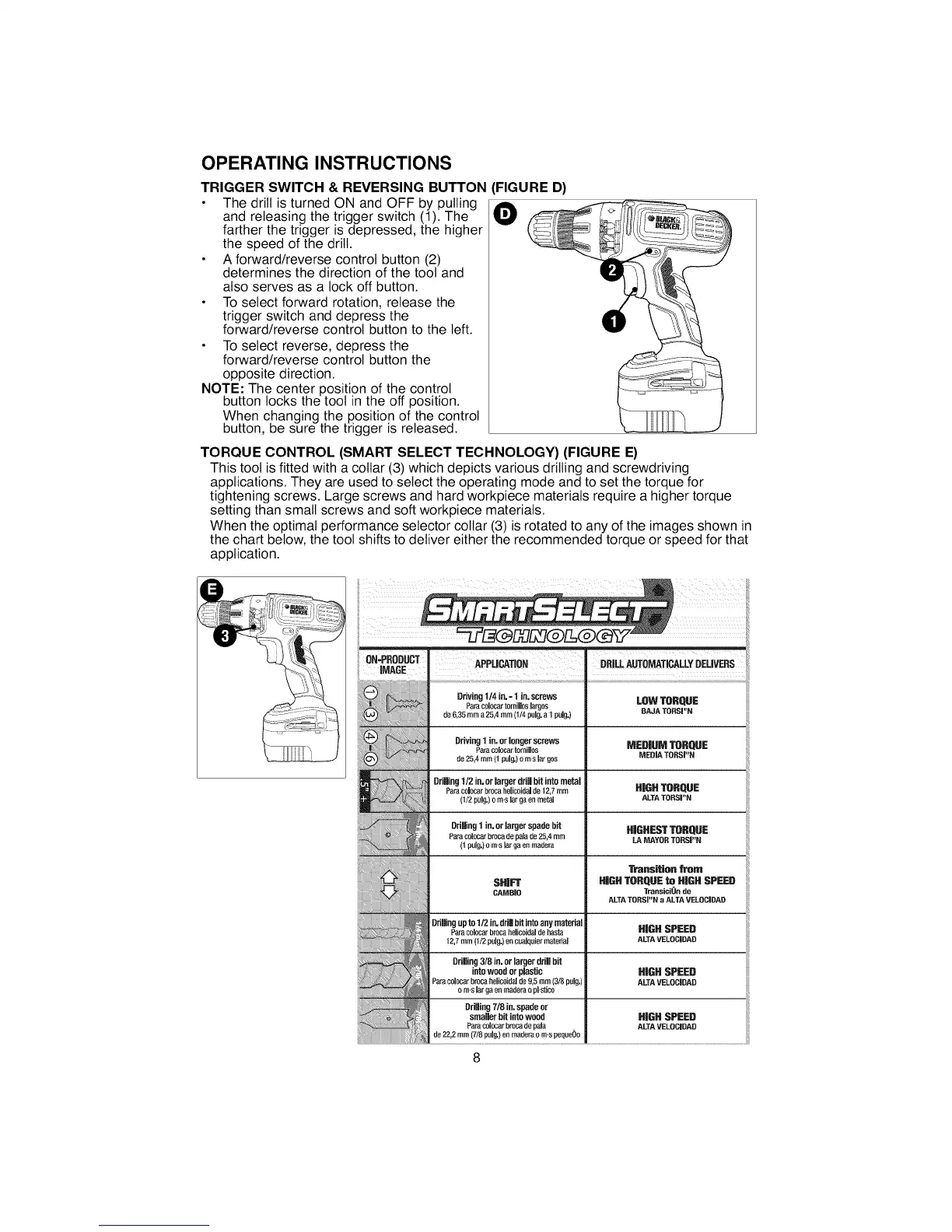

OPERATING INSTRUCTIONS
TRIGGER SWITCH & REVERSING BUTTON
The drill is turned ON and OFF by pulling
and releasing the trigger switch (1). The
farther the trigger is depressed, the higher
the speed of the drill.
A forward/reverse control button (2)
determines the direction of the toot and
also serves as a lock off button.
To select forward rotation, release the
trigger switch and depress the
forward/reverse control button to the left.
To select reverse, depress the
forward/reverse control button the
opposite direction.
NOTE: The center position of the control
button locks the toot in the off position.
When changing the position of the control
button, be sure the trigger is released.
FIGURE D)
O
TORQUE CONTROL (SMART SELECT TECHNOLOGY) (FIGURE E)
This tool is fitted with a collar (3) which depicts various drilling and screwdriving
applications. They are used to select the operating mode and to set the torque for
tightening screws. Large screws and hard workpiece materials require a higher torque
setting than small screws and soft workpiece materials.
When the optimal performance selector collar (3) is rotated to any of the images shown in
the chart below, the toot shifts to deliver either the recommended torque or speed for that
application.
Driving1/4 in.- 1 in, screws
ParacalocartareiUoslargos
de6,35mma 25,4mm(1/4pulg.a1 pulg.)
DRILLAUTOMATICALLYDEUVERS
LOWTORQUE
BAJA TORSJ"N
Driving 1 in,or longer screws MEDIUM TDRQUE
Paracolocar tornilloe
de 25,4 mm (1 pulg.)o m.s Jar gee MEDIA TODSi"N
Drilling 1/2 in.or larger drill bit intometal
Para coJocar broca helicoidal de 12,7 mm HiGHTORQUE
(1/2 palg.) o rn.e Jarga en metal ALTA TORSI"N
Drilling 1 in. orlarger spade bit HIGHEST TORQUE
Para ealocar broca de pala de 25,4 mm LA MAYOR TORSI"N
(I puIg,) o m,s lar ga en rnadera
Transition from
SHIFT HiGH TORQUEto HiGH SPEED
CAMBBO Transici0n de
ALTA TORSI"N a ALTA VELOCiDAD
DdlJingupto 1/2 in. dri| bitinto any material
Para colocar broca helicoidalde hasta HiGHSPEED
12,7 i;lm (t/2 paiD.)en cealquier material ALTA VELOCIDAD
Ddiiing 3/8 in. orlargerddil bit
into wood or plastic
Poracolocarbrocahelicoidalde9,5mm(3/5pul6.)
orn.slargaenmaderaopl-stico
Drilling7/8 in.spade or
smaller bitinto wood
Paraeoloearbr_cadepala
de22,2mm(7/8paiD.)eemaderaorn.apeque0o
HiGHSPEED
ALTA VELOCJDAD
+i+i+i+i+
iiiiiiiii
iiiiiiiii
HiGHSPEED
ALTA VELOC|DAD
