SERVSWITCH™ WIZARD EXTENDER
• If none of the other solutions are practical or if none of them work, you can
install a ServSwitch™ Wizard Skew Compensator (product code ACU5100A)
between your transmitter and receiver, as shown in Figure 7-2.

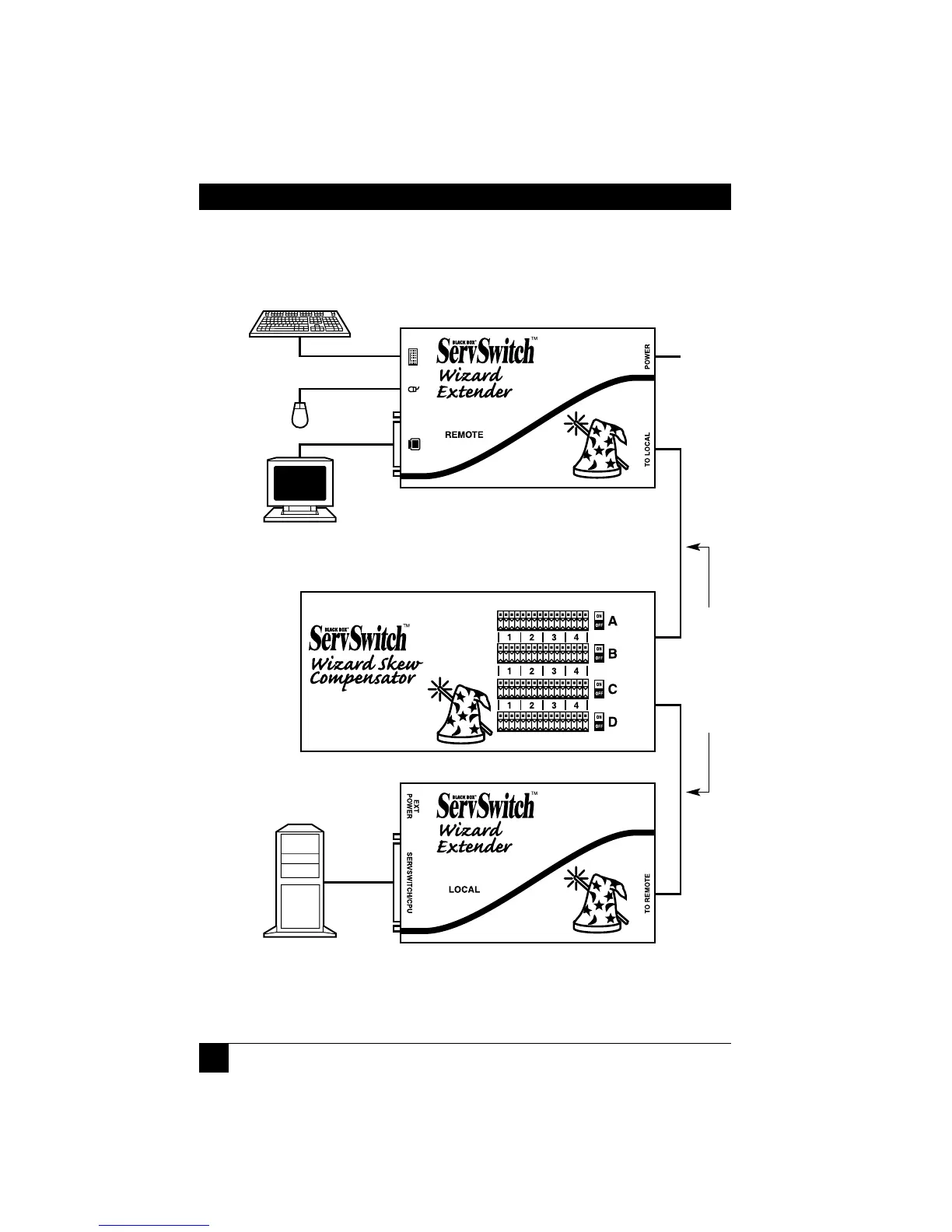

Figure 7-2. An Extender system with a Skew Compensator installed.
Receiver
Skew Compensator
Transmitter
Computer CPU
Keyboard,
mouse, and
monitor
To
included
power
adapter
CAT5 or
higher
cables,
together
totaling
up to
200 m
(655 ft.)
in length
