APPENDIX: Cable Guidelines
Cable Pinning: Straight-through (Pin 1 to Pin 1, 2 to 2, etc.)
Cable Pairing:
Pair 1: Pins 4 and 5 (differential green video and vertical sync)
Pair 2: Pins 1 and 2 (differential blue video)
Pair 3: Pins 3 and 6 (differential red video and horizontal sync)
Pair 4: Pins 7 and 8 (keyboard and mouse data)

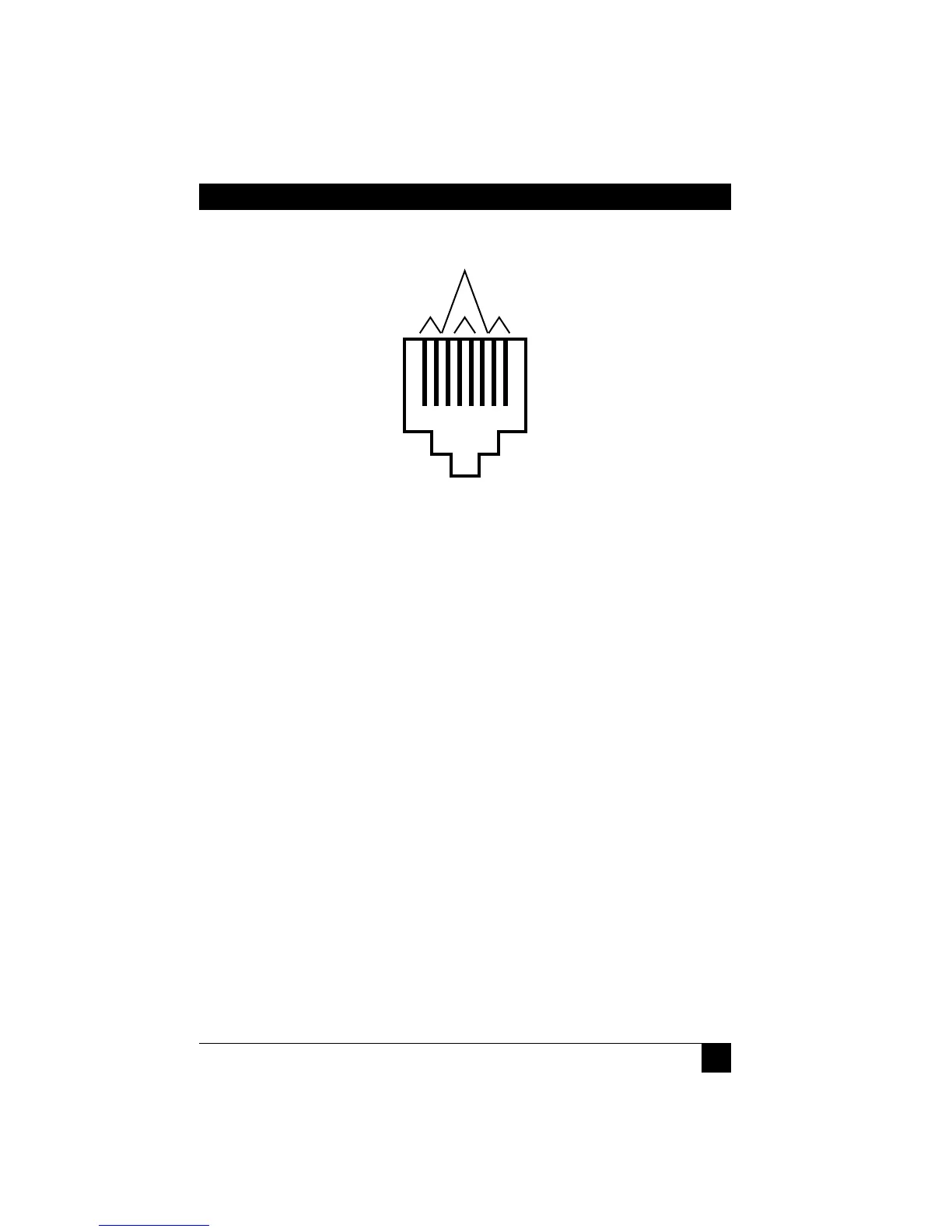

Figure A-2. Twisted-pair cable specifications.
1 2 3 4 5 6 7 8
PR1
PR3
PR2 PR4
