Introduction ......................................................................................................................................................................2
Important Safety Instructions ........................................................................................................................................3-4
Specific Safety Rules ........................................................................................................................................................ 4
Symbols ......................................................................................................................................................................... 5-7
Electrical ........................................................................................................................................................................8-9
Features .........................................................................................................................................................................10
Assembly ........................................................................................................................................................................ 11
Operation ................................................................................................................................................................... 12-14
Maintenance ..............................................................................................................................................................15-17
Troubleshooting .............................................................................................................................................................. 18
Warranty ....................................................................................................................................................................19-21
Parts Ordering / Service ....................................................................................................................................Back Page
This product has many features for making its use more pleasant and enjoyable. Safety, performance, and dependability
have been given top priority in the design of this product, making it easy to maintain and operate.
TABLE OF CONTENTS
INTRODUCTION
DANGER:

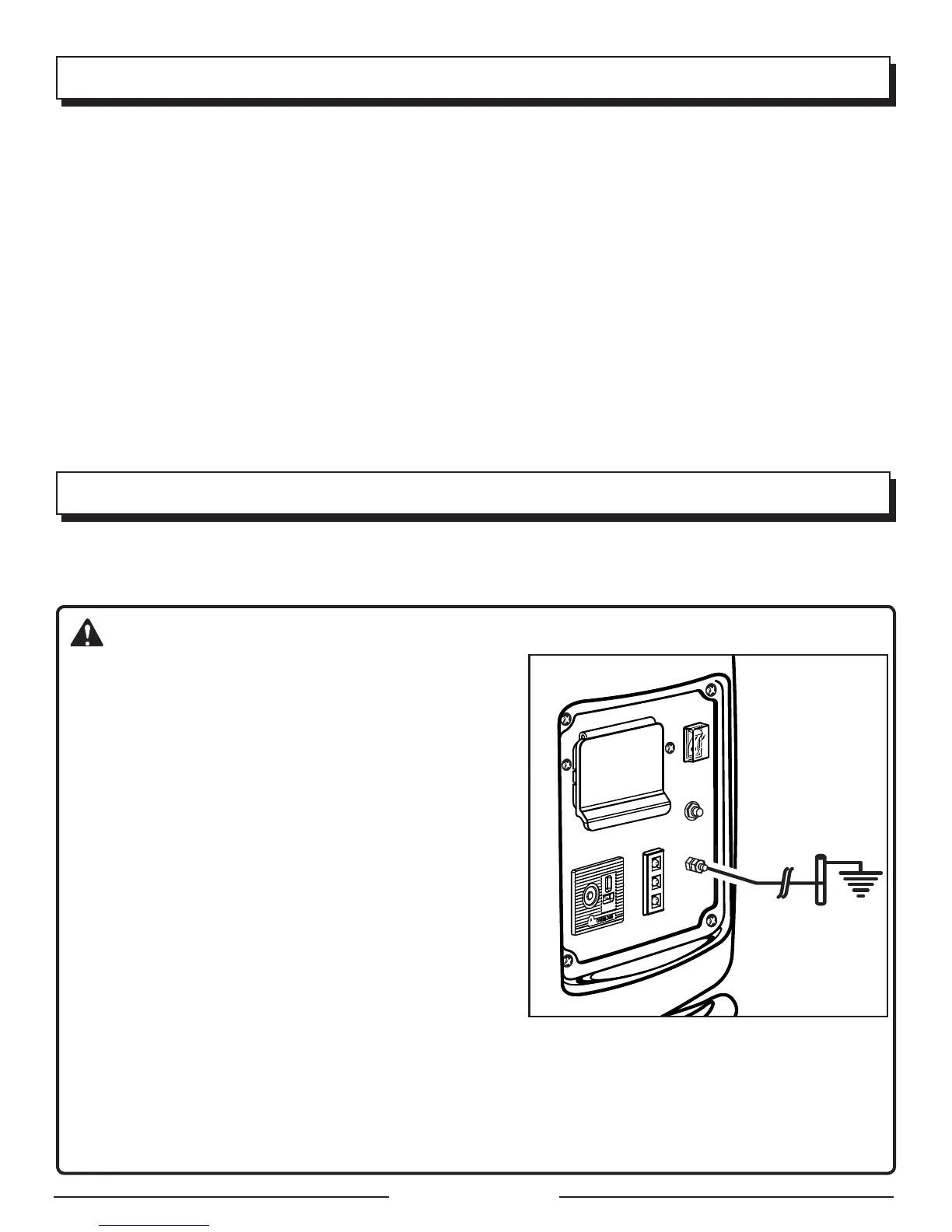

GROUNDING THE GENERATOR
To reduce the risk of shock or electrocution, generator must be
properly grounded. The nut and ground terminal on the frame must
always be used to connect the generator to a suitable ground
source. The ground path should be made with #8 size wire. Con-
nect the terminal of the ground wire between the lock washer and
the nut, and tighten the nut fully. Connect the other end of the
wire securely to a suitable ground source.
The National Electric Code contains several practical ways in
which to establish a good ground source. If a steel or iron rod is
used, it should be at least 5/8 in. diameter, and if a nonferrous
rod is used, it should be at least 1/2 in. diameter and be listed as
material for grounding. Drive the rod or pipe to a depth of 8 ft. If
a rock bottom is encountered less than 4 ft. down, bury the rod
or pipe in a trench.
All electrical tools and appliances operated from this generator
must be properly grounded by use of a third wire or be “Double
Insulated.”
It is recommended to:
1. Use electrical devices with 3-prong grounded plugs.
2. Use an extension cord intended for outdoor use with a 3-pole receptacle and a 3-prong plug at opposite ends to
ensure continuity of the ground protection from the generator to the appliance.
Check and adhere to all applicable federal, state, and local regulations relating to grounding specifications. Consult a
qualified electrician or service personnel if the grounding instructions are not completely understood or if in doubt as
to whether the generator is properly grounded.
