ASSEMBLY GUIDE

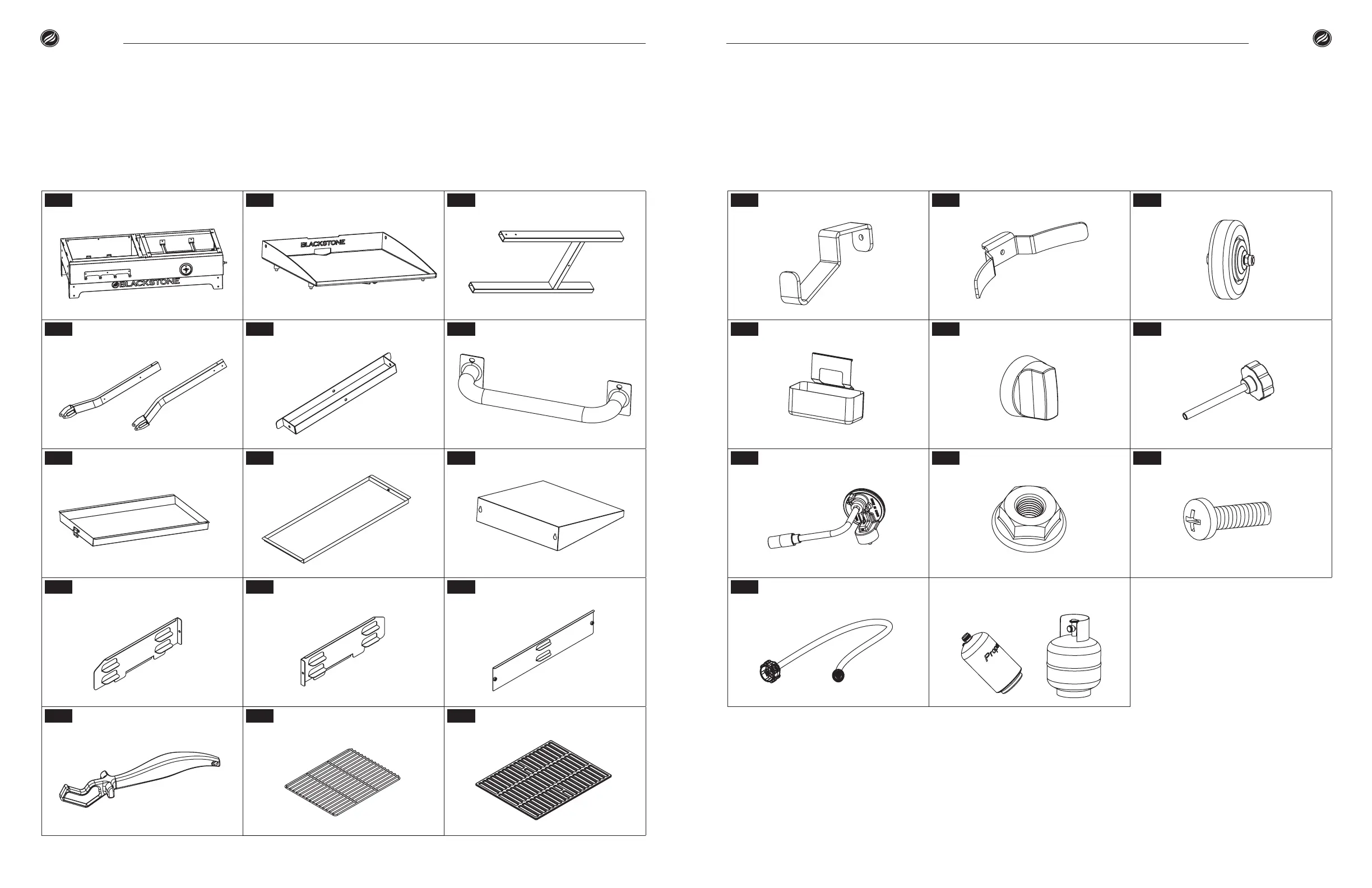

ILLUSTRATED PARTS LIST
1 Grill/Griddle Body (1 piece) 2 Griddle Top (1 piece) 3 Le Leg Set (1 piece)
4 Right Leg Set (2 pieces) 5 Right Leg Support (2 pieces) 6 Side Handle (1 piece)
7 Charcoal Ash Tray (1 piece) 8 Bottom Shelf (1 piece) 9 Side Shelf (1 piece)
10 Wind Guard (Le) (1 piece) 11 Wind Guard (Right) (1 piece) 12 Wind Guard (Rear) (1 piece)
13 Grill Grate Handle (1 pieces) 14 Charcoal Grate (1 piece) 15 Grill Grate (1 piece)
16 Propane Tank Hanger (1 piece) 17 Propane Tank Support (1 piece) 18 Wheels (2 pieces)
19 Grease Cup (1 piece) 20 Knob (1 piece) 21 Thumb Screw (2 pieces)
22 Propane Regulator (1 piece) 23 M6 Nut (1 piece) 24 M6x12 Screws (21 pieces)
25 Bulk Tank Adapter Hose (1 piece) NOT INCLUDED - LP Gas Bottle or LP
Gas Tank
