ASSEMBLY INSTRUCTIONS
Please read all instructions thoroughly before proceeding. Make sure all
the plastic packing material is removed before assembling
Find a large, clean area to assemble your griddle. Please refer to the parts list
and assembly diagrams as necessary.
Griddle assembly involves large components; therefore, it is advised to
have two people assemble the unit.

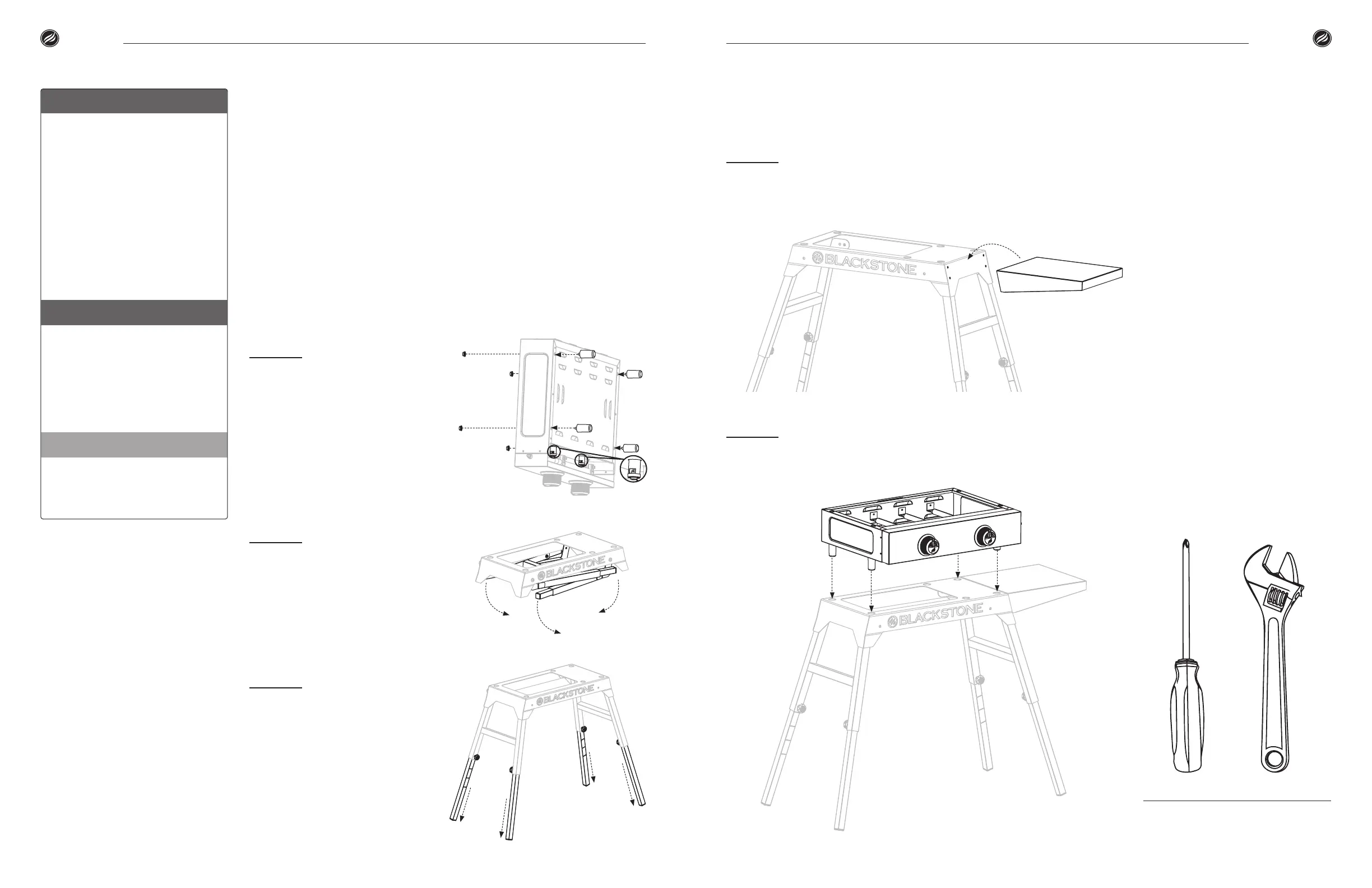

STEP
Place griddle on a
smooth at surface and attach the
four (4) griddle feet and the four(4)
M8 ange nuts to the bottom of
the griddle in the pre-threaded
holes. Ensure that the fuel nozzle is
housed within the burner opening.
STEP
Attach the side shelf by sliding the tear-shaped holes over the
pre-inserted screws on the right side of the griddle stand. Push the shelf
down to lock it into place.
STEP
Place the griddle on the stand. The four (4) feet on the bottom of
the griddle will line up with the corresponding holes for secure placement.
TOOLS NEEDED: Phillips Head
Screwdriver & Adjustable Wrench
STEP
Remove the griddle
stand from the packaging and open
the stand legs. Once the legs are
fully open, the locking pins will
engage. (To close the legs, pull on
the locking pins to disengage them.)
STEP
Adjust the legs to
desired height and turn the thumb-
screws to tighten.
