OWNER’S MANUAL | ASSEMBLY GUIDE MODELS:   
ASSEMBLY GUIDE
PARTS
QTY
1.1a
Bottom panel 
1.1b
Right panel

1.1c
Left panel

1.1d
Back panel

1.2a
Bale panel

1.2b
Background panel

1.2c
Front panel

1.3a
Control knob

1.3b
Zinc tapping screw 
1.3c
Knob bezel 
PARTS
QTY
1.4
Gas rail 
1.5a
Ignition needle

1.5b
Nickel tapping screw

1.6
H Burner

1.7
M6x12 screws

1.8a
M4 screws

1.8b
Hex nuts

1.9
Hat channels

2.1
Griddle top 
2.2
Hood 
PARTS
QTY
2.3
Hood washers 
2.4
Cap nuts

2.5
Rotation shafts

2.6
M6x20 screws

4.1
Handle grommets

5.1
Rear support panel

5.2
Front support panel

5.3
Right leg assembly

5.4
Left leg assembly 
5.5
Leg extensions 
PARTS
QTY
5.6
Thumb screws 
5.7
Leg caps

5.8a
M8x19 screws

5.8b
M8 nuts

5.9
Locking pins

8
Aluminum rivets
4
9
M6x16 screws
4

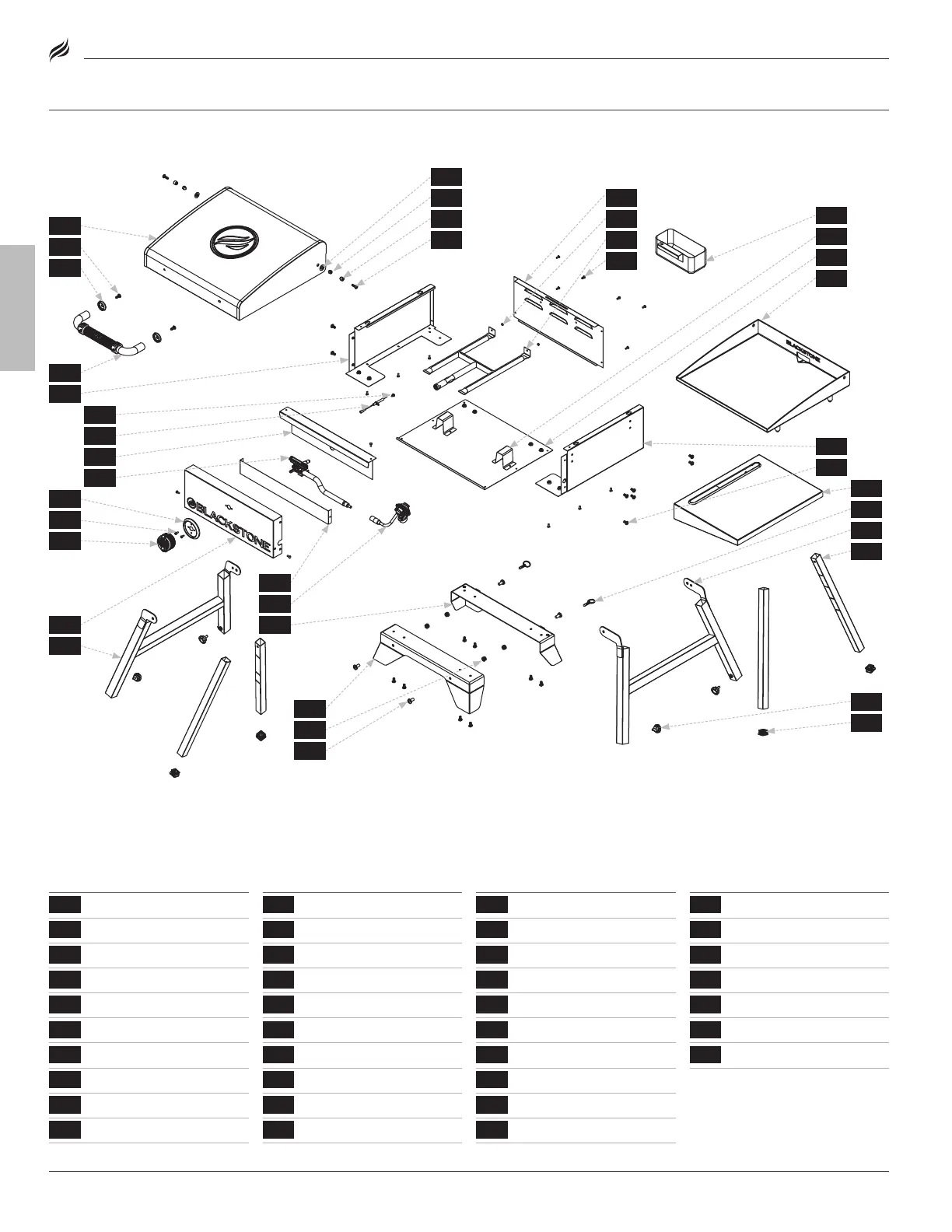

ExPLODED VIEW
PARTS LIST
4.1
6
2.1
2.2
4
2.3
2.4
2.5
2.6
5.3
5.4
5.5
5.6
5.7
5.1
5.2
7
3
1.1a
1.1b
1.1c
1.1d
1.6
1.2a
1.2b
1.2c
1.3a
1.3b
1.3c
1.4
1.5a
1.8a
1.5b
1.7
5.8a
5.8b
5.9
1.8b
1.9
9

