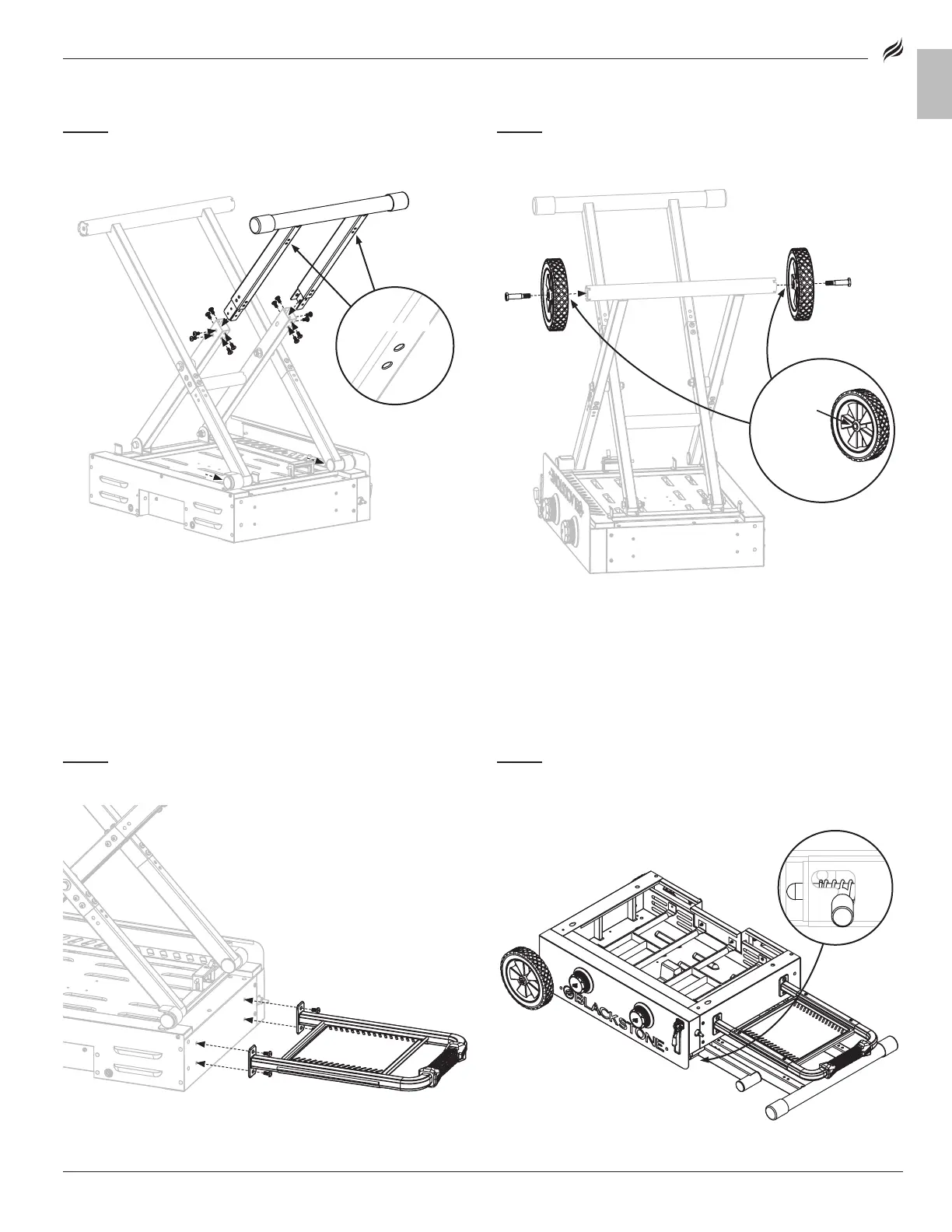

STEP 03
Set the upper legs in the C clamps. Use twelve (12) M6x12
bolts to install the lower leg assembly onto the pivoting leg
assembly.
STEP 04
Use two (2) M10x17 step bolts and bolt sleeves to install the
two (2) wheels to the wheeled leg assembly crossbar.
STEP 05
Use four (4) M6x12 bolts to install the right side shelf to the
right side of the griddle body.
STEP 06
Fold the legs. With the help of another person, turn the
griddle over so that it rests on its feet.
Ensure that that the leg locking pin is open.
holes face outholes face out
Chamfer Chamfer
(tapered end) (tapered end)
faces the faces the
crossbarcrossbar
