Supported formats and I/O
Video
Dual Link SD/HD-SDI
4:2:2 and 4:4:4 input and output
Analog HD/SD YUV RGB 10 bit 4:4:4
Component video input
HD Format support:
1920 x 1080 @ 24p 25p 30p 48i 50i
1280 x 720 @ 30p 50p 60p.
SD Format support:
NTSC and PAL
SDI Compliant
SMPTE 292M, SMPTE 259M, SMPTE 296M and ITU-R BT656
Color space support:
4:2:2 YUV, 4:4:4 YUV, 4:4:4 RGB
Audio
4/4 XLR balanced Analog inputs/outputs.
2 Analog RCA connectors (output only)
8/8 AES/EBU digital audio inputs/outputs.

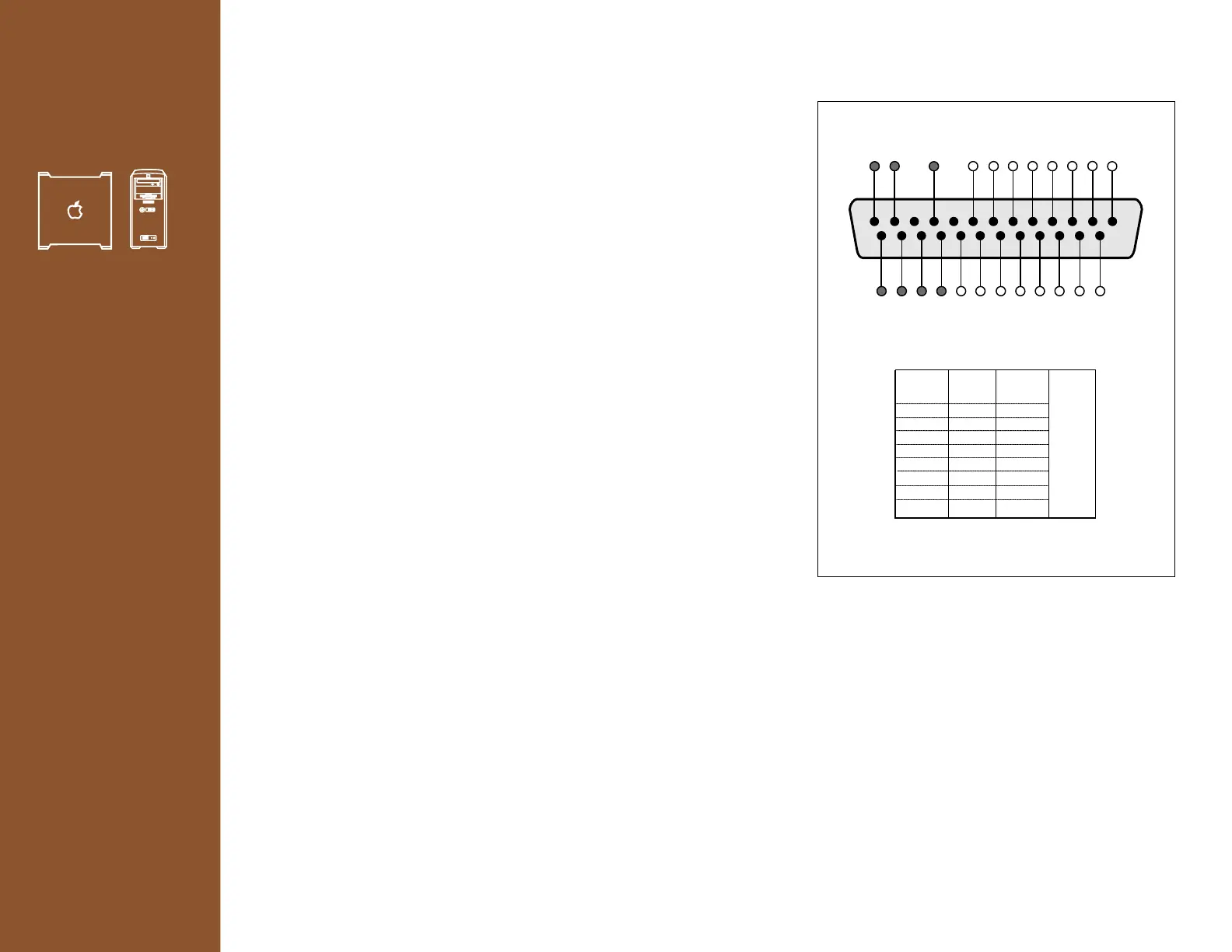

AES Audio – (see diagram)
DB-25 pin outs also compatible
with Yamaha™, Mackie™, Sony™
and Apogee™ connectors
12345678101213
141516171819202122232425
Hot Pins
(+)
1
2
3
4
5
6
7
8
Audio
Channels
1&2 IN
3&4 IN
5&6 IN
7&8 IN
1&2 OUT
3&4 OUT
5&6 OUT
7&8 OUT
Cold Pins
(-)
14
15
16
17
18
19
20
21
Ground
Pins
10
12
13
22
23
24
25
AES Audio Diagram
