Blagdon Pond Monsta - Getting to Know Your Monsta Collector; Monsta Collector Parts Description; Monsta Collector Spares Codes; Technical Specification and Performance

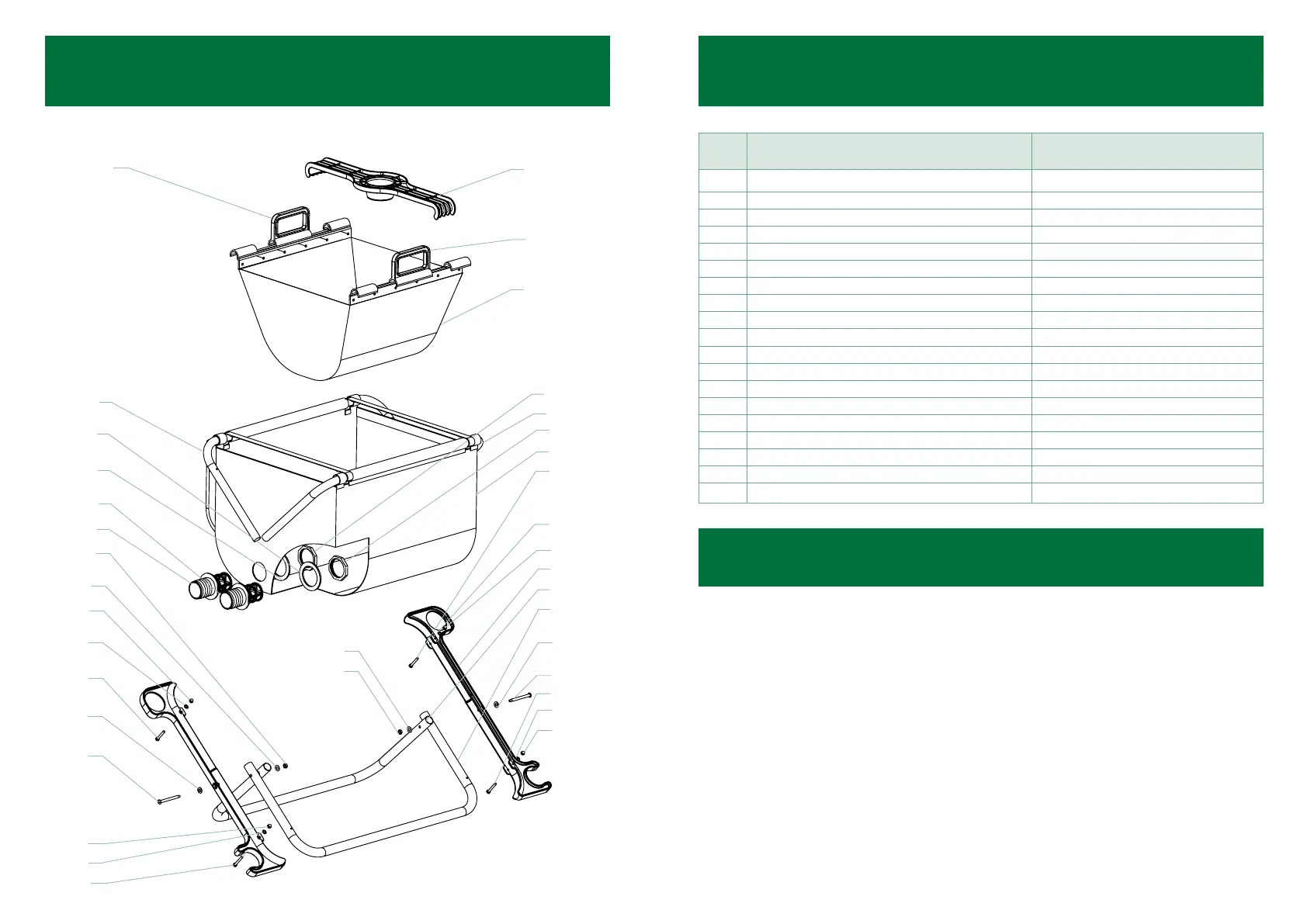

GETTING TO KNOW YOUR
POND MONSTA COLLECTOR
GETTING TO KNOW YOUR
POND MONSTA COLLECTOR
TECHNICAL SPECIFICATION & PERFORMANCE
Part Description Spare Code
1. Filter net handles 1050487
2. Collector water tight body N/A
3. Monsta waste inlet locater, support clip N/A
4. Filter mesh 1050494
5. Top left Collector pole N/A
6. Bottom right Collector pole N/A
7. Bottom left Collector pole N/A
8. Top right Collector pole N/A
9. Hose reel N/A
10. Centre screw N/A
11. Centre washer N/A
12. Centre back washer N/A
13. Centre nut N/A
14. Hose reel screws N/A
15. Hose reel washers N/A
16. Hose reel nuts N/A
17. Collector outlets N/A
18. Rubber outlet washer N/A
19. Outlet back nuts N/A
16
10
11
14
15
16
12
13
17
17
18
18
5
15
14
16
15
14
10
11
6
7
9
16
15
14
2
19
8
19
13
12
1
4
1
3
Voltage ................................................. 230V
Hertz ..................................................... 50Hz
Watts ..................................................... 350
Safety rating ......................................... IP68 CE
Cable fitted .......................................... 10m + 3m
Remote control handle battery ........... GA 23A Alkaline Battery
Maximum submerged depth ............... 5 metres
Maximum flow large impeller ............. 7800 lt/hr (1716 gal/hr)
Maximum flow medium impeller ....... 6500 lt/hr (1430 gal/hr)
Maximum flow small impeller ............ 5400 lt/hr (1188 gal/hr)
Maximum lift large impeller ............... 4.5m (14.7 ft)
Maximum lift medium impeller .......... 3.6m (11.8 ft)
Maximum lift small impeller .............. 2.9m (9.5 ft)
