Blanco ATOS-S ND - Page 7

2
Parts list BLANCOATOS-S ND
Lever
Hot /Cold indication
Fixing screw
Covering ring
Cartridge retaining ring
Cartridge
Body + Adaptor
Adapter shower hose
Spray hose
Spray hose seal top
Spray hose seal bottom
Weight
Shower head
Flow Straighter
Inner body
Teflon ring
O ring seal
O ring seal
Teflon ring
Fixing kit
Flexi-hose
Flow restrictor low-pressure
Non-return valve
T-piece
Seal flexi-hose
Technical data
Use
• Low pressure store and boilerr
• Not suitable for pressurised hot water
tank / continuous flow water heater
Operating pressure
• Min. 0.5 bar
• Max. 10.0 bar
Temperature
• recommended 60° C
• maximum 80° C
Symbols
right wrong recommended
14
13
12
11
10
9
8
7
6
5
4
3
2
1
25
24
23
22
21
20
19
18
17
16
15
Installation
Illustrations
Tap hole: 35 mm
- Attach tap
NOTE: don't forget the seal between tap
and supporting surface!
Rinse through corner valve
Recommendation: fit dirt filter
further illustrations on the back fold-out flap
Overview connection low-pressure fitting with
shower hose
– Connect flexi hoses
– Spray hose guide
Rinse perlator/ jet regulator
When tap has been fitted check:
tightness, movement, full jet of water
Care
Please note the following advice and the
illustrations on the back fold-out flap.
Illustrations
- Use soft (microfibre) cloth and mild cleaning
agent
- Take care with hard objects
- Using the hose spray
- Cleaning the perlator/ jet regulator with vinegar
Important

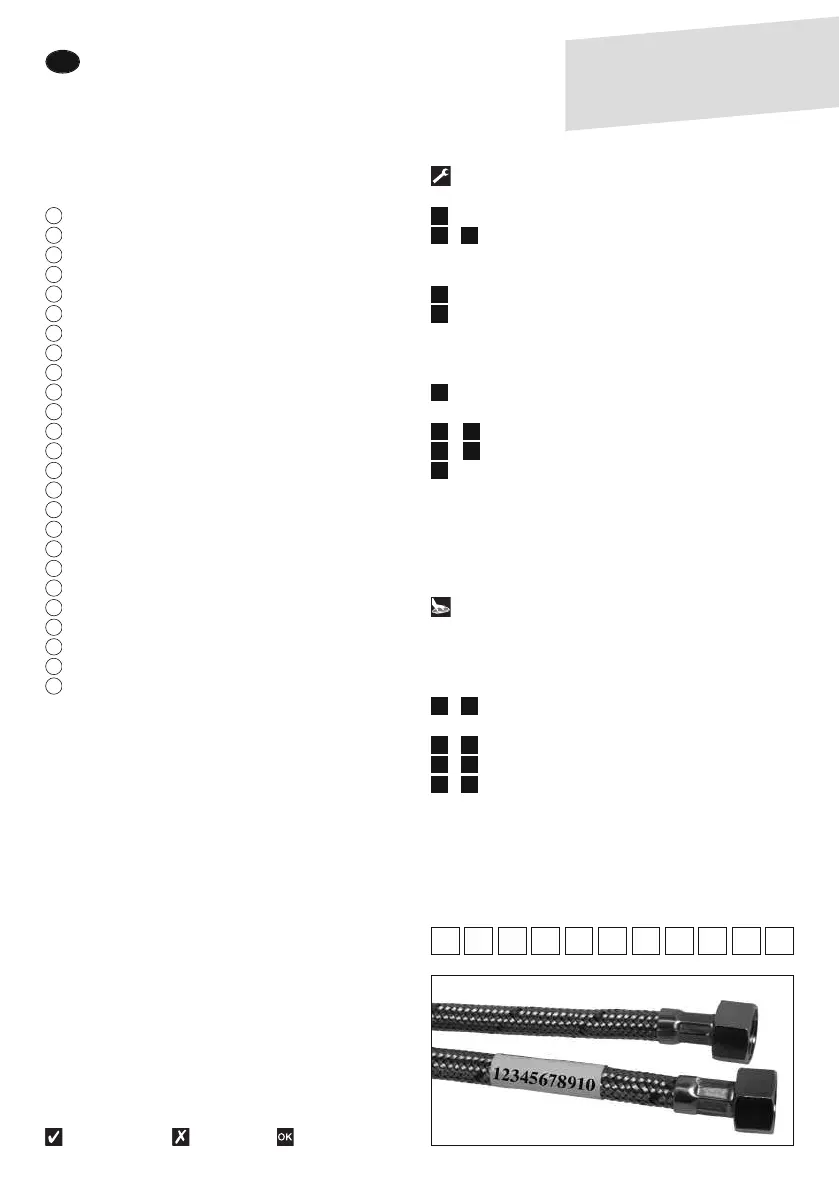

in the event of a query, please enter the 11-digit Article
Number (see wrapper on the cold water hose of your
tap) .
6
5
2 4
1
16
13 15
8 12
7
2726
2522
2120
1917
Installation and care instructions
We have put together the most important product information
to enable you to benefit from the high degree of functionality and the
first class comfort provided by BLANCO taps.
GB
C
o
ng
r
a
t
ul
a
t
i
o
ns
o
n
b
uy
i
ng
t
hi
s
B
LAN
C
O
t
a
p
– w
e
ho
p
e
y
o
u
a
re
d
e
l
i
g
ht
e
d
w
i
t
h
i
t
!
Example
Errors and alterations excepted
