3.10 Separator and hopper
The abrasive separator is mounted to the end of the recovery duct. It
separates the abrasive from contaminants and feeds the cleaned
abrasive back to the abrasive storage hopper.
A wire mesh is fitted to prevent any coarse contaminants from getting
into the blast wheel. In order to clean the wire mesh drawer the drawer
can be removed from the side.

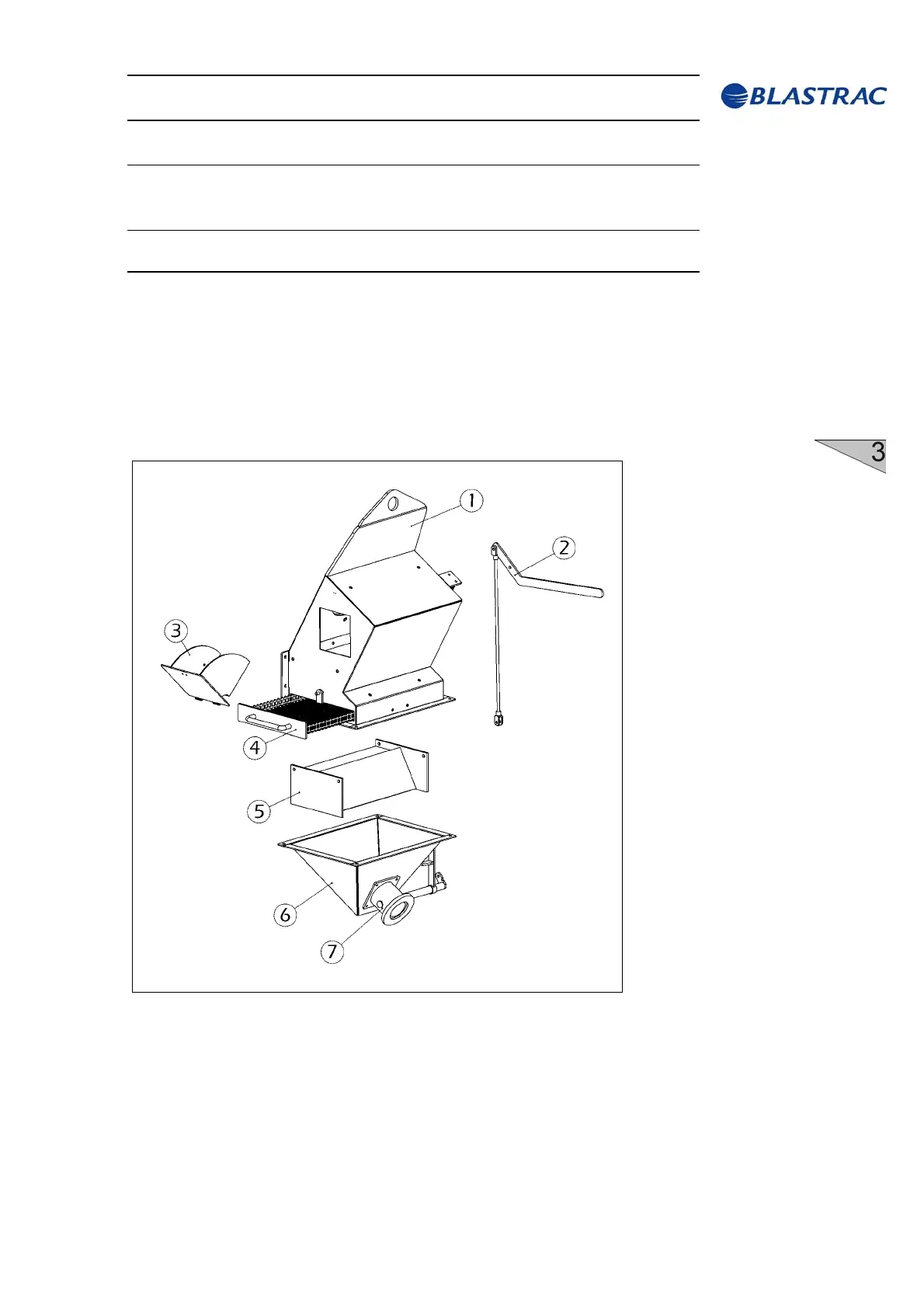

Fig. 3.7
1 Separator
2 Shot valve handle
3 Separator door
4 Separator tray
5 Baffle plates
6 Abrasive storage hopper
7 Shot valve
