3.7 Control box
The control box is equipped with all control elements and instruments
for monitoring and controlling the blast cleaning machine.

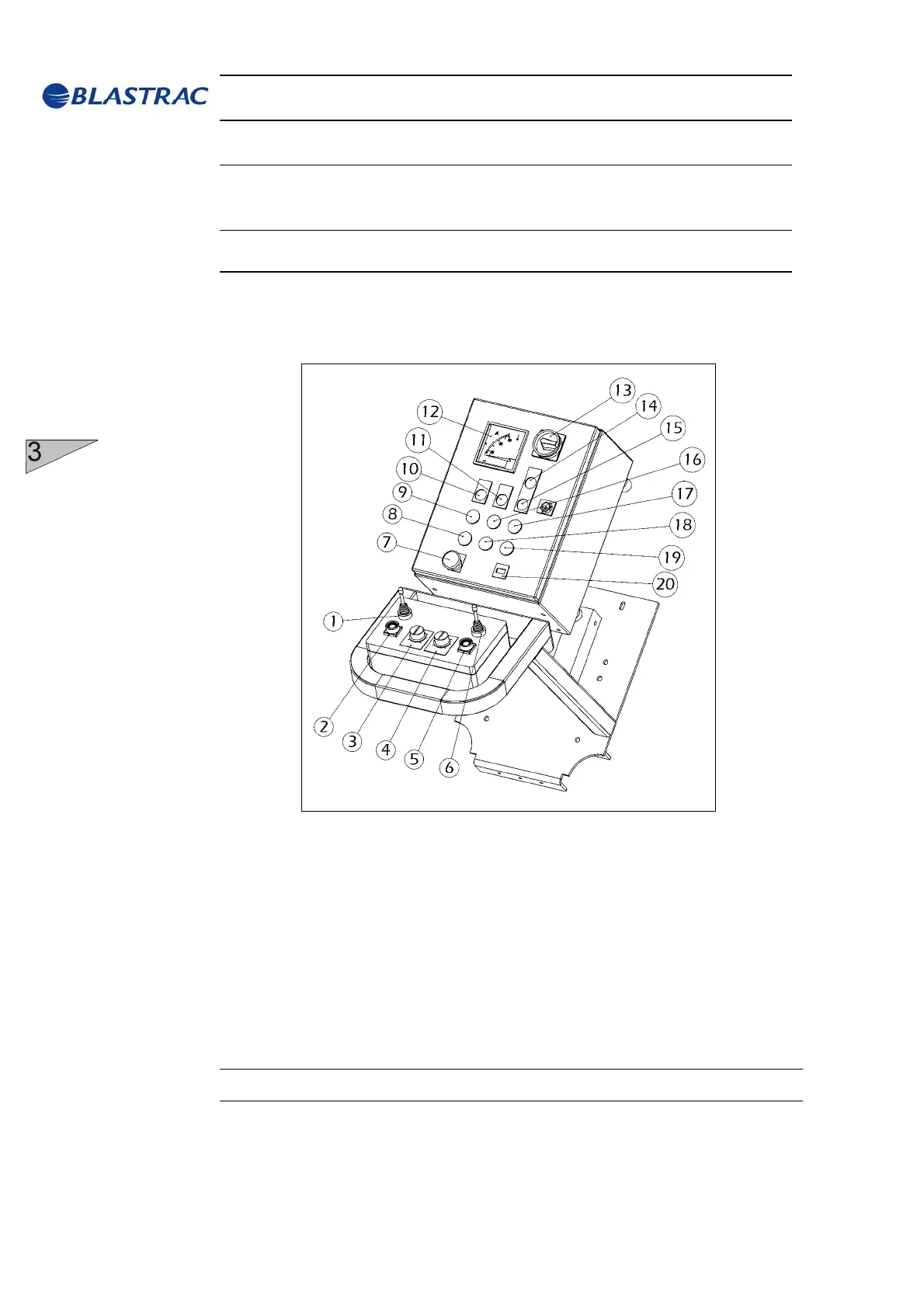

Fig. 3.3
1 Drive wheel joystick left 11 Control lamp “Fan”
2 Left motor “STOP” 12 Ammeter
3 Drive speed control 13 Main switch
4 Tracking control 14 Control lamp voltage
5 Right motor “STOP” 15 Control lamp “Main blast”
6 Drive wheel joystick right 16 Push button “Fan ON”
7 Emergency shutdown switch 17 Push button “Main blast ON”
8 Push button “Drive OFF” 18 Push button “Fan OFF”
9 Push button “Drive ON” 19 Push button “Main blast OFF”
10 Control lamp “Drive” 20 Hour counter
Main switch
The main switch is located on the main box at the front of the machine.
It has to be switched on before operation.
