EBE 350 E Operating Instructions
Maintenance
7.9 Changing the liners

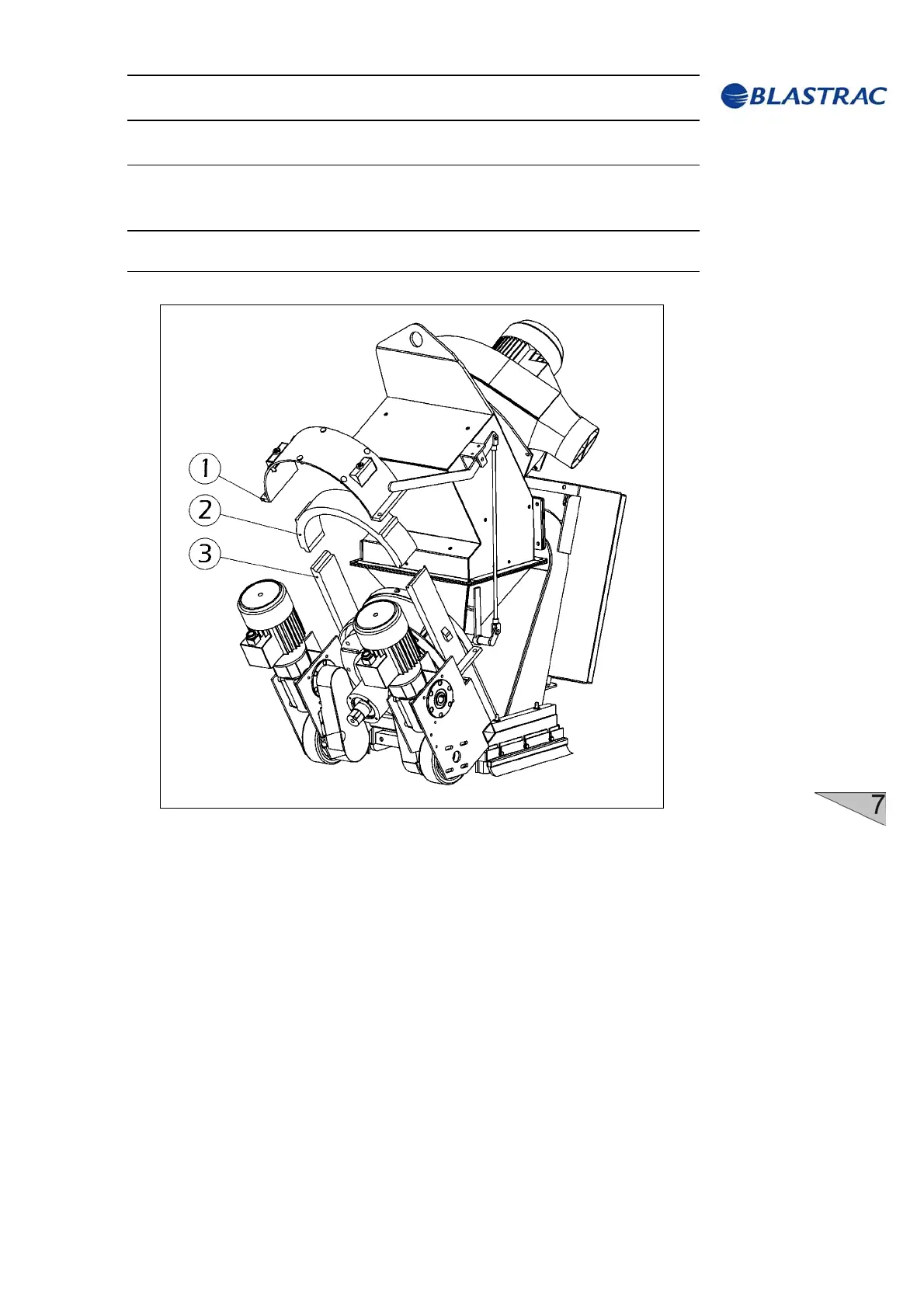

Fig. 7.5
1 Top liner cover
2 Top liner
3 Side liner
Unscrew the top liner cover and remove it.
Take the top liner out of the blast housing.
Take out the left and right hand liners.
Replace all worn items. Clean the liners and the inside of the
blast housing thoroughly. Re-assemble the machine in reverse
order, using kit between the top liner and the side liners, and
between the top liner and the front and rear plates of the blast
housing. Make sure that the top liner sits close at the edges of
the side liners.
13
