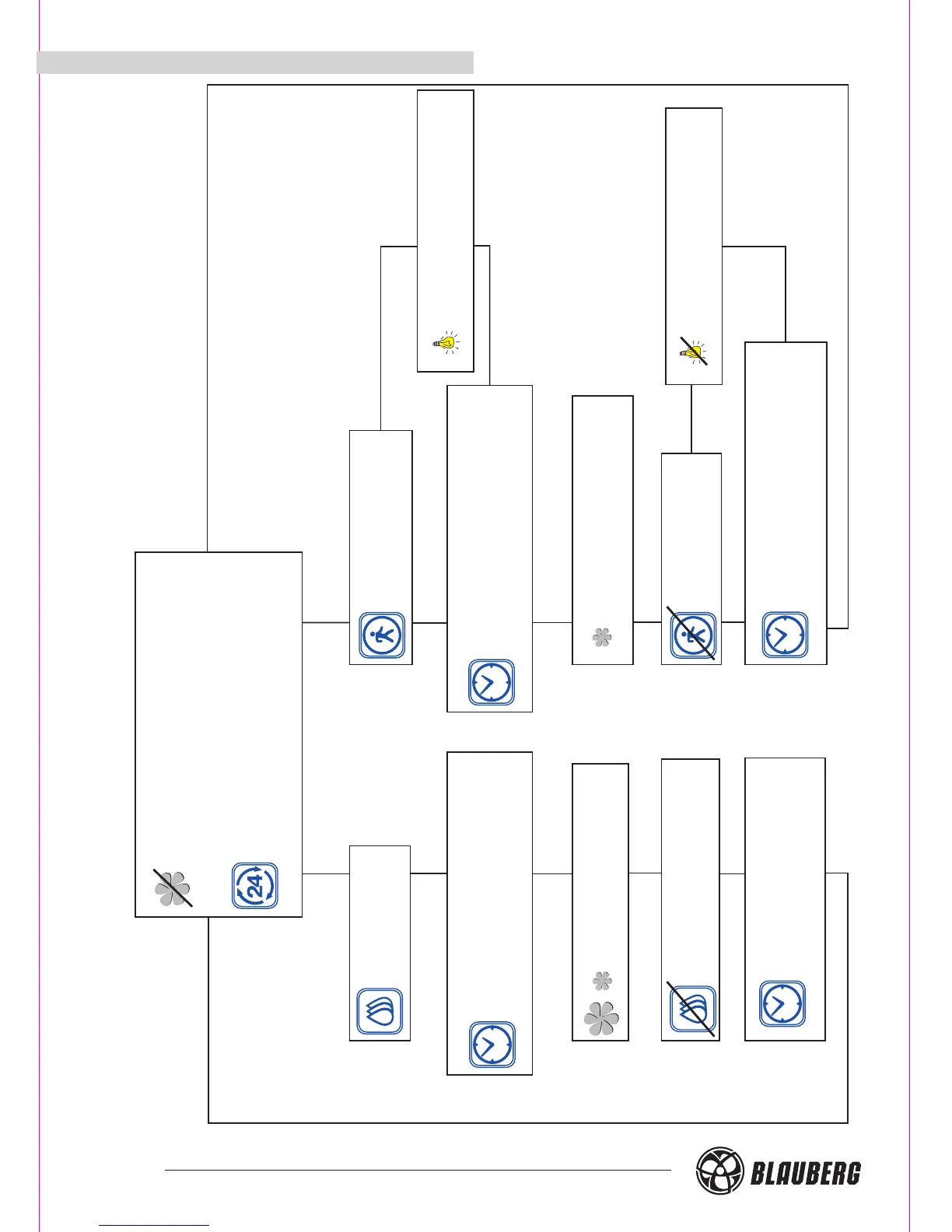

OPERATING PATTERN - DIAGRAM 1
SLEEP Mode
(fan does not run)
or
24 HOURS mode
3
Fan runs with air flow 40/33 m /h
Turn-on delay timer
starts (0-2-5 min)
Humidity
changes
Motion sensor
is activated
MAXIMAL (QUIET)
mode is turned on
Fan operates in
QUIET mode
Signal to LI terminal
(light is off)
Humidity
stabilization
No movement
is detected
Signal to LI terminal
(light is on)
Humidity timer starts
(30-45-60 min)
Turn-off delay timer
starts (5-15-30 min)
Turn-on delay timer
starts (0-2-5 min)
