ARRIFANA 15 7
ASSEMBLY OF EXHAUST HOSE, HOSE INLET, HOSE OUTLET, WINDOW ADAPTOR
AND WINDOW SLIDER
(Fig. 4)
 Extend each end of the exhaust hose by about 8 cm and attach the hose
inlet and hose outlet to opposite ends by rotation the inlet/outlet in a
counter clockwise direction approximately 3 to 4 turns, making sure that
the hose wire is well threaded into the hose inlet and outlet.
 Attach the window adaptor to the hose outlet by pressure fit
 Clip the window adaptor into the window slider. Take care to not break the
tabs on the window adaptor when disconnecting from the window slider.

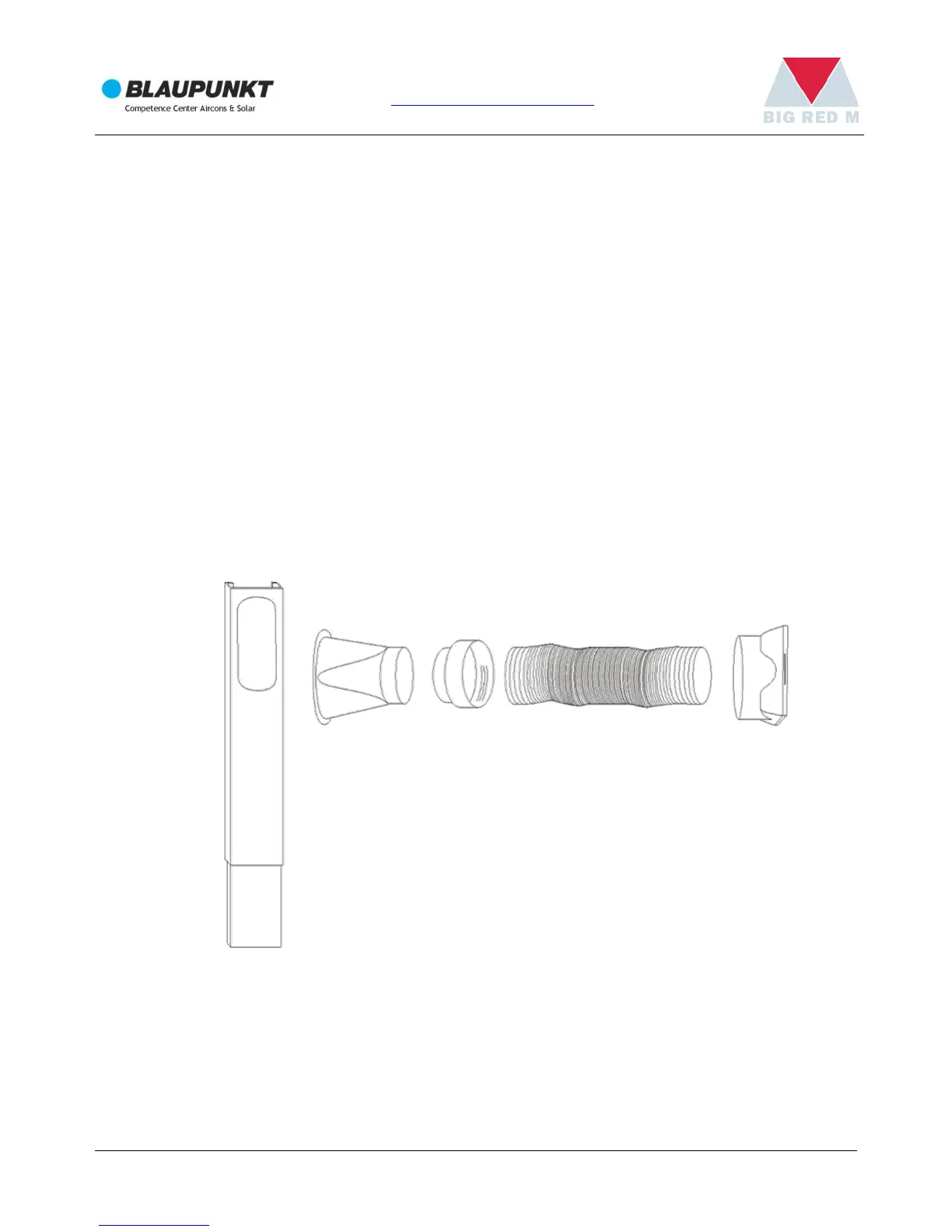

Fig. 4
Hose
inlet
Hose
Hose
outlet
Window
adapter
Window
Slider
