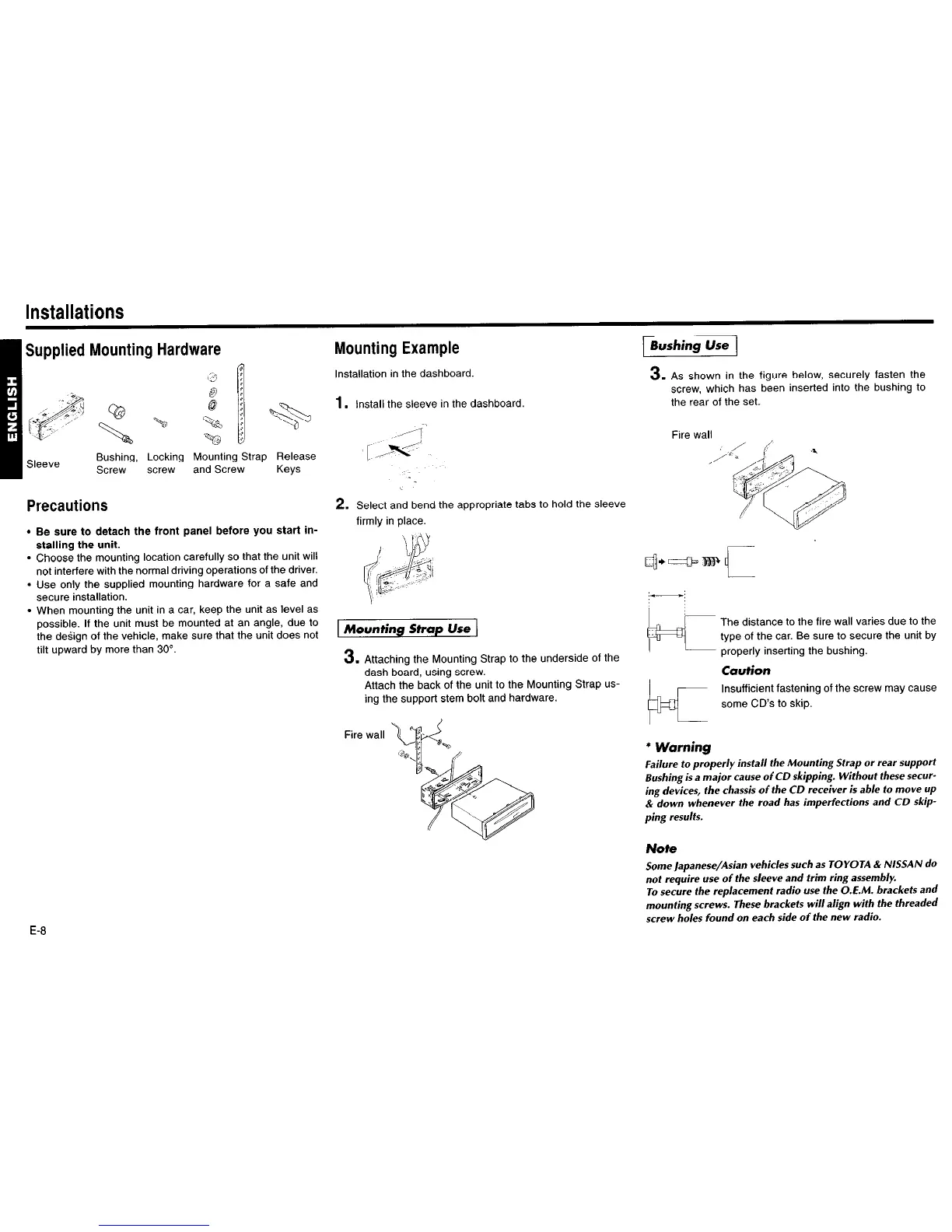

Supplied Mounting Hardware
Mounting Example
Installation in the dashboard.
1.
Install the sleeve in the dashboard
Mounting Strap Release
and Screw Keys
,/1;
[ ,‘\’
Precautions
l
Be sure to detach the front panel before you start in-
stalling the unit.
- Choose the mounting location carefully so that the unit will
not interfere with the normal driving operations of the driver.
- Use only the supplied mounting hardware for a safe and
secure installation.
- When mounting the unit in a car, keep the unit as level as
possible. If the unit must be mounted at an angle, due to
the deSign of the vehicle, make sure that the unit does not
tilt upward by more than 30”.
2. Select and bend the appropriate tabs to hold the sleeve
firmly in place.
Mounting Strap Use
3. Attaching the Mounting Strap to the underside of the
dash board, using screw.
Attach the back of the unit to the Mounting Strap us-
ing the support stem bolt and hardware.
Fire wall
3.
As shown in the figure below, securely fasten the
screw, which has been inserted into the bushing to
the rear of the set.
Fire wall
The distance to the fire wall varies due to the
type of the car. Be sure to secure the unit by
properly inserting the bushing.
Insufficient fastening of the screw may cause
some CD’s to skip.
* Warning
Failure to properly install the Mounting Strap or rear support
Bushing is a major cause of CD skipping. Without these secur-
ing devices, the chassis of the CD receiver is able to move up
& down whenever the road has imperfections and CD skip-
ping results.
Note
SomeJapanese/Asian
vehicles such
as TOYOTA & NISSAN do
not
require use
of
the sleeve and trim ring assembly.
To secure the replacement radio use the O.E.M. brackets
and
mounting screws. These brackets will align with the threaded
screw ho/es found on each side of the new radio.
E-8
