To select the cameras
➮ keep pressing the CAM button on
the CCU01 until the required
camera is displayed.
The order is as follows:
CAM1>CAM2>CAM3.
If the CAM button is pressed once more,
the initial signal (video or TravelPilot) will
be displayed again.
Switching source in the cabin
The video signal (video and DVD
player), the TravelPilot map and the
picture from the observation camera
(camera 3) can be displayed on the
monitors in the cabin.
To switch on the monitors
➮ on the CCU01, press the CABIN
VIDEO or MAP button.
To switch between video and map
display
➮ press the MAP button on the
CCU01.
The source is switched to the
observation camera using a separately
installed switch that is connected to Plug
III, Pin 4 (5 V - 24 V).
Note:
Camera 3 has priority over the video and
the map display.
Menu settings
Picture settings on the CLX01 can be
adjusted separately for the video mode
(camera, video source) and the
TravelPilot mode.
In video mode, you can adjust bright-
ness, contrast, colour, picture sharp-
ness, format and system; and in
TravelPilot mode, brightness, contrast,
format and system.
In the FORMAT menu, you can choose
between NORMAL, CINEMA, FULL
and WIDE.
CONTROLS AND SETTINGS
Settings in video mode
➮ On the CCU01, switch to COCK-
PIT VIDEO or CAM.
To select a function
➮ Keep pressing the MENU button
until the required menu item
appears.
To adjust the function
➮ press the or button on the
monitor.

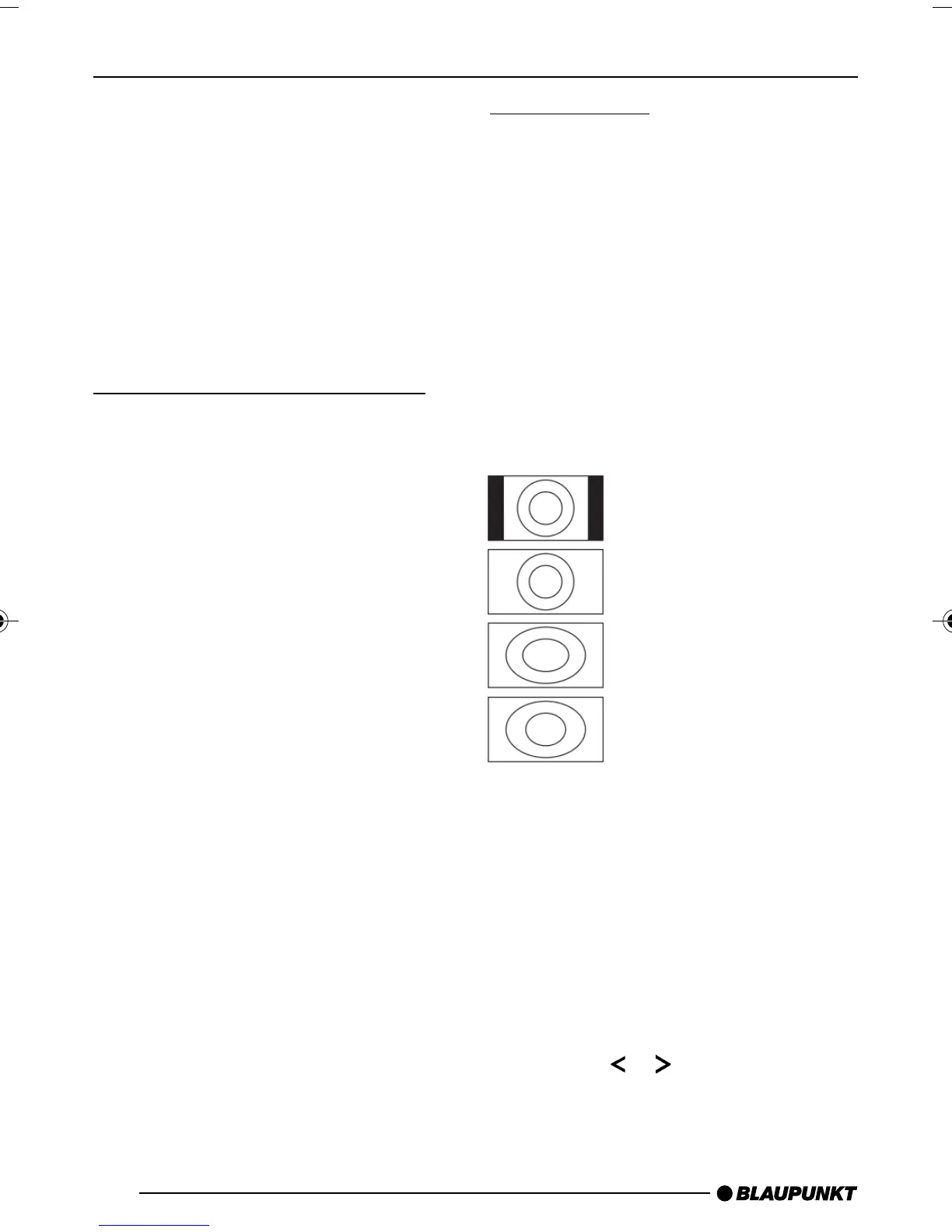

NORMAL
Input 4:3
CINEMA
Input 16:9
FULL
Input 4:3
WIDE
Input 4:3
