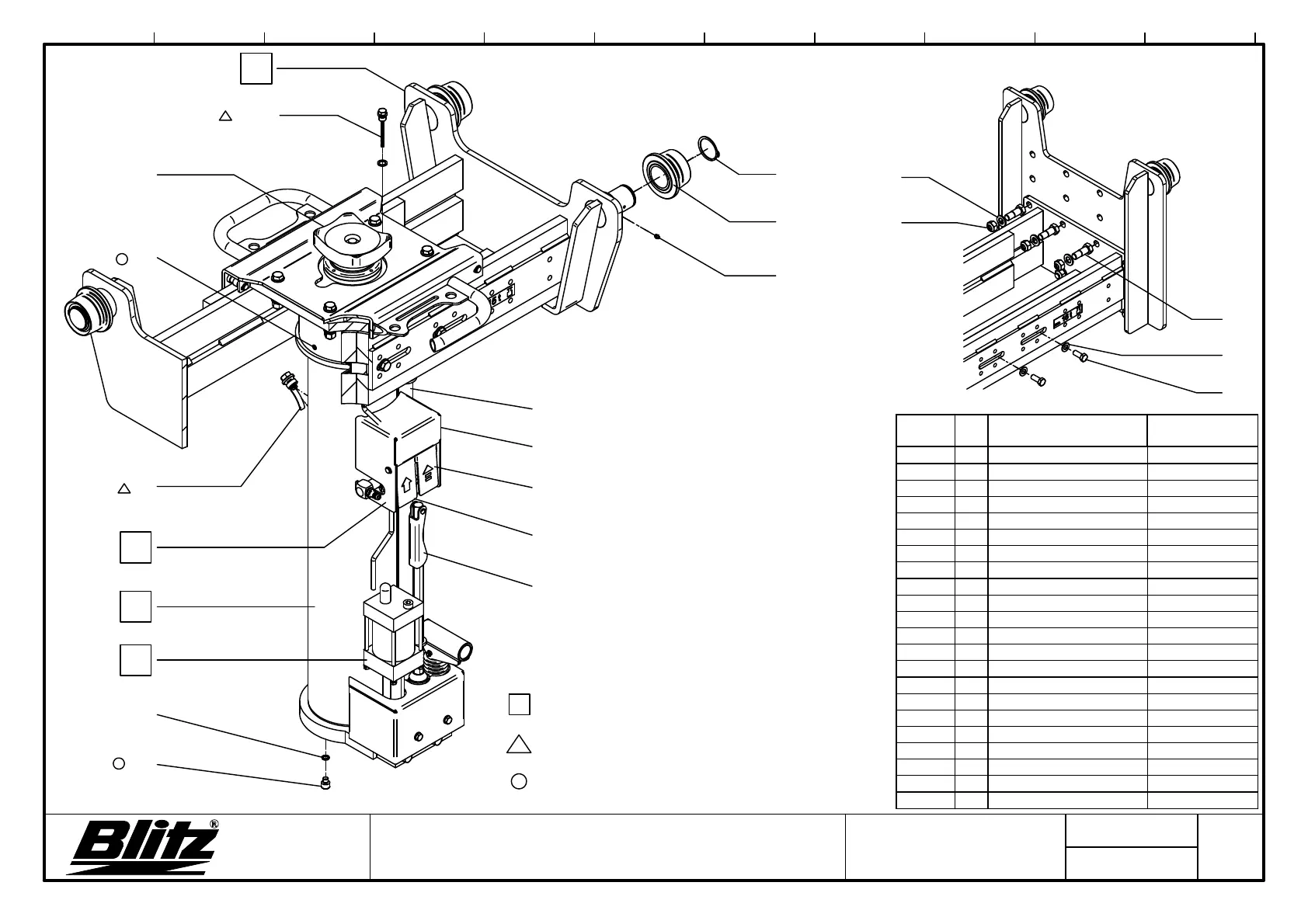

Ersatzteilliste Blitz S 15 Vario
shirth
11/04/18
Blatt 1
von 6
012345678910
BlitzRotary GmbH
Hüfinger Straße 55
78199 Bräunlingen
= komplette Baugruppe
= Schmierstelle
= Ölablaßschraube
3
2
4
1
15
23
30
17,16
417
416
405
29
37
46
45
28
56
57
Pos.
Pc.
Description (en)
Order-No.
1 1 Hydraulic pump 3173000
2 1 Control 3662002
3 1 Lifting unit 124661
4 1 Undercarriage Vario Flat 126005
4 1 Undercarriage Vario Deep 126019
4 1 Undercarriage Vario UNI 124601
28 1 Release lever 240 mm 3623030
29 1 Pump rod
3320900
30 1 Support plate 3325910
37 1 Control box 124815
45 1 Flap load stroke 3662020
46 1 Flap quick stroke 3662025
56 1 O-ring 706801
57 1 Cylinder screw 7008340
58 16 Disk 703414
59 16 Hex nut 703304
60 4 Disk 703413
61 4 Hexagon bolt 700222
62 16 Fitting screw 125247
405 1 Grease nipple 706351
416 1 Sheave 33253311
417 1 Retaining ring 704028
58
59
60
61
62
Fahrgestell 15t Vario UNI
