Blitz GHUSE Series - Page 26

E03100713

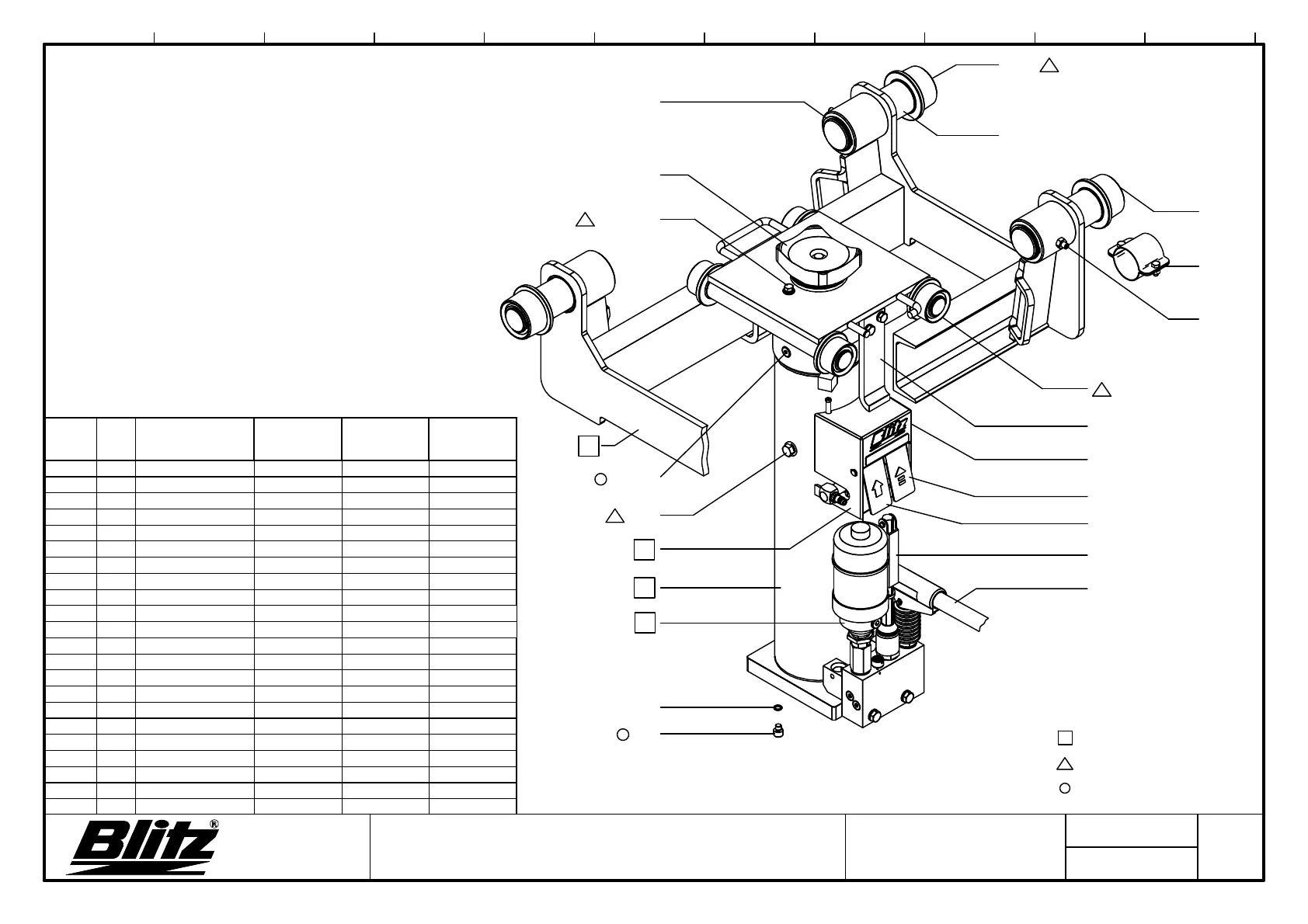

Grubenheber Übersicht
shirth
25/02/08
012345678910
BlitzRotary GmbH
Hüfinger Straße 55
78199 Bräunlingen
27
28
1
3
2
336
314,315
379,380
910
970
31
900
414
425
413
416
417
975
405
4
= komplette Baugruppe
= Schmierstelle
= Ölablaßschraube
Pos. Stk.
Description (en)
Order-No.
Order-No.
14 t
Order-No.
20 , 30 t
1 1 Hydraulic pump
21Control
3 1 Lifting unit
4 1 Undercarriage
27 1 Cylinder screw 7008340 7008340 7008340
28 1 O-ring 706801 706801 706801
31 1 Release lever 240 mm 3602030 3602030 3602030
31 1 Release lever 400 mm 3623030 3623030 3623030
40 1 Flap quick stroke wide 3609020 3609020 3609020
41 1 Flap load stroke slim 3662020 3662020 3662020
42 1 Flap quick stroke slim 3662025 3662025 3662025
43 1 Control box 3600270 3600270 3600270
405 1 Grub screw 701255 701255 701255
413 1 Guide bolt 3324413 3325413 -
414 1 Retaining ring 704032 704032 -
416 1 Sheave 3322416 3322416 3326416
417 1 Retaining ring 704028 704028 704031
425 1 Needle rollers 705381 705381 705381
900 1 Pump rod
3320900
3320900 3320900
910 1 Support plate 3325910 3325910 3326910
970 1 Tilt protection 3324970 3325970 3325970
975 1 Clamping bracket 3239974 3239974 -
41
42 (40)
43
