Blitz GHUSE Series - Page 27

E18041008
shirth
10/04/18
Blatt 1
von 1
012345678910
BlitzRotary GmbH
Hüfinger Straße 55
78199 Bräunlingen
21
336
322
334
350
378
300
324
326
27
348
349
323
316
28
337
315
14
329
356
325
330
353
23
353
14
315

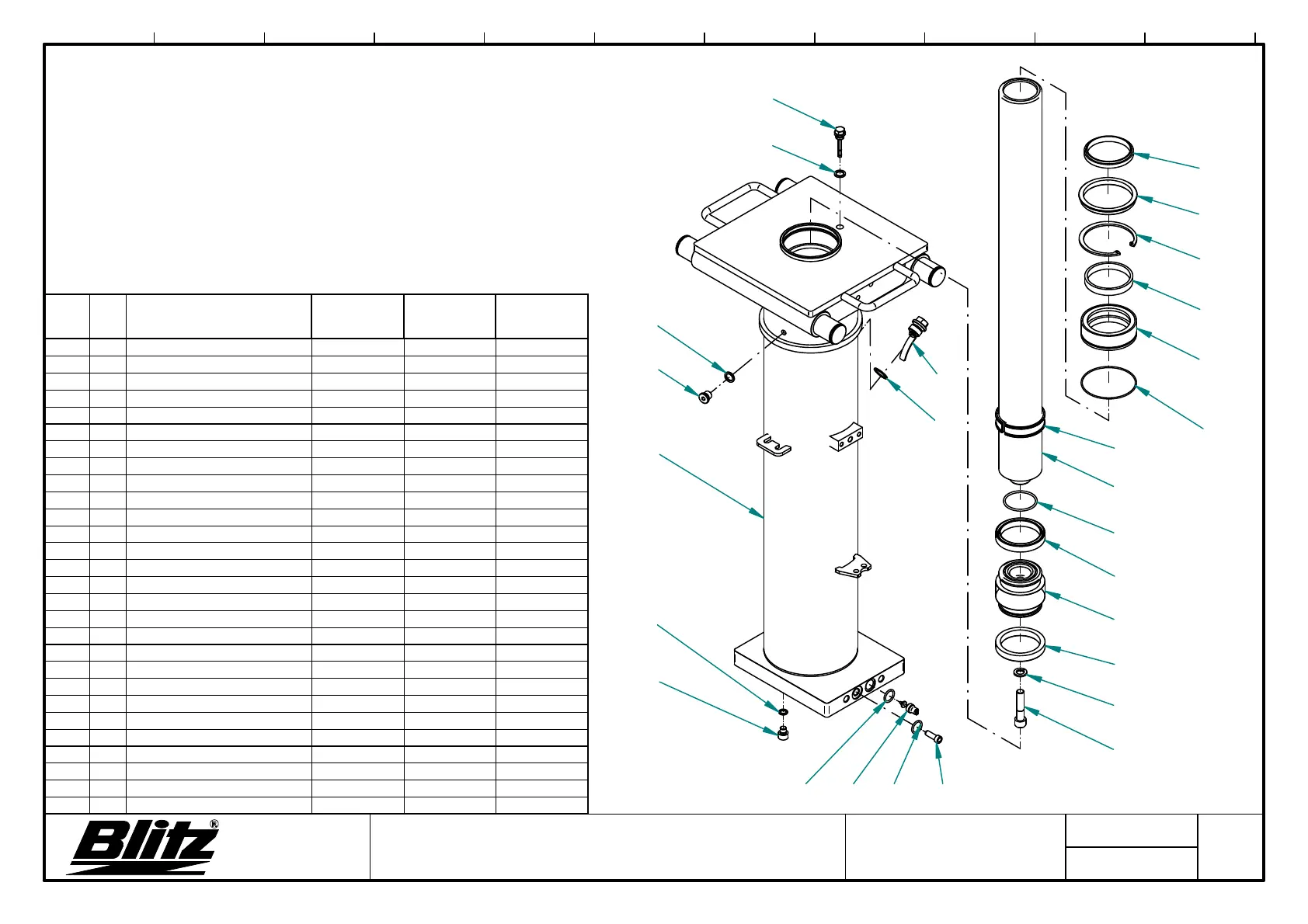

Hubeinheit kpl. GH 4-30 ( GHL4-30 )
Pos. Stk.
Description (en)
Order-No.
Order-No.
15 t
Order-No.
16, 20, 30 t
14 2 O-ring 707614 707614 707614
20 1 Lowering brake valve 751702 751702 751702
21 1 Sieve insert cpl. 3142015 3142015 3142015
27 1 Cyl. screw DIN 912 7008340 7008340 7008340
28 1 Sealing ring Cu 706801 706801 706801
300 1 Lifting unit welded 600 mm (GH) 3602300 3603300 3605300
300 1 Lifting unit welded 800 mm (GHL) 3623003 3624003 3626003
315 2 Sealing ring Cu R 706902 706902 706902
322 1 Piston rod 600 mm (GH) 3263322 3264322 3604322
322 1 Piston rod 800 mm (GHL) 3268322 3269322 3625322
323 1 Retaining ring black 704131 704132 -
324 1 Stuffing box 3602324 3107390 3107324
325 1 Wiper ring w. metal sheath 707927 707930 707931
325.1 1 Intermediate wiper ring 36023251 - -
329 1 O-ring 707635 707634 707645
330 1 Rod seal profile RB
708006
708014 707883
334 1 Spacer bushing 3263334 3264334 3604334
336 1 Oil filler plug 3260336 3260336 3260336
337 1 Sealing ring Cu 706812 706812 706812
348 1 Cyl. screw DIN 912 701012 700885 700886
349 1 Spring washer galvanized DIN 127 703515 7035070 7035070
350 1 Piston 3263350 3264350 3265350
351 1 Piston seal - 707842 707886
353 2 Cyl. seal kit profile E2 708012 123148 707851
356 1 O-ring 707667 707667 -
357 1 O-ring - - 707667
378 1 Oil dipstick 3601378 3601378 3601378
399 1 Seal kit lifting unit cpl. 3602399 3603399 3604399
