Blitz GHUSE Series - Page 28

E18041007

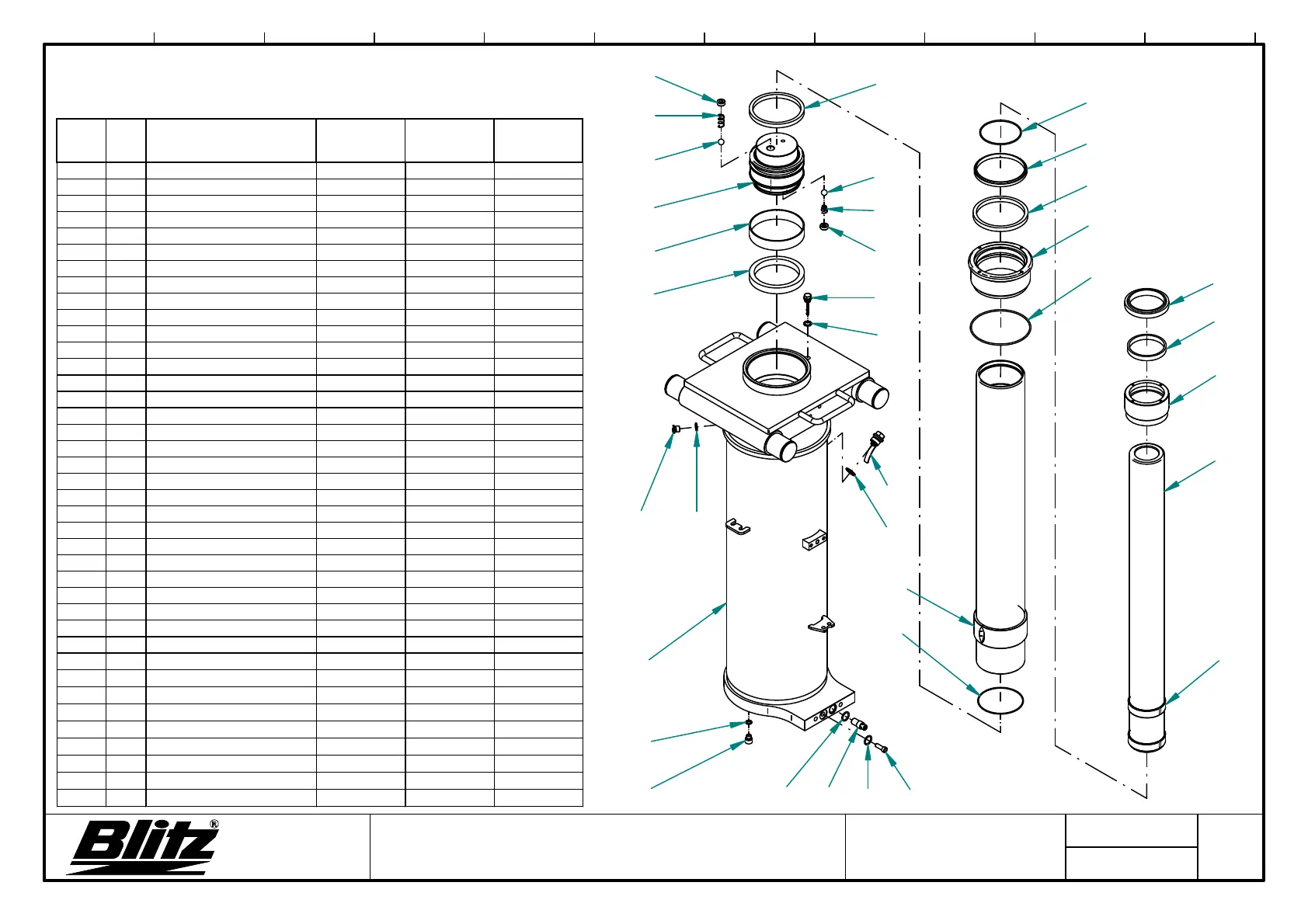

Hubeinheit kpl. GHUST 10/4 ; 15/6 ; 15/15 ; 20/15
shirth
10/04/18
Blatt 1
von 1
012345678910
BlitzRotary GmbH
Hüfinger Straße 55
78199 Bräunlingen
Pos. Stk.
Description (en)
Order-No.
Order-No.
15/6
Order-No.
15/15 20/15
3 1 Lifting unit cpl. 3642003 3643003 3644003
14 2 O-ring 707614 707614 707614
20 1 Lowering brake valve 751702 751702 751702
21 1 Sieve insert cpl. 3142015 3142015 3142015
27 1 Cyl. screw DIN912 7008340 7008340 7008340
28 1 Sealing ring Cu 706801 706801 706801
300 1 Lifting unit welded 3602300 3603300 3605300
315 2 Sealing ring Cu 706902 706902 706902
316 1 Locking screw 705525 705525 705525
323 1 Retaining ring black 704042 704132 -
324 1 Stuffing box 3642324 3107390 3107324
325 1 Wiper ring w. metal sheath 707929 707930 707931
326 1 Intermediate wiper ring 36423251 - -
329 1 O-ring 707635 707634 707645
330 1 Rod seal profile RB
707887
708014 707883
334 1 Spacer bushing - 3292334 -
336 1 Oil filler plug 3260336 3260336 3260336
337 1 Sealing ring Cu 706812 706812 706812
350 1 Piston 3281350 3282350 3107350
351 1 Piston seal 707937 707842 707886
353 2 Cyl. seal kit profile E2 708012 123148 707851
357 1 O-ring 707740 707674 707637
358 1 Tappet tube 3290358 3292358 -
359 1 Tappet tube cpl. - - 3720359
378 1 Oil dipstick 3601378 3601378 3601378
380 1 Telescopic piston rod 3290380 3292380 3107380
386 2 Steel ball 707306 707306 707306
387 1 Conical spring 2509014 2509014 2509014
388 2 Set ring 3281388 3281388 3281388
389 1 Compression spring 3720389 3720389 3720389
390 1 Stuffing box 3290390 3292390 3720390
391 1 Wiper ring w. metal sheath 707924 707925 707930
392 1 Guard ring 3281392 3282392 -
393 2 Spacer bushing 3281393 3282393 3720393
394 1 O-ring 707626 707666 707693
395 1 Rod seal profile RB 708004 707872 708014
396 1 Retaining ring galvanized 704036 704037 -
397 1 DU special socket - - 794102
999 1 Seal kit cpl. 100780 100781 3720999
387
324
350
380
21
336
388
378
300
359
389
390
393
27
316
28
337
315
386
14
357
329
394
353
330
351
391
325
395
20
397
14
315
386
388
GHUSTP 10/4 ; 15/6 ; 15/15 ; 20/15
