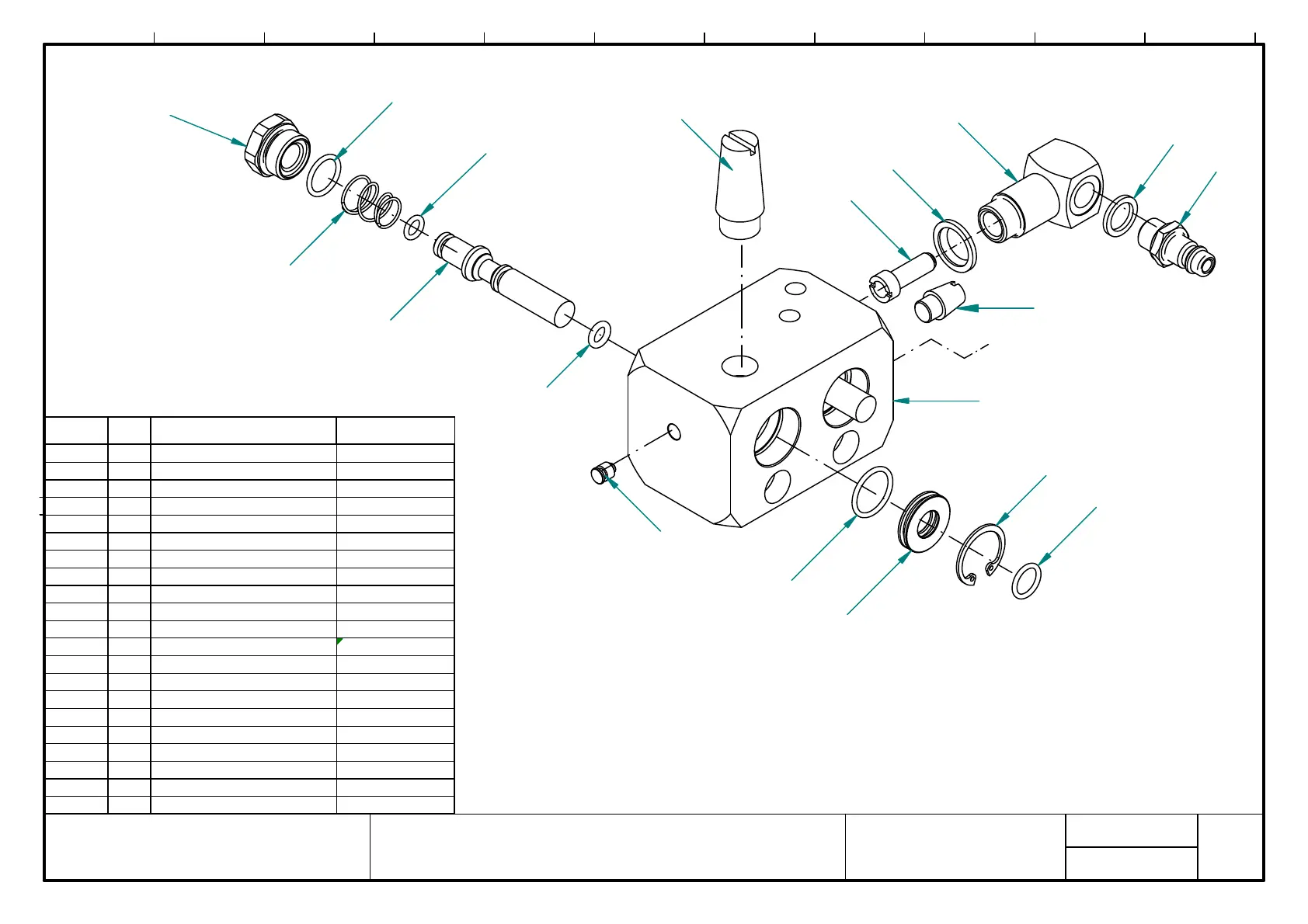

Blitz GHUSE Series - Page 29

BlitzRotary GmbH
78199 Bräunlingen
3662002
Steuerung f. Bedienseite 1
shirth
25/02/08
Blatt 2
von 4
012345678910
262
201
266
Pos. Stk.
Description (en)
Order-No.
201 1 Valve body 3294201
202 2 Valve tappet 32942021
203 2 O-ring 7 x 2 707604
204 2 O-ring 7 x 2.5 7076891
209 2 O-ring 12 x 2 707609
213 2 O-ring 15 x 2 707684
214 2 Spring cone No. 199 3616214
215 2 Sealing cap 3294215
220 2 Ring 3294220
221 2 O-ring 20 x 2 707615
222 2 Retaining ring black J 26 / DIN 47
2
704105
235 1 Muffler G3/8" 708953
262 1 Coupling spout 2709105
263 1
Sieve insert cpl.
3142015
264 1 Spout block 3259264
265 1 Annular disk member hit 706705
266 1 Sealing ring Cu 706902
267 1 Seal plug 707034
274 1 Muffler R 1/8" 708950
298 1 Air connection cpl. 104525
299 1 Seal kit cpl. 3662299
263
264
202
215
220
214
222
265
267
203
209
221
213
204
274
235
