Blitz GHUSE Series - Page 32

BlitzRotary GmbH
78199 Bräunlingen
3174000

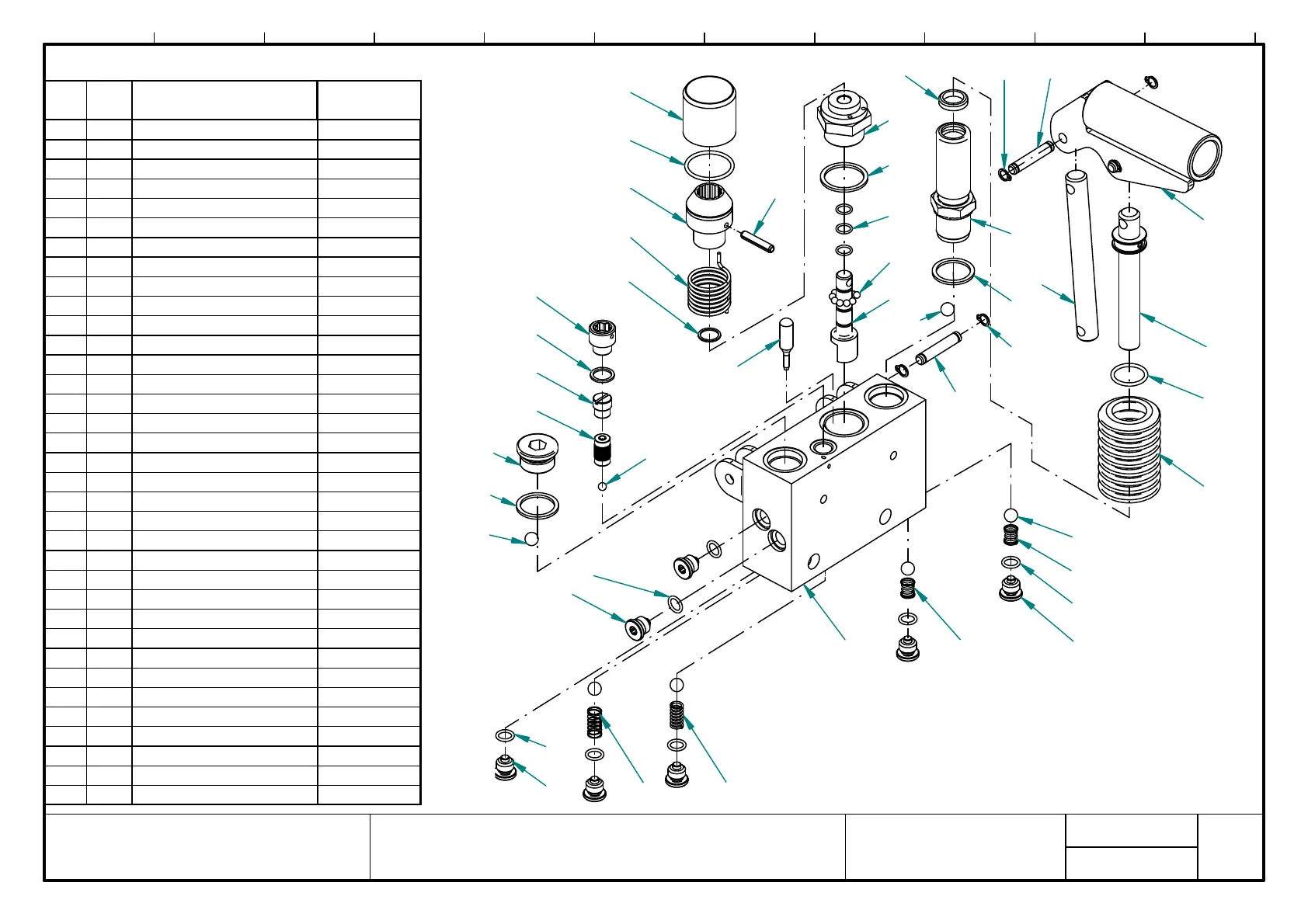

Hydr. Pumpe M 16 kpl.
s.hirth
25/02/08
Blatt 3
von 3
012345678910
Pos. Stk.
Description (en)
Order-No.
100 1 Pump body cpl. 3173100
110 1 Pump cylinder 31721106
111 1 Pump tappet cpl. 3172111
115 1 Double wiper 707961
118 6 Steel ball 10 mm 707312
119 2 Sealing ring Cu 706814
120 3 Compression spring No. 39 3173120
121 7 Locking screw 3173121
122 1 Compression spring No. 130 8505004
123 7 O-ring 707716
124 1 Locking screw 705513
125 1 Threaded plug 3173125
126 1 Sealing ring CU 706806
127 1 Set screw
4100236
128 1 Spring set cpl. 4004240
129 10 Steel ball 5 mm 707301
130 1 Steel ball 6 mm 707308
140 1 Pump collar 112480
141 1 Joint part 3170141
142 3 Pivot bolt 31611271
143 6 Retaining ring 704002
144 1 Bellow 3161144
158 1 O-ring 707616
160 1 Valve tappet cpl. 3173160
163 1 Eccentric 3173163
164 3 O-ring 707605
165 1 Sealing ring Cu 706815
166 1 Tappet guide 3173166
167 1 Leg spring No. 165 3173167
168 1 Spring pin 708207
169 1 Cover tube 3173169
170 1 Tappet cap 3173170
171 1 Sealing ring Cu 706827
179 1 O-ring 707726
199 1 Seal kit cpl. 3174199
