BlitzRotary GmbH
78199 Bräunlingen
3172000

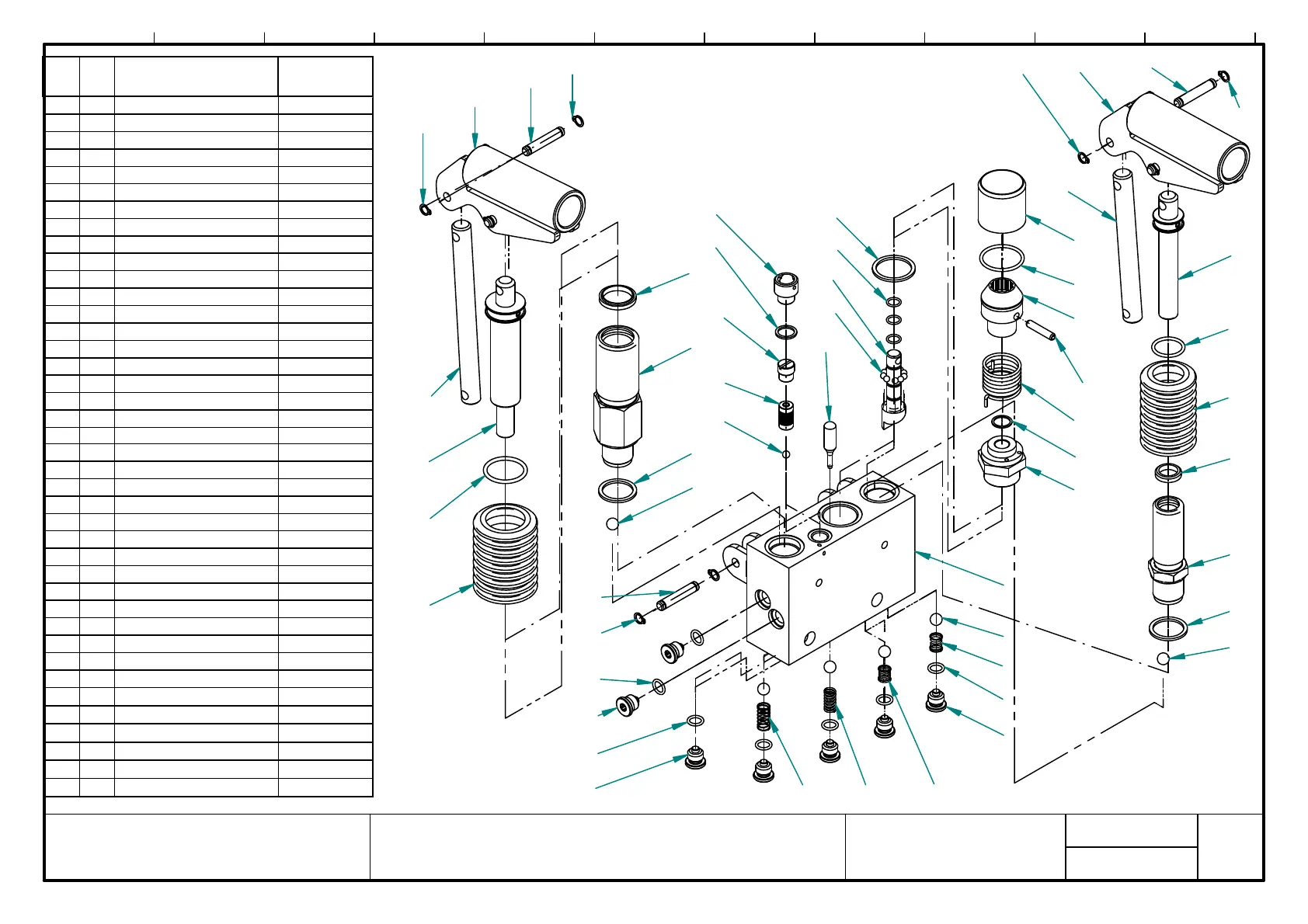

Handhydr. Pumpe M 16/25
s.hirth
25/02/08
Blatt 3
von 3
012345678910
142
144
145
141
113
110
111
146
112
100
118
121
125
160
163
166
167
169
170
140
128
127
143
126
119
165
171
130
118
164
123
158
159
115
116
168
120
123
121
140
121
143
143
142
120
142
123
120
122
179
129
143
119
143
118
Pos. Stk.
Description (en)
Order-No.
100 1 Pump body cpl. 3173100
110 1 Pump cylinder 31721106
111 1 Pump tappet cpl. 3172111
112 1 Pump tappet cpl. 3172202
113 1 Pump cylinder 31721105
115 1 Double wiper 707961
116 1 Double wiper 707962
118 6 Steel ball 10 mm 707312
119 2 Sealing ring Cu 706814
120 3 Compression spring No. 39 3173120
121 7 Locking screw 3173121
122 1 Compression spring No. 130 8505004
123 7 O-ring 707716
125 1 Threaded plug 3173125
126 1 Sealing ring CU 706806
127 1 Set screw 4100236
128 1 Spring set cpl. 4004240
129 10 Steel ball 5 mm 707301
130 1 Steel ball 6 mm 707308
140 2 Pump collar 112480
141 1 Joint part 3170141
142 6 Pivot bolt 31611271
143 12 Retaining ring 704002
144 1 Bellow 3161144
145 1 Bellow 3164244
146 1 Joint part 3172141
158 1 O-ring 707616
159 1 O-ring 707618
160 1 Valve tappet cpl. 3173160
163 1 Eccentric 3173163
164 3 O-ring 707605
165 1 Sealing ring Cu 706815
166 1 Tappet guide 3173166
167 1 Leg spring No. 165 3173167
168 1 Spring pin 708207
169 1 Cover tube 3173169
170 1 Tappet cap 3173170
171 1 Sealing ring Cu 706827
179 1 O-ring 707726
199 1 Seal kit cpl. 3172199
