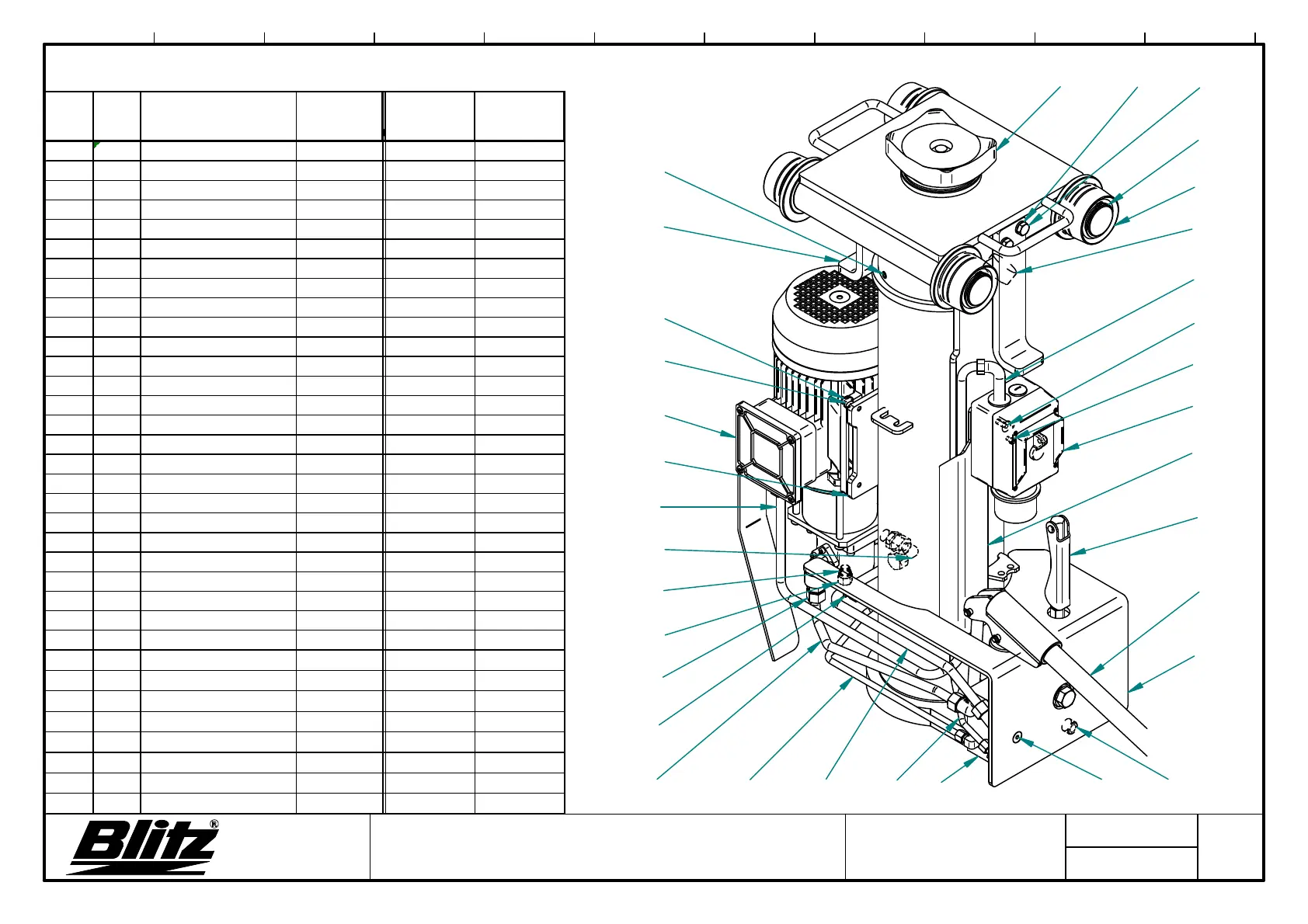

Hubeinheit kpl. GHUSE
shirth
14/05/18
Blatt 1
von 1
012345678910
BlitzRotary GmbH
Hüfinger Straße 55
78199 Bräunlingen
1
30
232
245
331
910
971
239
972
233
973
333
250
243
236
235
258
85
249
246
248247
238
234
389
900
252
253
240
251
255
254
242
Pos. Stk. Description (en)
Order-No.
10 t
o
Order-No.
15 t
Order-No.
16 / 20 / 30 t
1 Lifting unit cpl. E18041008 E18041008 E18041008
1 1 Valve body 3162001 3162001 3162001
30 1 Lever rod cpl. 31690300 31690300 31690300
85 1 Electric cable cpl. 108085 108085 108085
232 1 Cover plate 3169232 3169232 31692322
233 2 Countersunk screw 701720 701720 701720
234 2 Cylinder screw 700865 700865 700865
235 2
Ermeto coupling 752039 752039 752039
236 2 Ermeto coupling 752020 752020 752020
238 1 Reversible motor pump 111419 111419 111419
239 4 Hexagon bolt 700206 700206 700206
240 4 Disk 703411 703411 703411
242 1 Sheet metal for E switch 119957 119957 119957
243 1 Reversing switch 751794 751794 751794
245 1 Motor plate 3169245 3169245 3169245
246 0,6m Plastic tube 757001 757001 757001
247 1 Hose 330 mm long 755244 755244 7552441
248 1 Hose 410 mm long 755243 755243 7552431
249 0,4m Pipe 710606 710606 710606
250 1 Vent filter 708150 708150 708150
251 2 Sealing ring CU 706803 706803 706803
252 1 Countersunk screw 701714 701714 701714
253 2 Cylinder screw 702042 702042 702042
254 1 Reduction plug 8760120 8760120 8760120
255 1 Ermeto coupling 752139 752139 752139
258 1 Angle cable gland 762006 762006 762006
331 4 Universal roller 123970 33253311 36263311
333 4 Retaining ring 704022 704028 704029
389 1 Locking screw 701601 701601 701601
900 1 Pump rod 3320900 3320900 3320900
910 1 Support plate X 3325910 3325910 3326910
971 2 Safety angle 3324971 3325971 3325971
972 4 Hexagon bolt 700211 700211 700211
973 4 Spring washer 703514 703514 703514
