Blitz GHUSE Series - Page 35

BlitzRotary GmbH
78199 Bräunlingen
3162001

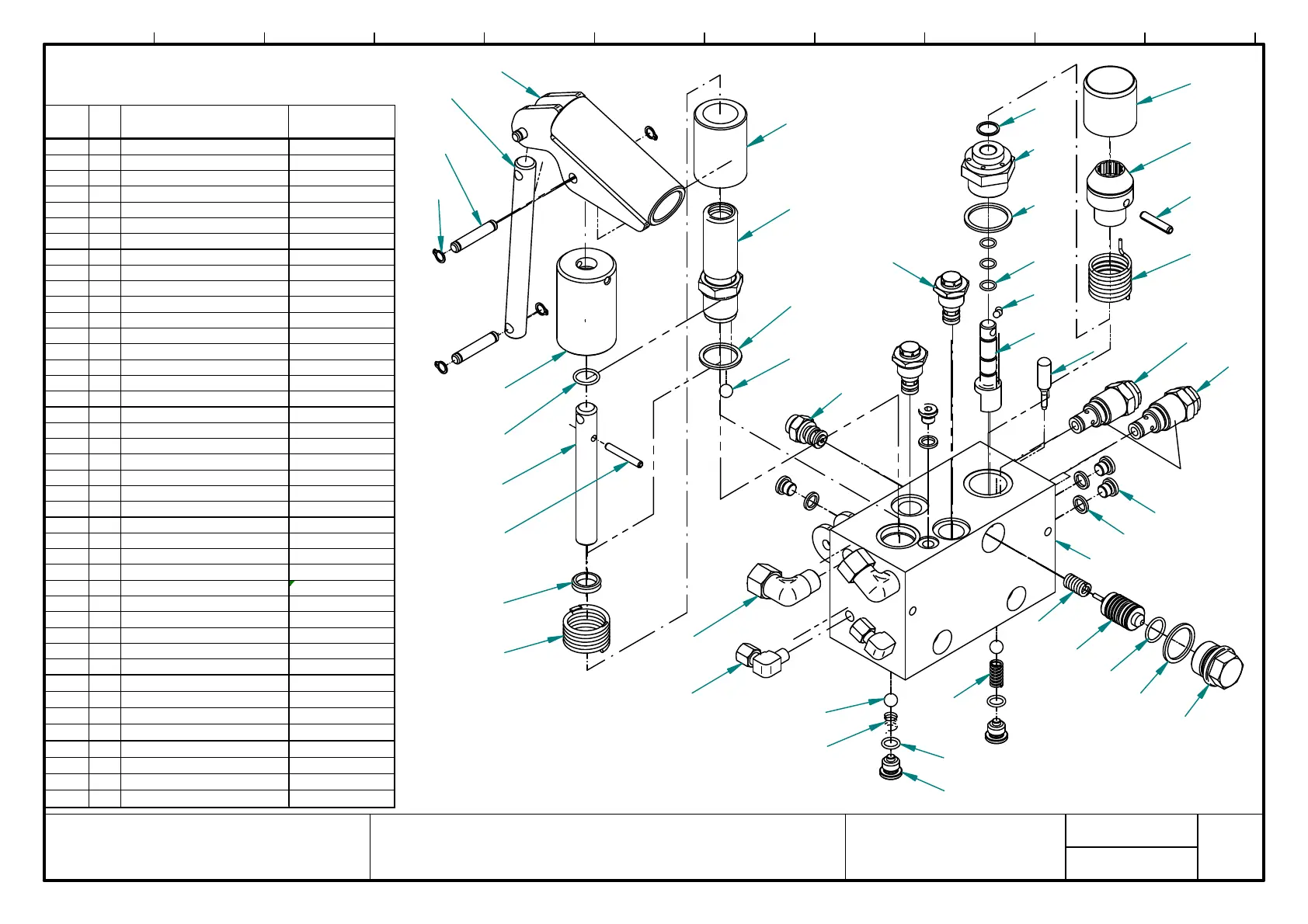

Ventilkörper Elektrogrubenheber 3KW
s.hirth
25/02/08
Blatt 3
von 3
012345678910
Pos. Stk.
Description (en)
Order-No.
100 1 Valve body 31621001
101 1 Locking screw 705527
102 2 Sealing ring Cu 706814
103 2 O-ring 707756
105 1 Piston cpl. 3169105
106 1 Compression spring No. 194 3180106
109 1 Pressure limiting valve 751796
110 1 Pump cylinder 31721106
111 1 Pump tappet 3179112
114 2 Non-return valve 751790
115 1 Double wiper 707961
118 3 Steel ball 10 mm 707312
120 1 Compression spring No. 39 3173120
121 2 Locking screw 3173121
122 1 Compression spring No. 130 8505004
123 2 O-ring 707716
124 4 Locking screw 705517
125 4 Sealing ring Cu 706801
126 2 Ermeto coupling 752020
127 2 Ermeto coupling 752111
128 1 Non-return valve 751798
129 9 Steel ball 707301
130 1 Pressure limiting valve 751797
135 1 Spring No. 186 3649135
136 1 Spring guard 3649136
137 1 Stop ring 3649137
139 1 Spring pin 708247
140 1 Pump collar 112480
141 1 Joint part 3161126
142 3 Pivot bolt 31611271
143 6 Retaining ring black 704002
160 1 Valve tappet cpl. 3173160
163 1 Eccentric 3173163
164 3 O-ring 707605
165 1 Sealing ring Cu 706815
166 1 Tappet guide 3173166
167 1 Leg spring 3173167
168 1 Spring pin 708207
169 1 Cover tube 3173169
170 1 Tappet cap 3173170
171 1 Sealing ring Cu 706827
199 1 Seal kit electric pit lift 104181
141
142
100
105
110
120
121
160
163
166
167
169
170
140
111
106
135
136
137
143
124
101
125
102
165
171
118
164
123
103
115
168
139
114
109
130
128
126
127
122
102
118
103
129
Achtung !
Max. Anzugs-
moment 25 Nm
