SBC-ID Installation
Use caution on Installation
* Be aware to make sure that the installation on valve unit is correct
on in and out ports.
* Check for pressure leaks in hoses.
* Cut hoses straight down and not in an angle.
* Check and make sure that hoses are clamped tight for no leakage.
* Keep the rubber hoses away from heat sources such as the
exhaust manifold and etc.
* Keep the valve unit and hoses away from moving parts.
* Some vehicles may need a boost and fuel cut device.

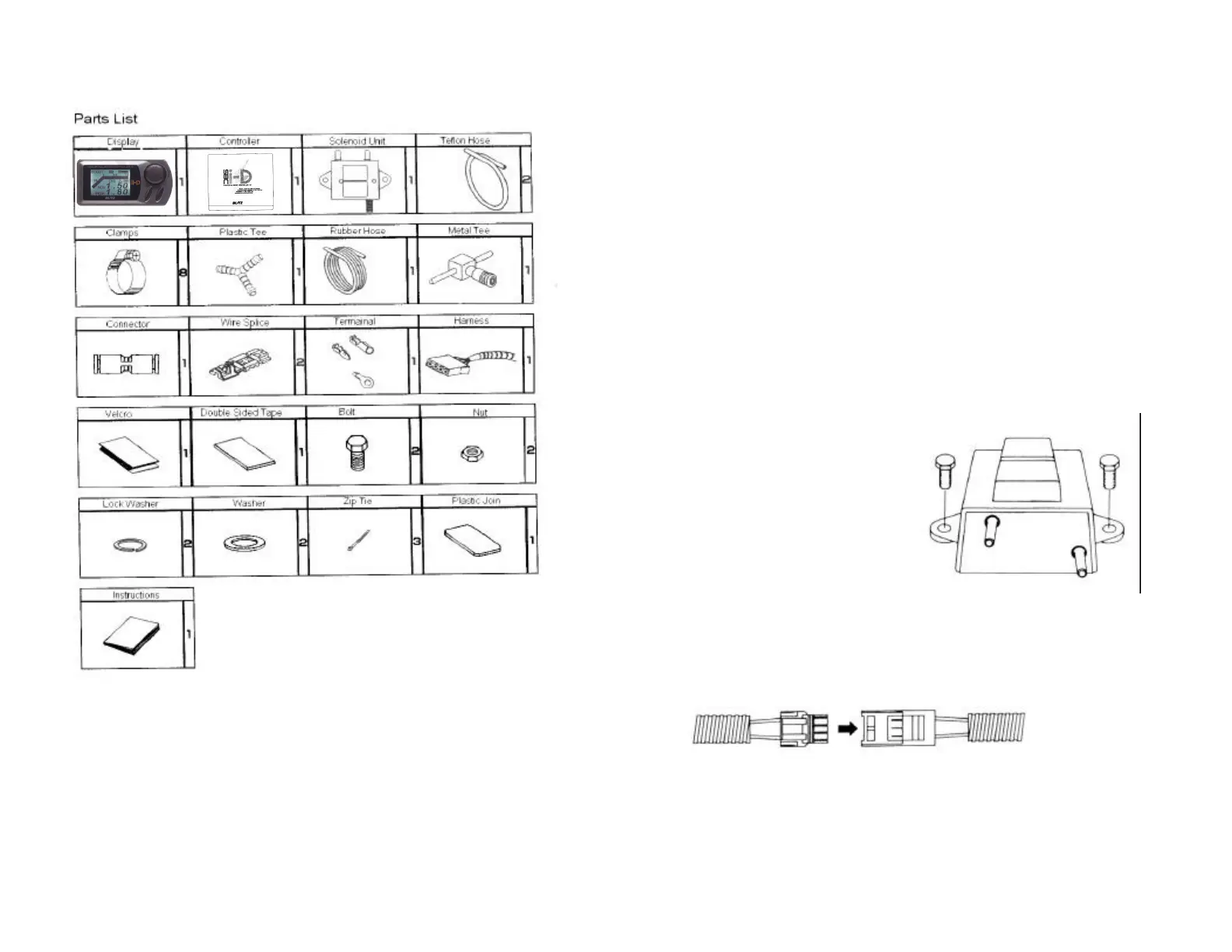

Installation of valve unit
* Keep the valve unit away from
hot components but keep within
three feet from the turbo.
*
: more than three feet
away from the turbo can cause
bad response with boost surge
or boost spike.
* Use hose enlargement adapter to
connect hose to valve unit and use
hose clamp to prevent leakage.
* Connect main wiring harness to
valve unit.
* Connect main wiring harness to controller.
* Connect display to controller.
keep hands away from hot engine components. Install
when entire engine bay has cooled. Turbo may still be hot even after
engine has cooled.
