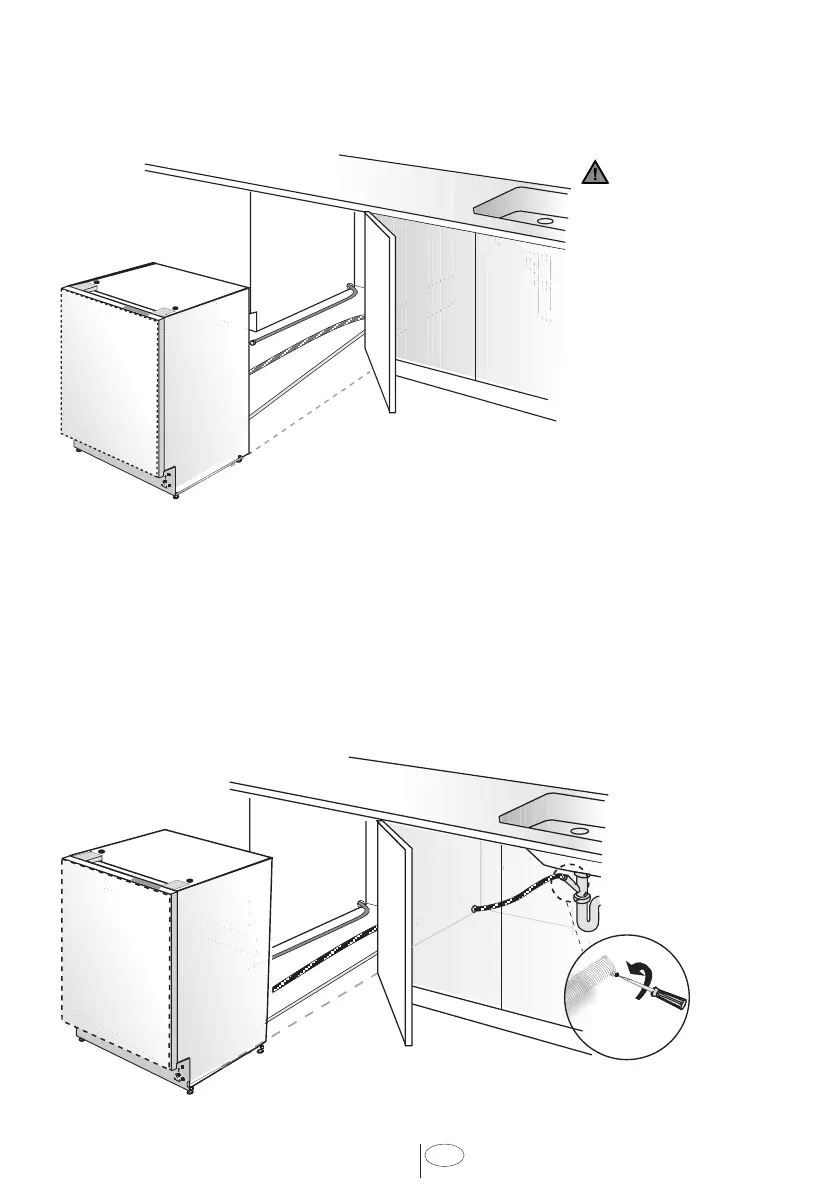

7. PLACEMENT OF DISHWASHER INTO THE OPENING
Now place the dishwasher into the opening and get ready to connect all hoses and
electrical connections.
CAUTION
Make sure all hoses
are pulled through the
side opening of the
cabinet, no hoses are
kinked and all slack is
taken out as shown in
the above gure.
7.1 DRAIN HOSE CONNECTION, WATER SUPPLY & ELECTRICAL
CONNECTIONS
7.1.1 DRAIN HOSE CONNECTION
Connect the drain hose to the drain plumbing.
1. Use the supplied rubber connection hose and drain hose clamps to connect the
dishwasher drain hose to the plumbing drain connection.
2. Use the spring clamp to secure the rubber connection hose to the dishwasher drain
hose. Use the screw clamp to secure the rubber connection hose to the plumbing drain
connection.
Note that the marks
on the rubber
connection hose
should be on the drain
hose side
