BLOWTHERM SIMPLEX 35 - Technical Data

FLOOR STANDING WATER BOILERS
MOD. SIMPLEX
n.1460080EN 07-2009
5

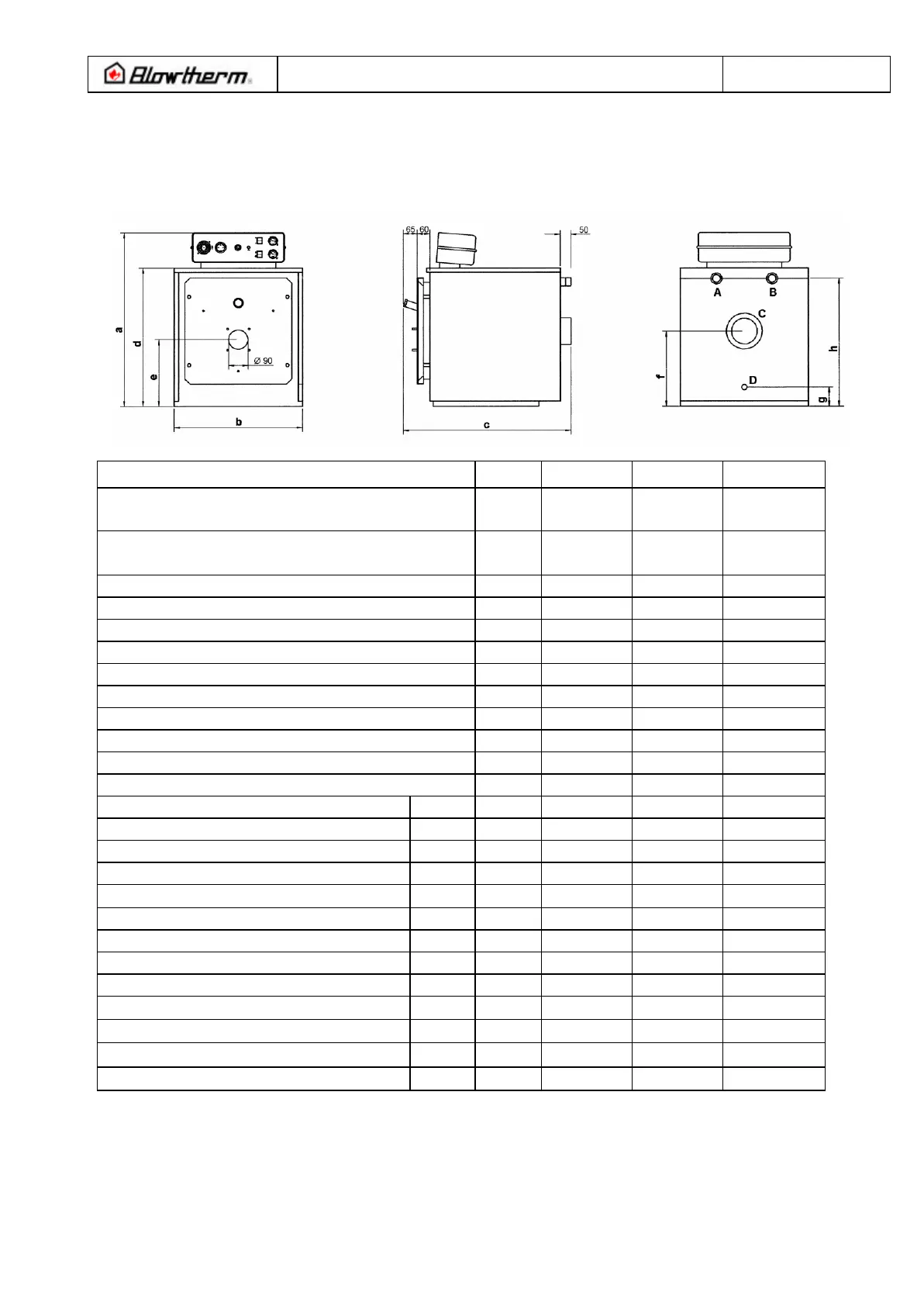

2.1 TECHNICAL DATA
35 50 80
Nominal capacity
kW
kcal/h
31,8
27350
47,0
40450
76,4
65704
Furnace capacity
kW
kcal/h
34,5
29650
51,0
43850
82,5
70950
Efficiency at nominal charge % 92,2 92,2 92,5
Efficiency at reduced charge (30%) % 89,6 89,6 89,6
Max working temperature °C 90 90 90
Max working pressure bar 3 3 3
Combustion’s chamber lenght mm 400 490 540
Combustion’s chamber volume dm
3
27.2 35,8 53,3
Smoke discharge mm 127 127 127
Smoke’s exit temperature °C 153 153 156
Combustion chamber pressure Pa 40 45 50
Electrical feed V / Hz 230 / 50 230 / 50 230 / 50
Height a mm 815 815 935
Lenght b mm 600 600 650
Deepness c mm 785 985 985
d mm 650 650 770
e mm 310 310 340
f mm 355 355 395
g mm 80 80 80
h mm 600 600 700
Weight kg 112 122 168
Plant return A
∅
1"1/4 1"1/4 1"1/4
Plant delivery B
∅
1"1/4 1"1/4 1"1/4
Smoke discharge C
∅
127 127 127
Boiler discharge D
∅
3/4" 3/4" 3/4"
