SERVICE@BLUDOT.COM | 8ASSEMBLY NOTES

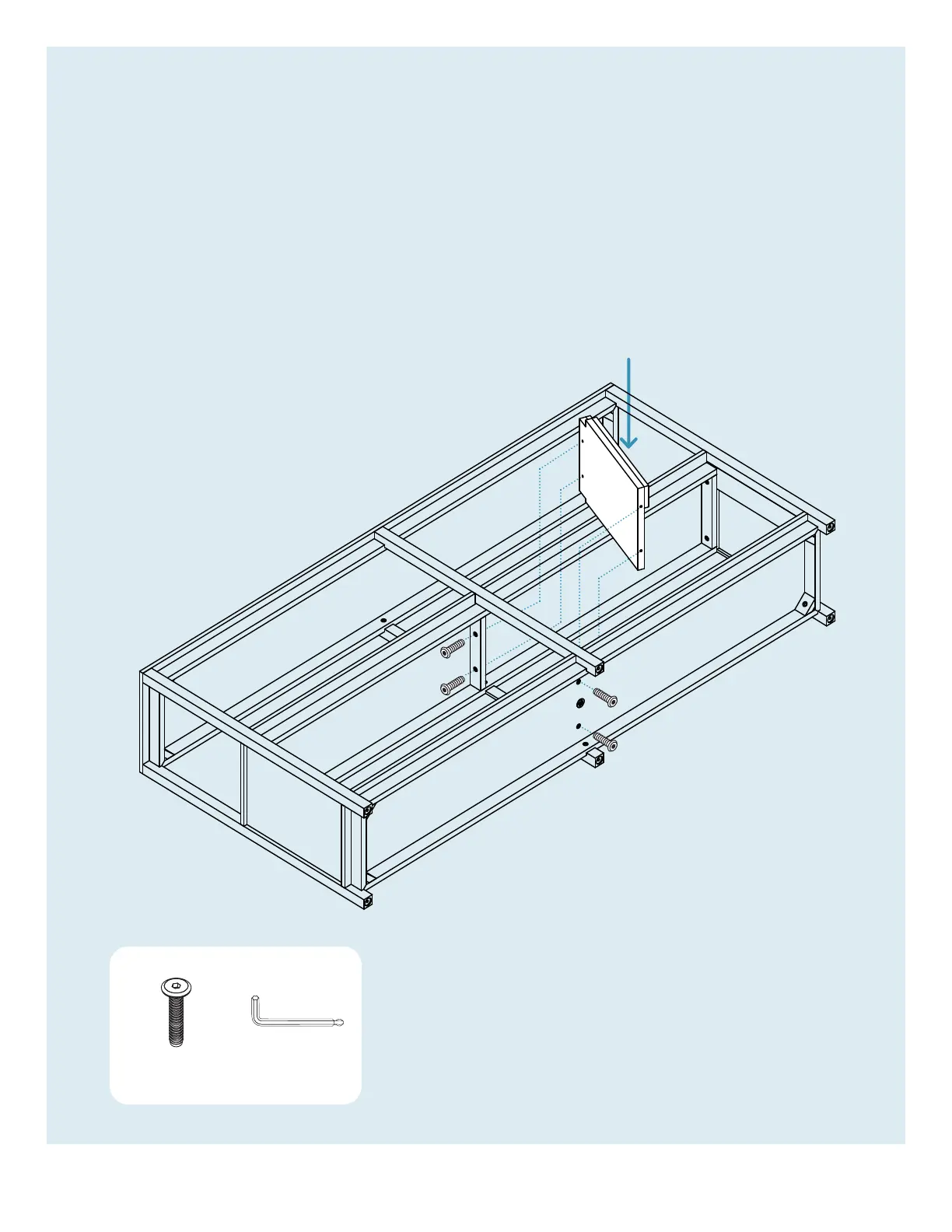

Step 06
ATTACH PARTITION PANEL.
Insert partition panel inside the bookcase
at an angle as shown. Attach the side
frames using the hardware provided.
Tighten bolts that were installed in
previous steps.
PT. 1695 x 4
PT. 9016 x 1
