SERVICE@BLUDOT.COM | 2ASSEMBLY NOTES
PT. 5005 x 4
8029
5/16’’ x 75mm
PT. 8029 x 6* PT. 5007 x 10*
8029
5/16’’ x 75mm
8029
5/16’’ x 75mm
8029
5/16’’ x 75mm
8029
5/16’’ x 75mm
8029
5/16’’ x 75mm
8029
5/16’’ x 75mm
* 95” Dining Table
has additional
hardware connection

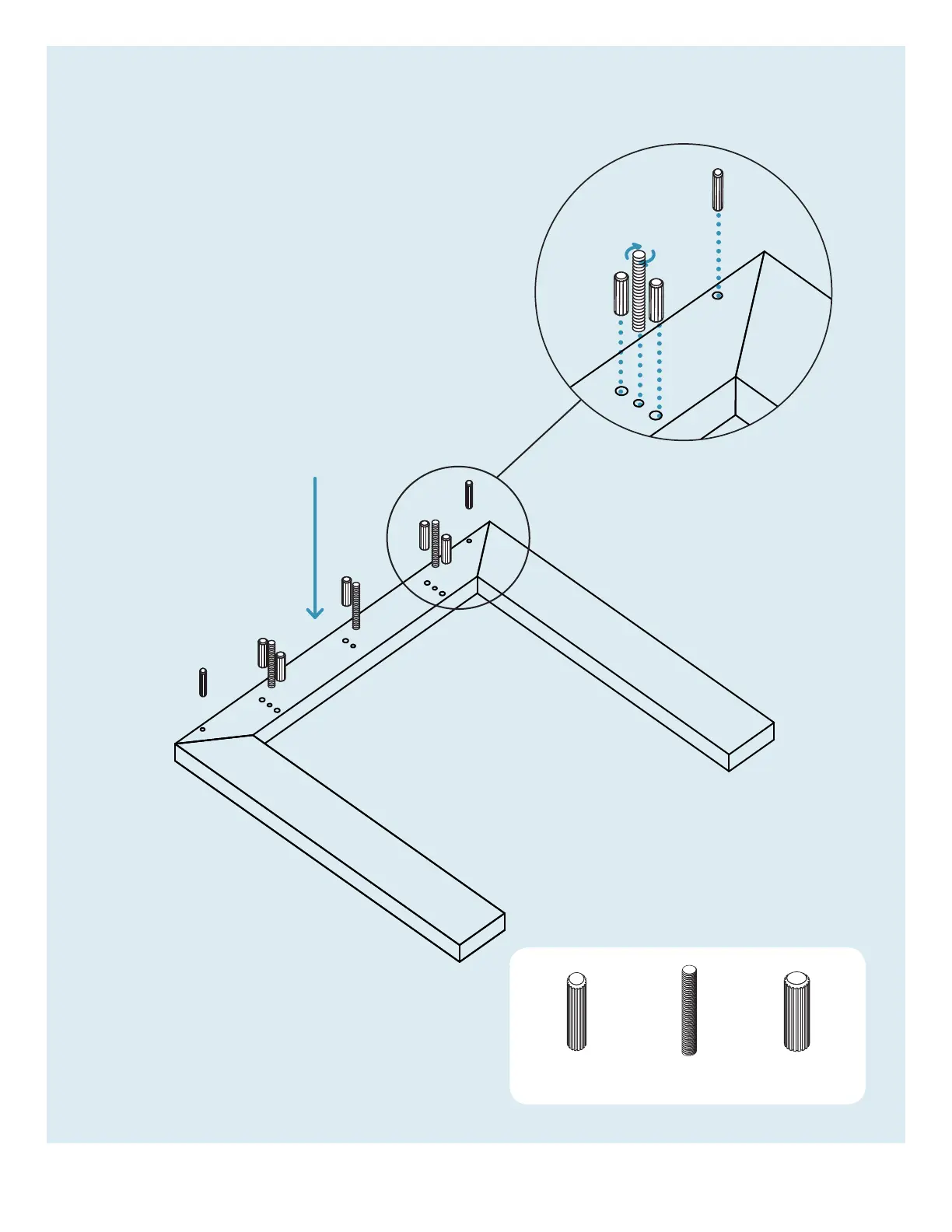

Step 01
INSTALL LEG FRAME HARDWARE.
Install provided hardware as shown. Repeat
for remaining leg frame.
