Blue Diamond Post Driver - Page 26

26
Parts

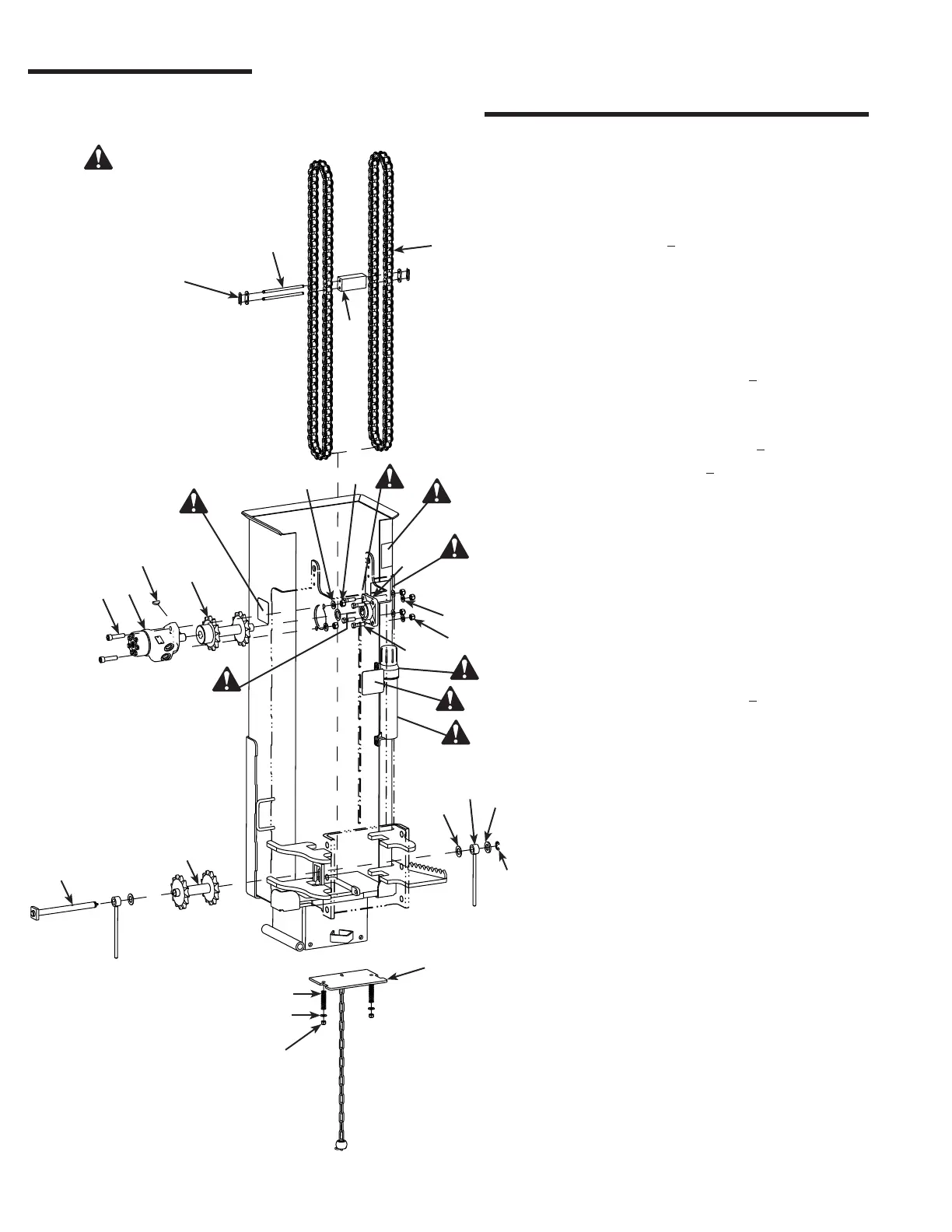

Drive Assembly
= Safety Sign
Location
REF.
NO.
PART
NO. DESCRIPTION QTY.
1
200025 Connecting Link 2
2
200030 Chain Pin 2
3
200020 Roller Chain #80, 1" Pitch 2
4
200040 Catch Weight 1
5 21126 Socket Head Bolt
(1/2"
13 x 2")
2
6
200000 Hydraulic Motor 1
7 21281 Woodruff Key 1
8 21114 Upper Sprocket Shaft
Assembly
1
9 21156 1/2" Flat Washer 2
10 10125 Toplock Nut (1/2"
13) 2
11 21043 Bearing 1
12 2489 7/16" Flat Washer 4
13 10197 Toplock Nut (7/16"
14) 4
14 21057 Bolt (7/16"
14 x 1-1/2") 4
15 21040 Sprocket Shaft 1
16 21080 Lower Sprocket Shaft
Assembly
1
17 21125 Shim 2
18 21083 Tensioning Rod 2
19 10267 3/4" Flat Washer 1
20 2172 Retaining Ring 1
21 21123 Spring 2
22 2178 3/8" Flat Washer 2
23 10412 Toplock Nut (3/8"
16) 2
24 21110 Cover Assembly 1
1
2
3
4
5
6
8
9
10
11
12
13
17
18
19
20
24
23
15
16
21
22
14
7
