Blue Diamond Post Driver - Accessories

32
Accessories
PN 21220-1
PN 21220-2
PN 21220-3
PN 21220-4
PN 21220-5
*PN 21220-U1
*PN 21220-U2
- 8-Pin (Allows tilt function operation from joystick controls.)
Used on ASV, Caterpillar, Komatsu, and Terex.
- 14-Pin (Allows tilt function operation from joystick controls.)
Used on Bobcat (prior to 1999), Case, Kubota, New Holland,
Takeuchi, and Volvo.
- 14-Pin Deere (Allows tilt function operation from joystick
controls.) Used on John Deere.
- 14-Pin Caterpillar (Allows tilt function operation from joystick
controls.) Used on Caterpillar.
- 14-Pin (Allows tilt function operation from joystick controls.)
Used on Bobcat (1999 and current) and Gehl.
- 8-Pin (Allows tilt function operation from joystick controls.)
Universal wiring harness. Contacts are crimped on wire but not
installed in connector.
- 14-Pin Caterpillar (Allows tilt function operation from joystick
controls.) Universal wiring harness. Contacts are crimped on
wire but not installed in connector.
T
-post Adapter

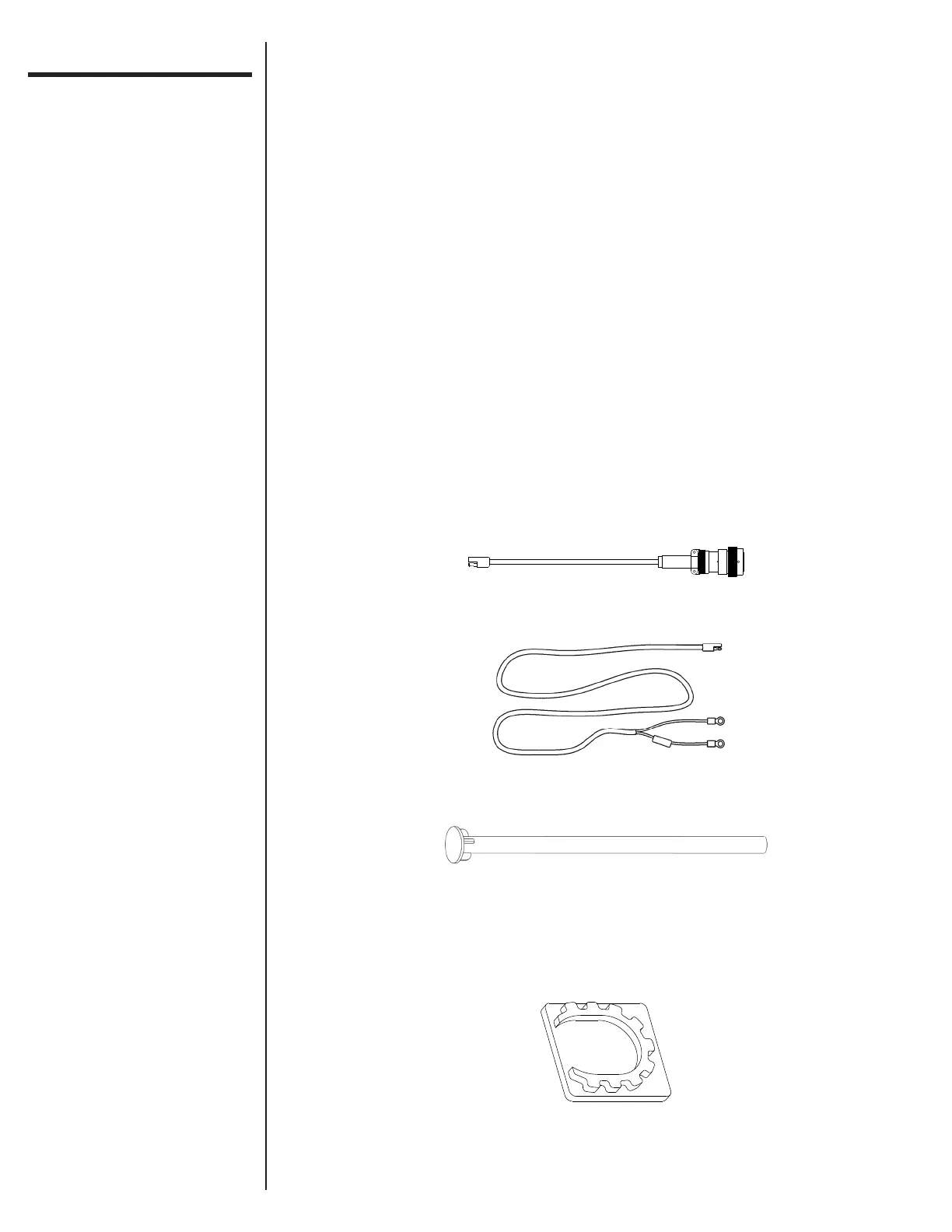

PN 200004 - Must be added for driving T-posts
Additional Weight Kit (not shown)
PN 21163 - Adds 200 lbs. to machine weight for 60% more impact force
Wiring Harness Options
PN 21253 - Connects to battery terminals for alternative power connection for Post
Driver models with tilt
Blue Diamond takes care to ensure the accuracy of the information contained in this manual.
We assume no liability for errors contained herein. It is the responsibility of the installer to
ensure that all of the products are correct before installation. Proper assembly always requires
that the installer use all instructions and safety procedures. We assume no liability for any
errors made in product selection or installation.
* Requires connector contacts be installed in a switchable +12 volt pin location and ground
pin location. Mapping of skid-steer connector pins required.
Horseshoe Strike Plate
PN 200005 - Recommended for driving smaller diameter pipe/posts (less than 4"
O.D.) in di icult conditions. Aids in keeping the pipe/post centered in the driver
and reduces wear and tear on machine. Works with pipe/post 5" diameter and
smaller and with T-post adapter.
