Blue Diamond Post Driver - Page 31

31

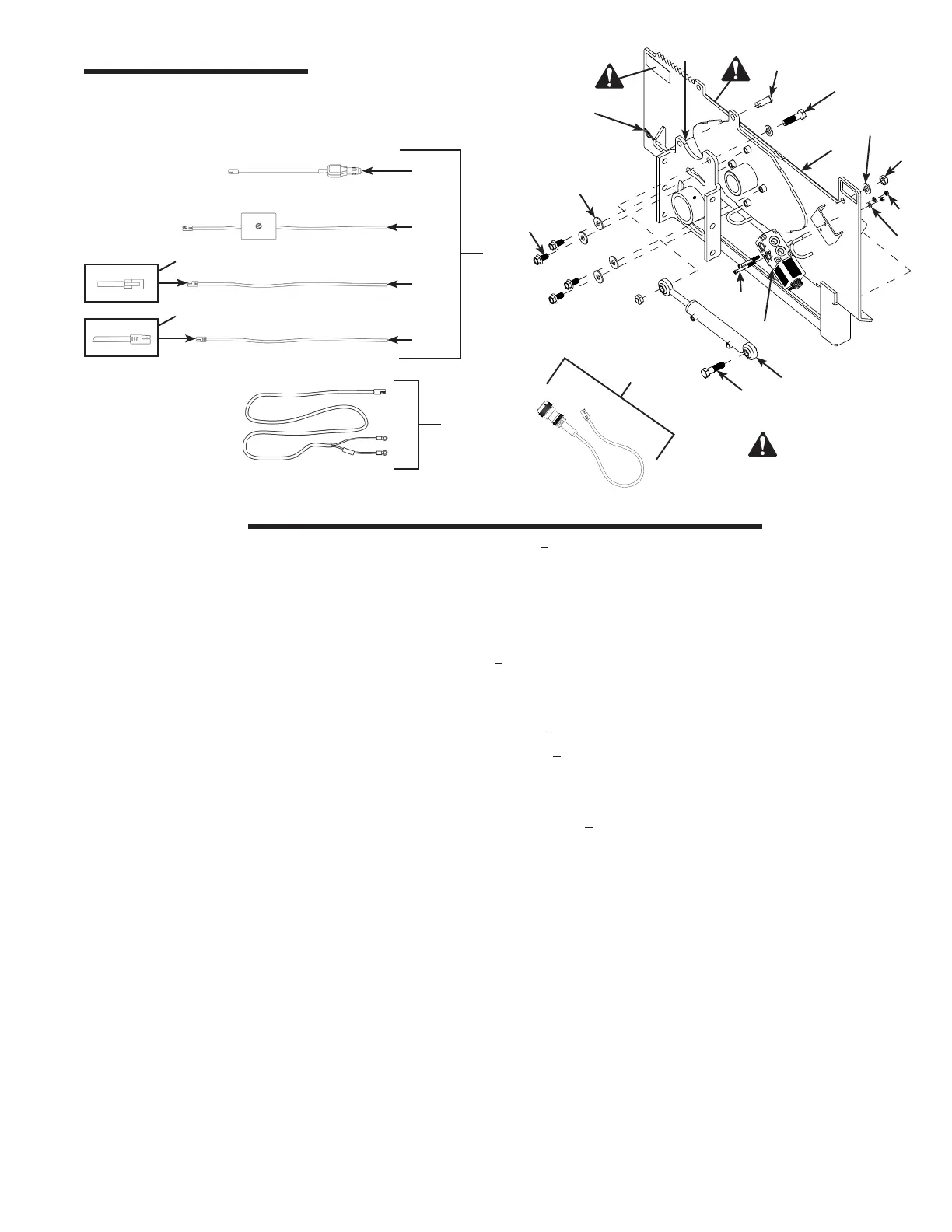

Parts
Tilt
= Safety Sign
Location
REF. NO. PART NO. DESCRIPTION QTY.
1 21108 Flange Bolt (5/8"
11 x 1-1/4", Gr. 8) 4
2 21107 5/8" Large Flat Washer 4
3
200006 Rue Clip 1
4 21100 Tilt Bracket 1
5 21134 Clevis Pin 1
6 21106 Bolt (3/4"
10 x 2-3/4") 2
7 21094 Quick Attach Plate 1
8 10267 3/4" Flat Washer 2
9 10268 Toplock Nut (3/4"
10) 2
10 21159 Toplock Nut (5/16"
18) 2
11 6339 5/16" Flat Washer 2
12 21128 Diverter Valve 1
13 21158 Socket Head Bolt (5/16"
18 x 3") 2
14 21103 Hydraulic Cylinder 1
15 Wiring Harness 1
16 Wiring Harness 1
16a Wire - 12V Auxillary Power 1
16b Wire - Control Switch 1
16c Wire - Solenoid 1
16d Wire - Extension 1
17
*21220
200010
21343
21344
21345
21346
*21253
Wire - Battery Terminal Connection 1
1
2
3
4
6
5
7
8
9
10
11
12
13
14
6
16
16a
16b
16c
16d
17
15
* For full description, see Accessories section of manual.
Opposite end wire connection.
Opposite end wire connection.
