Setting Input Thresholds
Settings for each channel’s high and low tank thresholds are provided. The connected relay’s normal operating state will toggle (change state) if these
thresholds are met. For both high and low thresholds, the activation and deactivation levels are different to prevent the relay from rapidly toggling
(cycling on and off). Each channel has Hi ON and Hi OFF settings and Lo ON and Lo OFF settings.

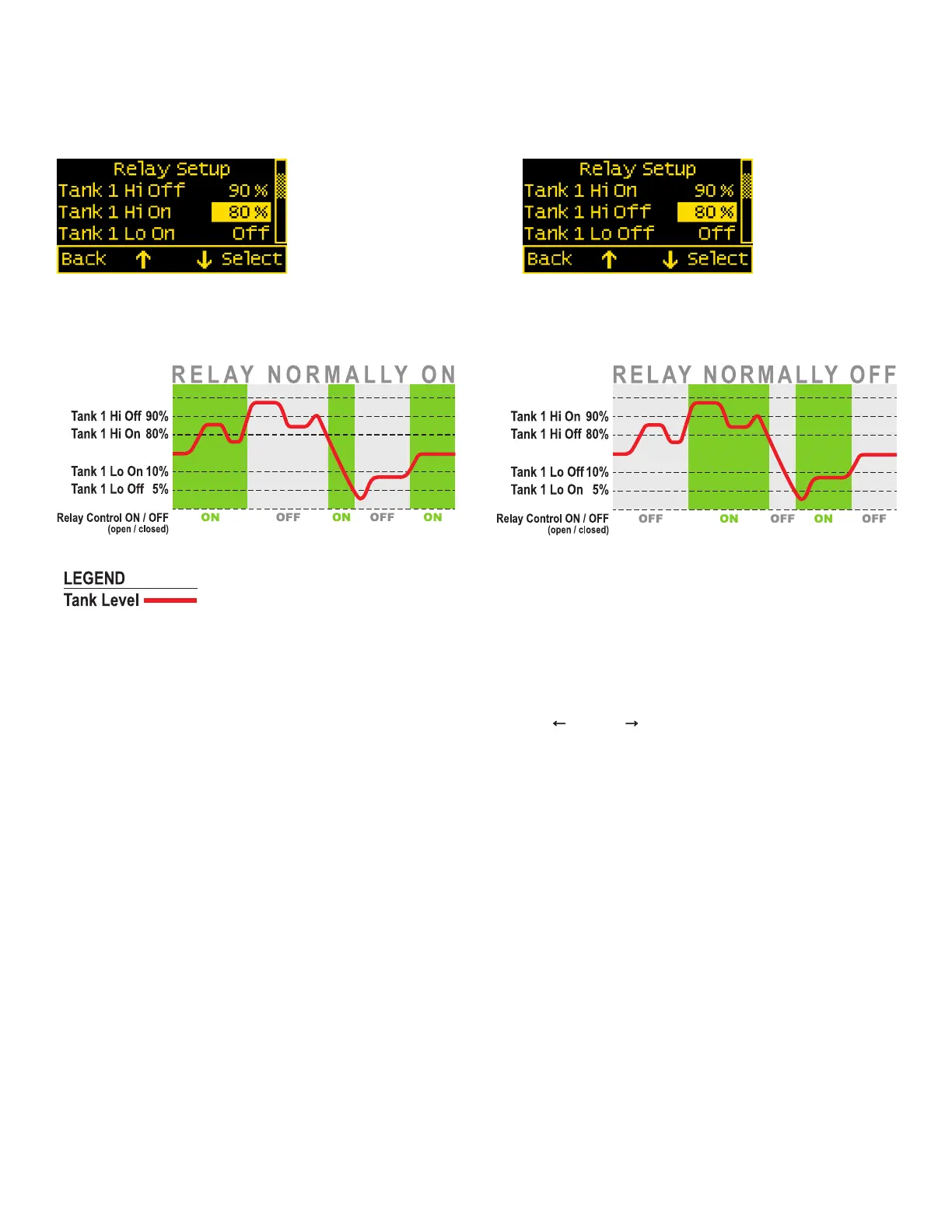

Relay Setup Screen with Relay Normally = Off (Open)
Relay Setup Screen with Relay Normally = On (Closed)
Example. If the relay is Normally On (closed) and Tank 1 is congured as above, then it will open at the user input threshold value for Tank 1 (90%).
To close, the level must drop below the User’s input value for Tank 1 On (80%). Similarly, the relay will open at the User input for
Tank 1 Lo Off (5%). The level must meet the User input for Tank 1 Lo On to close the relay.
To change one of the settings, scroll to desired setting and press Select. Press the LEFT ← or RIGHT → arrow buttons to change the tank value
and then press Enter to save the setting. Press Cancel to cancel the change.
NOTE: Lower threshold settings cannot be set above higher tank threshold settings. Similarly, higher tank thresholds cannot be set below lower
tank thresholds. The meter will automatically increase or decrease the tank thresholds to enforce this.
