blueberry PLUS R2 Installation Manual 3.0 31

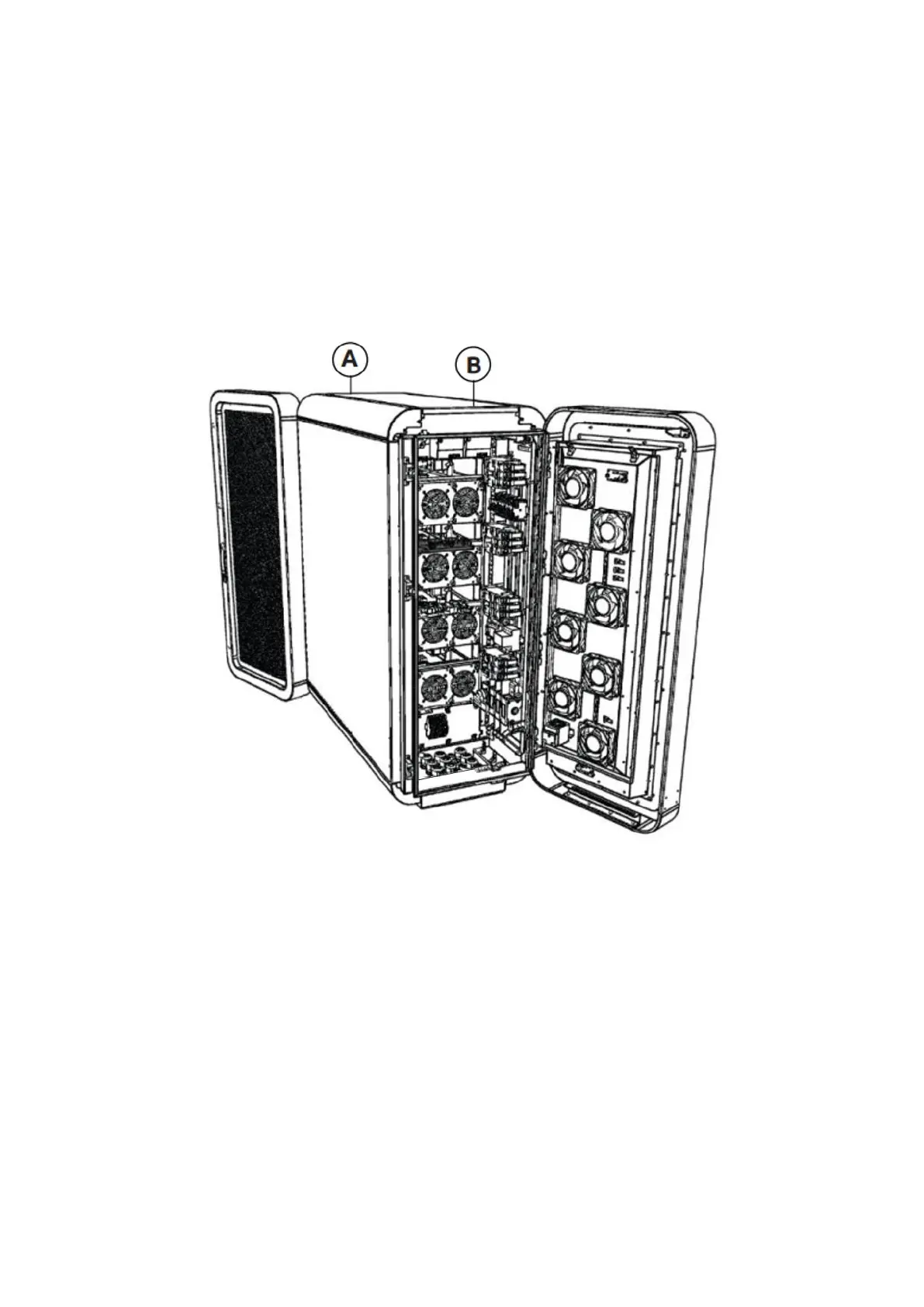

6.2. Power Unit
TOOLS:
FASTENERS:
▪ Ratchet Wrench size 8, 13 and 18
▪ Wire stripper pliers
▪ Crimping pliers
▪ Screwdriver
▪ Phase sequence meter
▪ 3 x M10 Hexagon Nuts
▪ 3 x M10 Washers
▪ 8 x M8 Hexagon Nuts
▪ 8 x M8 Washers
▪ 1 x M8 x 20 screw
▪ 1 x M6 Washers
▪ 8 x M6 x 20 screw
▪ 9 x Insulated single end terminals,
1,5 mm² (16 AWG)
▪ 1 x M6 Ring terminal, 95mm² (3/0 AWG)
▪ 8 x M8 Ring Terminal, 120mm² (4/0 AWG) or
according to DC cables cross section
▪ 3 x M10 Ring Terminal, 150mm² (300 MCM)
